30 Tons DN2700mm Q345R LPG Storage Tank For Gas Cylinder Filling Plant

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

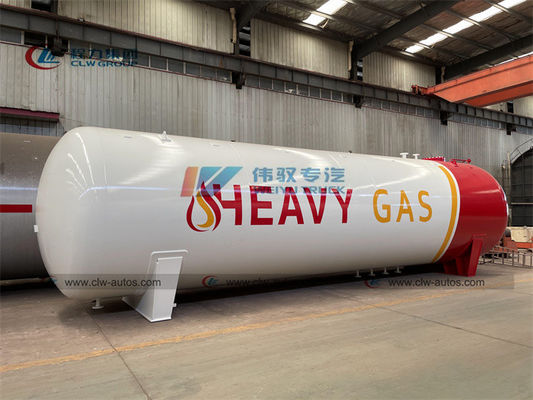

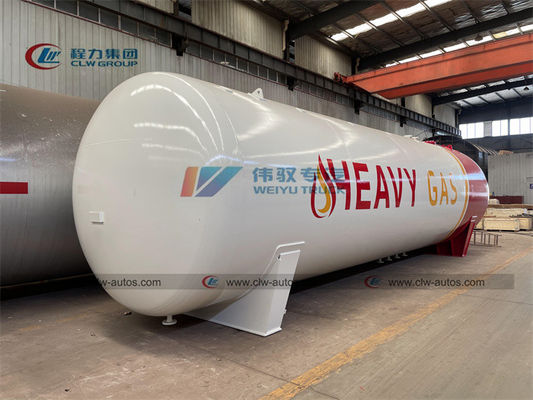

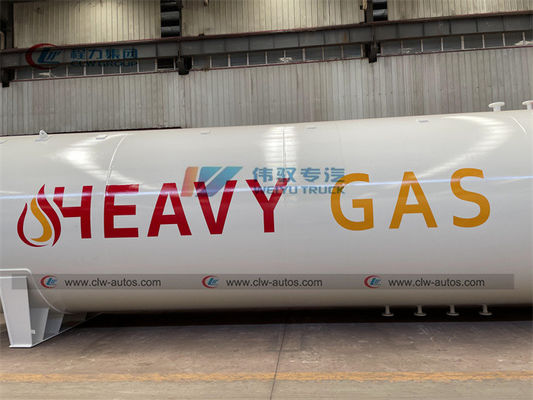

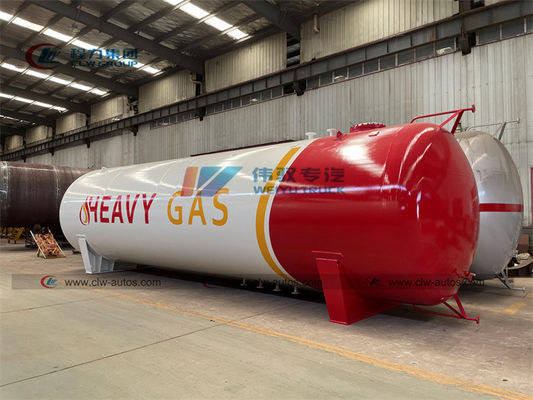

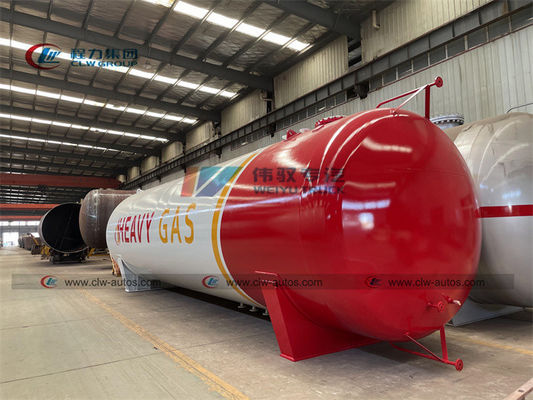

30 Tons DN2700mm Q345R LPG Storage Tank For Gas Cylinder Filling Plant

30 Tons DN2700mm Q345R LPG Storage Tank For Gas Cylinder Filling Plant
30 Tons DN2700mm Q345R LPG Storage Tank For Gas Cylinder Filling Plant

Large Image :  30 Tons DN2700mm Q345R LPG Storage Tank For Gas Cylinder Filling Plant

Product Details:

Place of Origin: Suizhou, China
Brand Name: CLW
Certification: CLW9520cx
Model Number: ASME,CCC,SGS,BV

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: negotiable
Packaging Details: Naked Package,Bulk Ship,Roll-Roll
Delivery Time: 20~30 days after receiving deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 Units/Month
Detailed Product Description
Size Option: 40m3,50m3,60m3,70m3,80m3,100m3,120m3 Materail: Carbon Steel Q345R
Filling Medium: Propane,butane Tank Diameter: DN2700mm
Design Pressure:: 1.77Mpa Level Gauge: China Brand Megnatic Type Or US Brand Rocheseter
Tank Valves: Cut-off Valve, Needle Valve, Safety Valve, Return Valve Etc.. LOGO: As Per Request
Service Time: 15 Years
High Light:

30 Tons LPG Storage Tank

,

DN2700mm Q345R LPG Storage Tank

,

DN2700mm LPG Gas Cylinder Filling Plant

30tons LPG Storage Tank LPG Cooking Gas Cylinder Plant for Zimbabwe

Product Description



1. Storage medium of lpg gas plant tank : LPG, Liquid ammoina,Dimethyl ether,Iso-butane,Pentane and etc.

2. Tank sizes:5,000L, 20,000L, 30,000L, 40,000L, 50,000L, 60,000L, 80,000L, 100,000L, 120,000L etc.

3. Manufacturing standards of lpg gas plant tank : GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008

4. Tank basic accessories included: valves, level meter, thermometer, pressure gauge etc.

5. Optional for lpg gas plant equipments as follows, lpg pump and motor,lpg compressor,volume flow meter,filling scales and lpg dispenser,ball valves,check valves,non-return valves,glass valve,strainer,by-pass valve and so on.

6. Maintenance-free operation with simple calibration and proof testing.

7. 20 years guarantee against manufacturing defects.



Parameter of 60000liters 30tons filling station gas tank
ITEM PARAMETER ITEM PARAMETER
Volume 60cbm Thickness of Shell 14mm
Tank Material Q345R Thickness of End plate 16mm
Overall Size 10962*2728*3318mm Tank Net Weight 12750kg
Tank Diameter 2700mm Loading Capacity 23940kg
Design Pressure 1.77Mpa Gas Density 420kg/M3
Hydraulic Test Pressure 2.22Mpa Corrosion Allowance 1mm
Design Temperature -20ºC~60ºC Heat Treatment Bulk
Vapor Outlet DN50 Gas Outlet DN50
Life time 15 years
Accessories
Model Item Qty Junction surface
J41N-2.5-50 Stop Valve DN50 6 RF
J41N-2.5-25 Stop Valve DN25 2 RF
J41N-2.5-100 Stop Valve DN100 1 RF
J24W-320-DN6 J24W Needle Valve M20*1.5 1
HG21584-95 Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5 1 RF
A42F-25-100 Safety Valve DN100 1 RF
Y-100T Pressure Gauge M20*1.5 1.5degree 0~4Mpa 1
WTQ-280 Thermometer M33*2 2.5 degree 1 -40ºC~60ºC



LPG filling station design



30 Tons DN2700mm Q345R LPG Storage Tank For Gas Cylinder Filling Plant 030 Tons DN2700mm Q345R LPG Storage Tank For Gas Cylinder Filling Plant 130 Tons DN2700mm Q345R LPG Storage Tank For Gas Cylinder Filling Plant 230 Tons DN2700mm Q345R LPG Storage Tank For Gas Cylinder Filling Plant 3


Key words: 30tons LPG storage tank, LPG Tank,Cooking gas plant
