| Tank Material: | Q345R Q370R Q420R Carbon Steel For Pressure Vessel | Loading Capacity: | 20 TONS, 25 TON, 30 TONS, 40 TONS, 50 TONS, 60 TONS |
|---|---|---|---|
| Tank Size: | 50 M3, 50cbm, 50000liters, 50000L | Design Pressure: | 1.71MPa 1.77MPa 17.1bar, 17.7bar |
| Hydraulic Test Pressure: | 2.21MPa 22.1bar | Filling Medium: | Propane, Butane, LPG, Cooking Gas |
| Level Gauge: | Magnetic Plate Level Gaue, Float-Ball, Rotor Level Gauge | Diameter: | 3100mm, 3300mm |
| TONS: | 50000L, 50cbm, 50000liters, 50m3, 25tons, 25ton | Tank Type: | Under Ground. Underground. |
| High Light: | 25T LPG Gas Storage Tank,20T LPG Gas Storage Tank,50000L LPG Gas Tank |
||
50000L 25 tons 25T 20ton 25ton Below Ground LPG Propane Mounted Under ground LPG Gas Storage Tank
Product Description
1. Storage medium of LPG Stationary Storage Tank : LPG, cooking gas,propane gas,Liquid ammoina,Dimethyl ether,Iso-butane,Pentane and etc.
2. Available tank capacity of LPG Stationary Storage Tank : 5m³~200m³,2ton~100tons
3. Manufacturing standards of lLPG Stationary Storage Tank : GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008
Liquefied petroleum gas storage tanks include compressed gas or liquefied gas storage tanks. Liquefied petroleum gas storage tanks can be divided into fixed volume storage tanks and active volume storage tanks according to the volume change of containers. Large fixed volume LPG storage tanks It is made into a spherical shape, and the small one is made into a cylindrical shape. The active volume storage tank is also called the low-pressure gas storage tank. It is commonly called the gas cabinet. Its geometric volume can be changed, tightly sealed, no gas leakage, and the balance of air pressure and the adjustment of gas supply. The pressure generally does not exceed 60MPa.
1. LPG Tank Storage Content: LPG Gas, Propane, Butane, Liquid Ammonia, etc
2. Tank Design Standard: GB150-2013, ASME Standard with U STAMP.
3. Test: 100% Radiaographic Test, Magnetic Power Test, Water Pressure.
4. lpg storage tank capacity
5,000l , 10,000l, 15,000l, 20,000l, 25,000l, 30,000l, 35,000l, 50,000l, 80,000l, 100,000l . 120,000l, 150,000l, 180,000l, 200,000l.
5. lpg storage tank material
Q345R Q370R SA516
6. lpg storage tank prod uction flow
cuttings-bending plate-submerged arc welding-assembly-non destructive testing-heat treatment- hydraulic test- sand blasting-painting
* Special Designed for under ground use, corrosion resistant.
* Water Resistant Fabric with Asphalt Coating in 3 Layer
* Red Painting Rust Resistant Design in 2 Layer
* Pressure Vessel Designed Tank Material in 14mm to 16mm.
Product Specification;
Technique Parameter for 500000 Liters 25tons Under ground lpg storage tank
| 50CBM LPG TANK DIMENSIONS | |||
| Volume of Tank | 50 CBM | ||
| Filling Weight | 25,000 kg | ||
| Tank Weight | 10640kg | ||
| Thickness of Shell (mm) | 14 mm | ||
| Thickness of Endplate (mm) | 16 mm | ||
| Tank Diameter (mm) | 2700 mm | ||
| External Dimensions (mm) (length x width x height) | 9182 x 2728 x 3318 mm | ||
| Material of Tank and Main Pressure Parts | Carbon Steel Q345R | ||
| Filling Medium | Liquefied Petroleum Gas ( Propane) | ||
| Design Pressure | 1.77 MPa | ||
| Corrosion Allowance | 1 mm | ||
| Medium Density | 500 kg/ cbm | ||
| Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | |||
| Main parts of LPG Tank | |||
| Item | Specification | Quantity | |
| Discharge Pipe | DN50 | 1 | |
| Inflow Pipe | DN50 | 1 | |
| Gas phase balance pipes | DN50 | 2 | |
| Drain Hole | DN50 | 1 | |
| Manhole | DN450 | 1 | |
| Air-out Pipe | DN50 | 1 | |
| Safety Valve Pipe | DN80 | 1 | |
| Safety Accessories(Included in the quotation): Cut-off Valve, Needle Valve, Safety Valve, Magnetic Liquid level meter, Pressure gauge, Temperature Gauge. |
|||

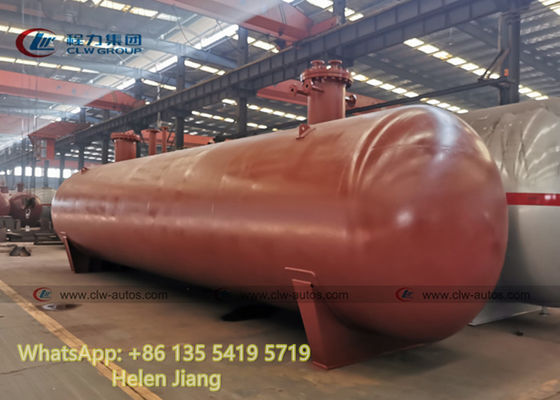

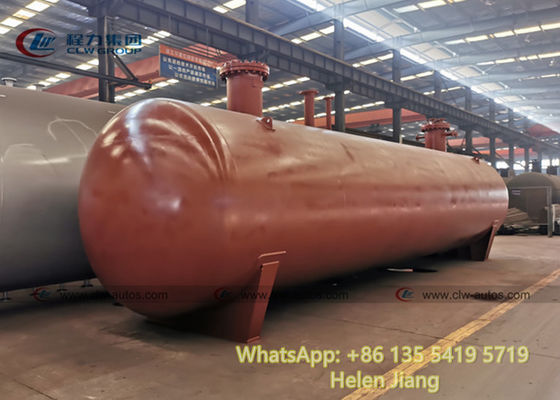

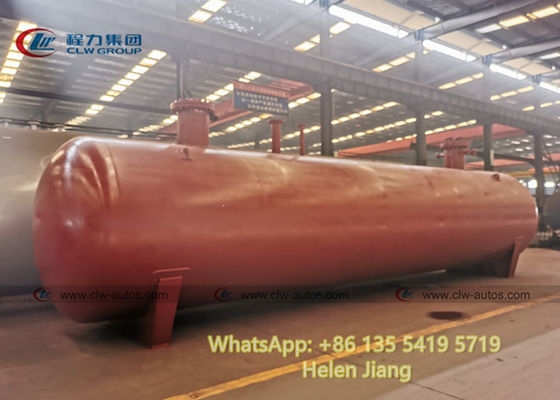

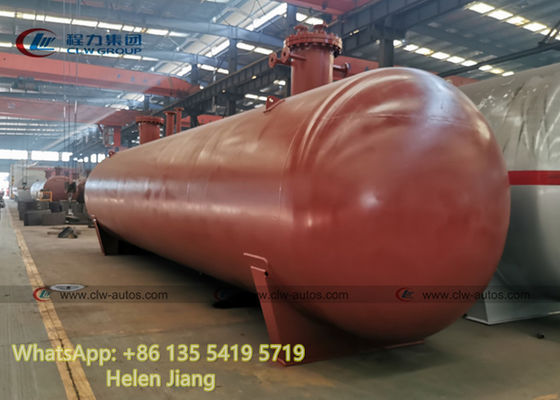

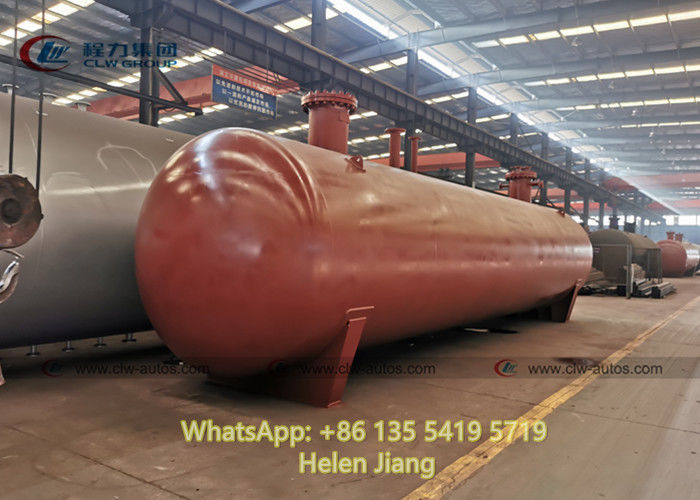

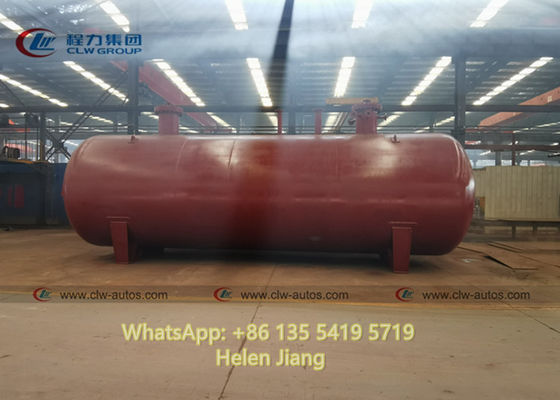

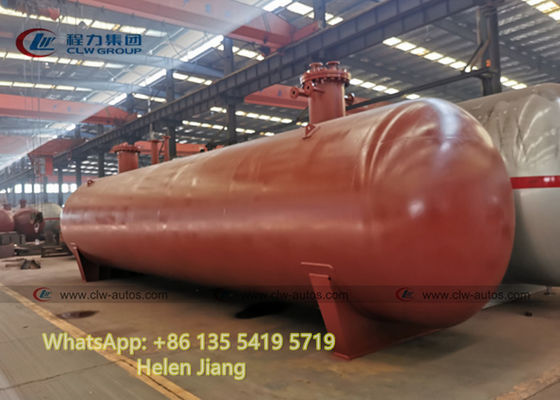

Product 50000Liters under ground LPG storage tank's pictures:
Pictures of LPG gas plant with the accessories:
Production Process for LPG storage tank:
-- The welding joints, welds, tank heads and geometric positions of each pressure element are strictly inspected by X-ray;
-- non-destructive testing and magnetic particle inspection test for each Underground LPG tank;
-- Design pressure of Underground LPG tank: 1.77Mpa;
-- hydraulic testing pressure:2.21 Mpa;
-- Corrosion allowance: 1mm;
-- Optional for tank accessories and lpg gas station equipments such as safety valve,globe valve,ball valve,pressure gauge,thermometer,magnetic level guage or rochester float-ball level gauge,lpg pump and motor,lpg compressor,lpg flow meter,cylinder filling scales,strainer,glass valve and so on.
