Diameter 2700mm 50000L Q345R LPG Gas Refilling Station

Diameter	2700mm 50000L Q345R LPG Gas Refilling Station
Diameter	2700mm 50000L Q345R LPG Gas Refilling Station Diameter	2700mm 50000L Q345R LPG Gas Refilling Station Diameter	2700mm 50000L Q345R LPG Gas Refilling Station Diameter	2700mm 50000L Q345R LPG Gas Refilling Station Diameter	2700mm 50000L Q345R LPG Gas Refilling Station Diameter	2700mm 50000L Q345R LPG Gas Refilling Station

Large Image :  Diameter 2700mm 50000L Q345R LPG Gas Refilling Station

Product Details:

Place of Origin: SUIZHOU, HUBEI
Brand Name: CLW
Certification: ISO9001, CCC, BV, SGS
Model Number: CLW20210723

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiated
Packaging Details: Naked or Waxed before delivery
Delivery Time: 25-20 days after receiving the deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 units per month
Detailed Product Description
Tank Material: Q345R Q370R Q420R Carbon Steel For Pressure Vessel Loading Capacity: 20 TONS, 25 TON, 30 TONS, 40 TONS, 50 TONS, 60 TONS
Tank Size: 50 M3, 50cbm, 50000liters, 50000L Design Pressure: 1.71MPa 1.77MPa 17.1bar, 17.7bar
Hydraulic Test Pressure: 2.21MPa 22.1bar Filling Medium: Propane, Butane, LPG, Cooking Gas
Level Gauge: Magnetic Plate Level Gaue, Float-Ball, Rotor Level Gauge Diameter: 2700mm, 3000mm
TONS: 50000L, 50cbm, 50000liters, 50m3, 25tons, 25ton Gas Plant: Pump, Motor, Filling Weight Scale, Dispenser
High Light:

50000L LPG Gas Refilling Station

,

Q345R LPG Gas Refilling Station

,

Diameter 2700mm Propane Refill Station

50000L 25 tons 25T LPG Gas Refilling Tank Plant Propane Gas Station LPG Filling Gas Plant for Cylinder Filling





Product Description



1. Storage medium of LPG Stationary Storage Tank : LPG, cooking gas,propane gas,Liquid ammoina,Dimethyl ether,Iso-butane,Pentane and etc.

2. Available tank capacity of LPG Stationary Storage Tank : 5m³~200m³,2ton~100tons

3. Manufacturing standards of lLPG Stationary Storage Tank : GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008



Liquefied petroleum gas storage tanks include compressed gas or liquefied gas storage tanks. Liquefied petroleum gas storage tanks can be divided into fixed volume storage tanks and active volume storage tanks according to the volume change of containers. Large fixed volume LPG storage tanks It is made into a spherical shape, and the small one is made into a cylindrical shape. The active volume storage tank is also called the low-pressure gas storage tank. It is commonly called the gas cabinet. Its geometric volume can be changed, tightly sealed, no gas leakage, and the balance of air pressure and the adjustment of gas supply. The pressure generally does not exceed 60MPa.

1. LPG Tank Storage Content: LPG Gas, Propane, Butane, Liquid Ammonia, etc
2. Tank Design Standard: GB150-2013, ASME Standard with U STAMP.
3. Test: 100% Radiaographic Test, Magnetic Power Test, Water Pressure.

4.  lpg storage tank capacity

5,000l , 10,000l, 15,000l, 20,000l, 25,000l, 30,000l, 35,000l, 50,000l, 80,000l, 100,000l . 120,000l, 150,000l, 180,000l, 200,000l.

5. lpg storage tank material

Q345R Q370R SA516

6.  lpg storage tank prod uction flow

cuttings-bending plate-submerged arc welding-assembly-non destructive testing-heat treatment- hydraulic test- sand blasting-painting

Product Specification;



Parameter of 25tons storage tanks
ITEM PARAMETER ITEM PARAMETER
Volume 50000liters Thickness of Shell 14mm
Tank Material Q345R Thickness of End plate 16mm
Overall Size 9182*2728*3318mm Tank Net Weight 10640kg
Tank Diameter 2700mm Loading Capacity 19950kg
Design Pressure 1.77Mpa Gas Density 420kg/M3
Hydraulic Test Pressure 2.22Mpa Corrosion Allowance 1mm
Design Temperature -20ºC~60ºC Heat Treatment Bulk
Vapor Outlet DN50 Gas Outlet DN50
Life time 15 years
Accessories
Model Item Qty Junction surface
J41N-2.5-50 Stop Valve DN50 6 RF
J41N-2.5-25 Stop Valve DN25 2 RF
J41N-2.5-80 Stop Valve DN80 1 RF
J24W-320-DN6 J24W Needle Valve M20*1.5 1
HG21584-95 Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5 1 RF
A42F-25-80 Safety Valve DN80 1 RF
Y-100T Pressure Gauge M20*1.5 1.5degree 0~4Mpa 1
WTQ-280 Thermometer M33*2 2.5 degree 1 -40ºC~60ºC

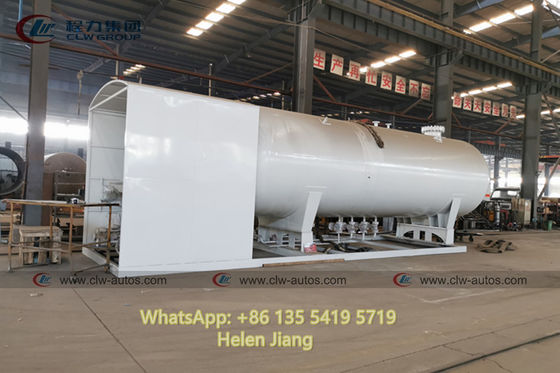

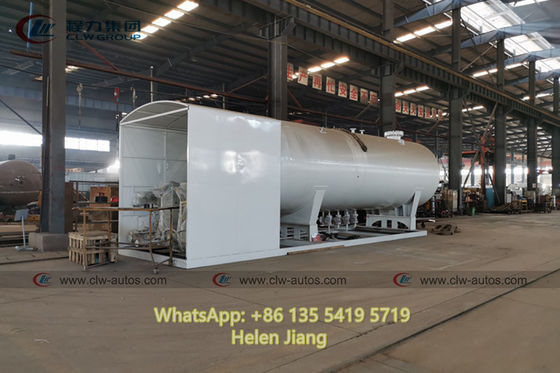

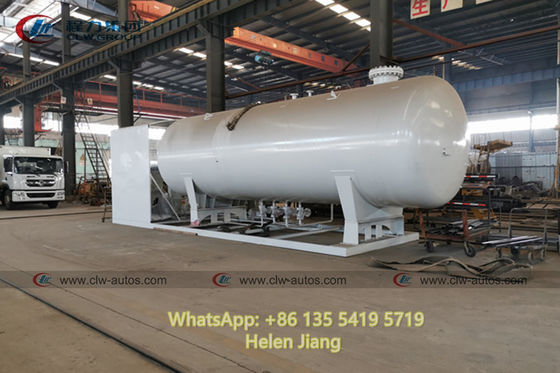

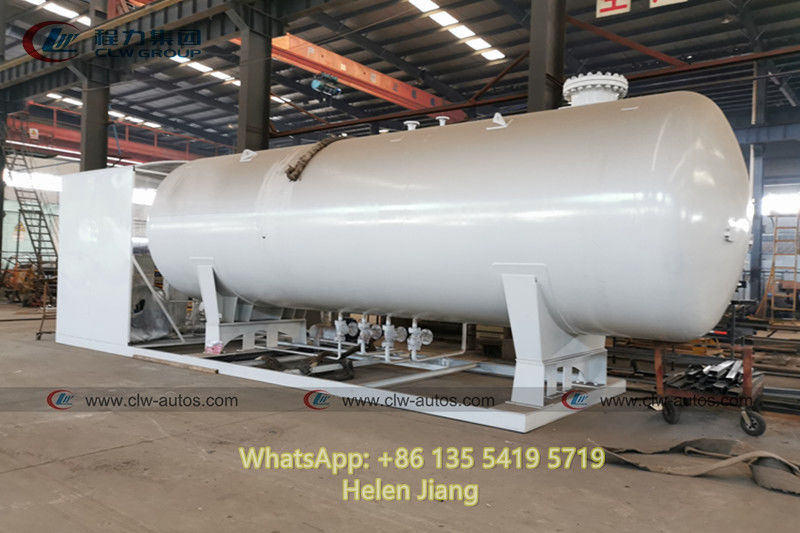

Product 50000Liters LPG storage tank's pictures:

Diameter	2700mm 50000L Q345R LPG Gas Refilling Station 0Diameter	2700mm 50000L Q345R LPG Gas Refilling Station 1Diameter	2700mm 50000L Q345R LPG Gas Refilling Station 2Diameter	2700mm 50000L Q345R LPG Gas Refilling Station 3Diameter	2700mm 50000L Q345R LPG Gas Refilling Station 4

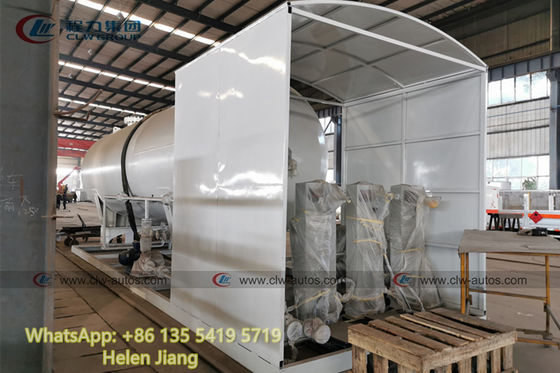

Pictures of LPG gas plant with the accessories:

Diameter	2700mm 50000L Q345R LPG Gas Refilling Station 5

Production Process for LPG storage tank:

Diameter	2700mm 50000L Q345R LPG Gas Refilling Station 6



Feature

-- The welding joints, welds, tank heads and geometric positions of each pressure element are strictly inspected by X-ray;

-- non-destructive testing and magnetic particle inspection test for each Underground LPG tank;

-- Design pressure of Underground LPG tank: 1.77Mpa;

-- hydraulic testing pressure:2.21 Mpa;

-- Corrosion allowance: 1mm;

-- Optional for tank accessories and lpg gas station equipments such as safety valve,globe valve,ball valve,pressure gauge,thermometer,magnetic level guage or rochester float-ball level gauge,lpg pump and motor,lpg compressor,lpg flow meter,cylinder filling scales,strainer,glass valve and so on.



Our Service

1) Quick feedback to solve your questions;
2) Professional engineering and production team;
3) Related Accessories and spare parts offered,no future worries;
4) Regular customer after-sale visiting;
5) Free technical staff training and guidance;
6) Reasonable price and good quality;
7) Quick delivery and shipment.




FAQ

Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tanker, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Any interests you can feel to contact us for details. Many Thanks.


Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.

Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes. The biggest size tank we ever provided is 200m3 high pressure LPG storage tank

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
