Product Details:
Payment & Shipping Terms:
|
| Product Name: | HOHAN Wrecker Recovery Rescue Towing Truck | Engine Horse Power: | 266hp, 290hp |
|---|---|---|---|
| Truck Brand: | Sinotruk HOWO, SHACMAN, FAW, FOTON, JAC Etc | Drive Model: | 4x2, 6 Wheels, 6 Wheeler |
| Drive Type: | Right Hand Drive, Or Left Hand Drive. | Wrecker Type: | 360 Degree Rotation. 360 Degree Rotated Optional. |
| Equipment: | Hydraulic Pump, Oil Cylinder | Main Parts: | Boom, Hoisting, Winches, Landing Leg |
| Loading Capacity: | 8tons 10tons, 12tons, 8 Tons, 10 Tons, 12 Tons Etc | ||
| High Light: | 266HP Breakdown Recovery Truck,Sinotruk HOWO Breakdown Recovery Truck,Sinotruk HOHAN Wrecker Tow Truck |
||

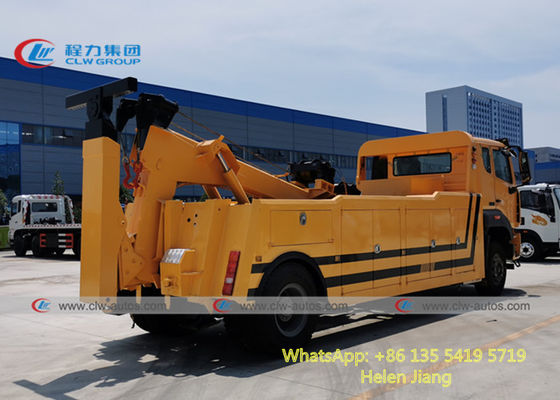

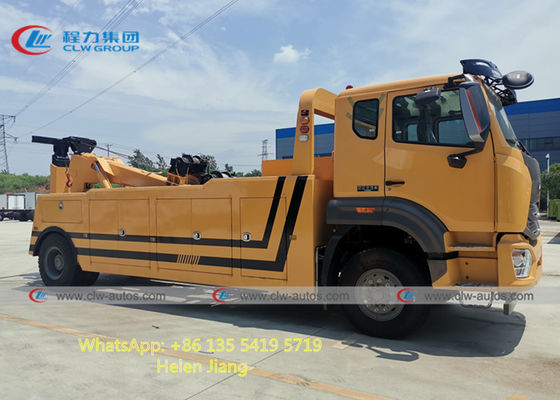

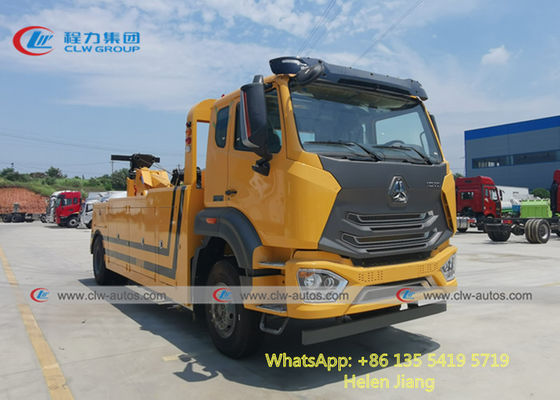

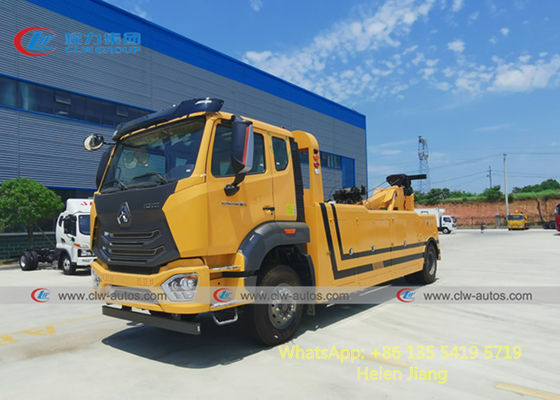

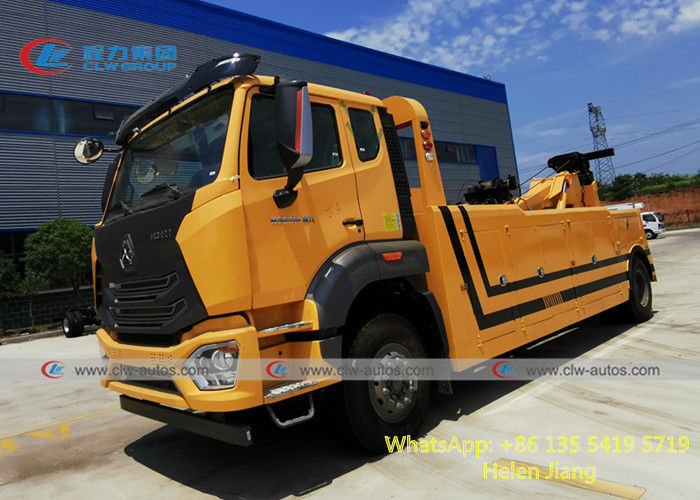

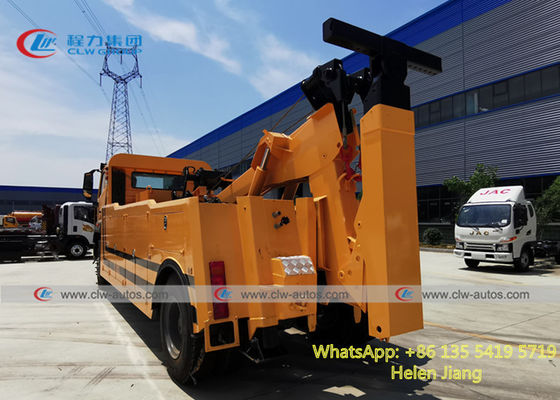

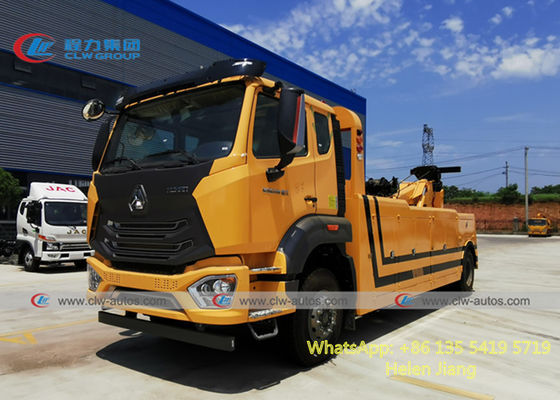

Sinotruk HOWO/HOHAN 4X2 266HP 10Ton 12Ton Breakdown Rescue towing Truck Recovery Wrecker Truck
Product Description:
1. Purpose of Recovery Truck: wrecker/recovery truck/towing truck is used for towing break-down cars or vehicle or bus or trailers on road.With increasing ownership of private cars,wreckers are now widly used by government organization or towing company.
2. Optional brand of Recovery Truck :howo,Dongfeng,Isuzu,JAC,JMC,Foton,Shacman...
3. Spare parts of Recovery Truck : Italy brand multi-way valve and balance valve; Gernamy Roxroth technology hydraulic cylinder and joint; imported sealing element; strengthed checked plate
4. Capacity range of Recovery Truck:3ton, 4ton, 5ton, 6ton, 8ton, 12ton, 16ton, 20ton, 25ton, 31ton, 40ton, 50ton
5. Fifth wheel attachment is optional for towing trailers as follows
Feature
-- Powerful howo 6X6 off road truck chassis;
-- 360 ° rotation rotator towing truck;
-- Italy hydro control control valve and balance valve;
-- Wuxi oil hydraulic pneumatic equipment co ltd;
-- One-step modeling compartment plate by germany 3P2A punching machine;
-- Adopting American wrecker design and manufacturing technology.
-- Key components using the finite element stress analysis (CAE technology)
-- Adopting high quality high-strength steel for important components
-- Hydraulic technology adopts two filtration systems to ensure hydraulic clean.
-- The key hydraulic lines seals imported from Germany.
-- All cylinders directly installed locking valve, the middle without connecting hose (to prevent bursting), increases safety consumption of gas leads out by protection valve, ensuring the safety of vehicle braking systems.
-- Equipped with various fork lifts (including leaf spring forks).
-- High and low fork combined with various fork lifts.
-- Corbel can be tilted upward with a load, also can be adjusted by the trailer hold angle.
-- Rear brake with pneumatic quick connector, enabling synchronization with towed vehicle braking.
-- Boom with 360 degree continuous rotation.
-- Equipped with trailer towing disk, remote control is optional.
Specification:
| Vehicle model | CLW5150TQZZ3 (RHD) | |
| Chassis parameter | ||
| Whole vehicle main dimensions | overall dimension(LxWxH)mm | 7900*2480*3110 |
| Drive system | 4*2 | |
| wheel base(mm) | 4600 | |
| Weight data | curb weight(kg) | 7800 |
| GVW | 15000 | |
| Whole vehicle main performance | Max speed(km/h) | 93 |
| Engine | Engine | WD615.96 |
| displacement | 9726mL | |
| Max output | 336HPat 2200rpm | |
| Max torque/speed | 1500N.m@1100-1600r/min | |
| Gearbox | gear box | HW 12 speed |
| Rear axle | Hc16 ,Speed ratio:4.42,4.8,5.73 | |
| Steering gear | ZF8098 | |
| Clutch | Single-plate dry diaphragm-spring clutch, diameter 430 mm, hydraulically operating with air assistance | |
| Cabin | Flat top ,with one berth , air conditioner | |
| tyre size | 12.00-20 with one spar tyre | |
| Special parts parameter | ||
| Tow Function (crane and lifter are together) |
Max tow capacity | 16Ton |
| Max tow lifting capacity (shortest arm position) |
8Ton | |
| Winch number | 2 | |
| Winch capacity | 8ton | |
| Accessories | Two hexagon boom,3nos arm, bilateral linkage operation device,balance weight at front bumper,3nos rear working lamp,2nos 100K.N hydraulic capstan (40 meters of wire rope), 1nos Wash box, 1 sets U type tire holding device, 5 sets fork, 1sets fork block , 2pieces chain hook, 1nos long rows of engineering lights (LED), 1 sets auxiliary lamp assembly , 1 sets of auxiliary brake pipe assembly. | |
CLW group, which was appointed by the Development and Reform Committee of China is a professional company who deal in
different kinds of special vehicles, trailers and construction machinery.
Sales Service
① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
