Product Details:
Payment & Shipping Terms:
|
| Model NO.: | ZW-2.0/10-16 | Configuration: | Stationary |
|---|---|---|---|
| Flow Rate: | 0.8m3-2.0m3/Min | Vapor Suction: | 1.0MPa |
| Deliver Pressure: | 1.6MPa | Motor Voltage: | 380V |
| Motor Horse Power: | 11kw, 15HP | Rotation Speed: | 1460r/Min |
| Explosive Proof Grade: | Exdiibt4 | Motor Power: | 11kw, 30kw Etc |
| Specification: | 120m3/hour, Explosion-proof Motor | ||
| High Light: | 48m3/H CNG Gas Compressor,120m3/H CNG Gas Compressor,Explosion Proof LPG Gas Compressor |
||

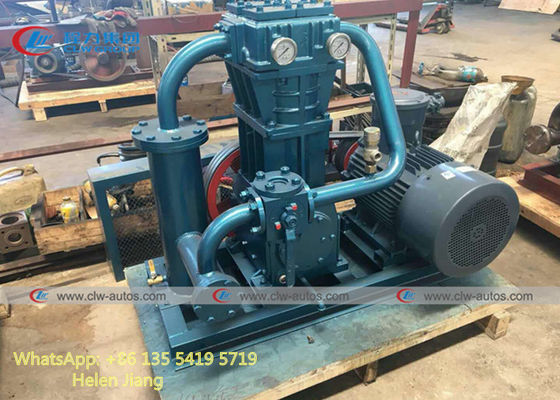

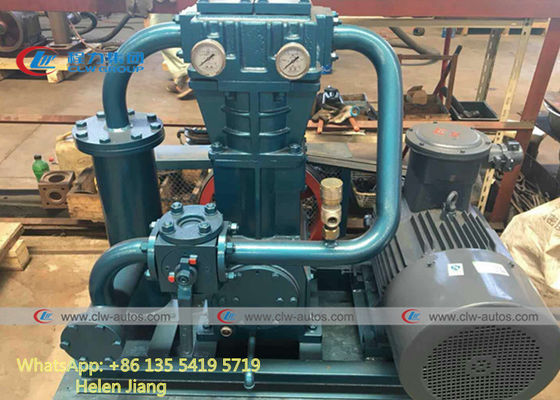

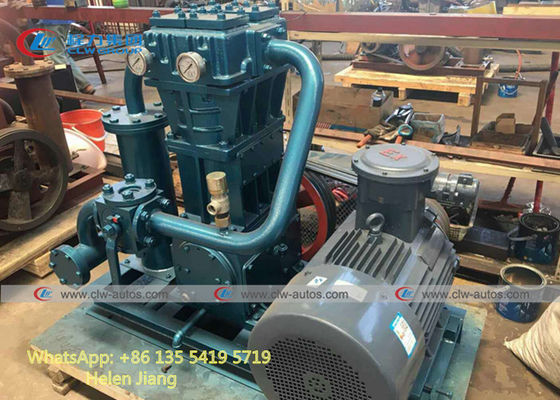

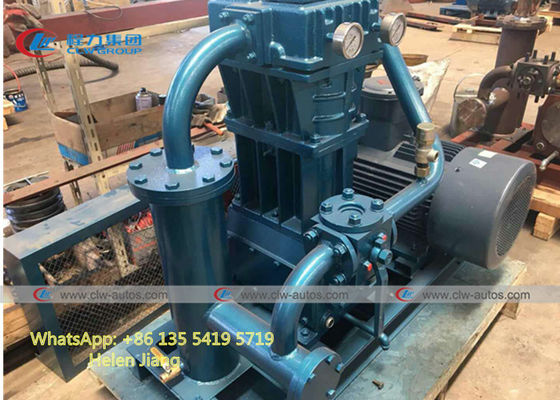

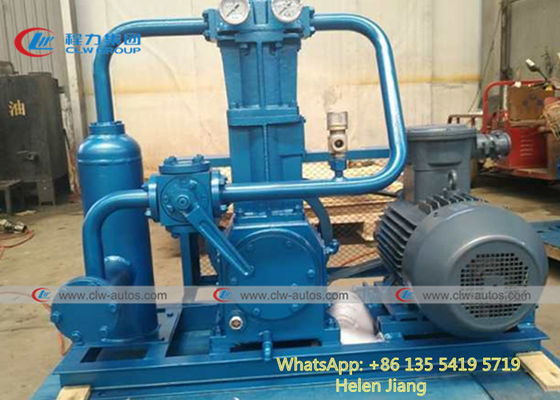

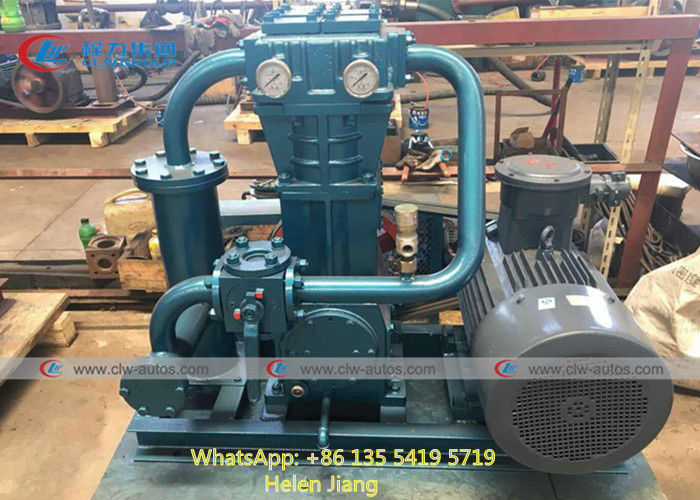

48m3/Hour, 120m3/Hour Explosion-Proof LPG/CNG Gas Compressor for LPG/CNG Gas Tank Plant
Product Discription:
ZW series of LPG recycle compressor is vertical, single acting, air-cooled, oil-free lubrication, reciprocating piston unit. This series compressor cylinder & packing components are oil-free to ensure the purity of its working medium. Crankshaft, connecting rod, crosshead components are pressure lubrication (splash lubrication) to ensure the reliability of lubrication.
The LPG compressor is mainly used for liquefied petroleum gas or properties with similar gas delivery, pressurization, thus this kind of compressor is the key equipment of liquefied gas station, LPG station, station equipment is mixed, the ideal chemical enterprise booster gas recovery.
ZW series Oil-Free LPG Gas Compressor, it has many functions, small volume, lightweight, small power, stable and reliable operation, and has good safety performance. It can transport highly volatile liquid such as liquefied petroleum gas and recover the gas left in the tank, Liquid Natural Gas. Due to the unique oil-free lubrication design, there is no need for oil lubrication in the cylinder, so it will not pollute the medium (ensure the purity of gas) and keep the transported substances pure.
Excellent complement, satisfied performance, light weight, small occupying area, more compressing ratio, smooth running, long service life of spare parts, simple operation, reliability and easy maintenance. ZW series compressors have both fixed or movable types; both normal atmosphere (0.1~1.5MPa) and high pressure (1.6~2.4MPa) to meet different requirements of customers.
| Media | LPG Gas |
| Cooling Type | Wind Cool |
| Compressing Stage | 1 |
| Capacity | 1.0m3/Min |
| Inlet Pressure | 1.0MPa |
| Outlet Pressure | 1.6MPa |
| Speed | 650rpm |
| Ex Motor | 11kw, 380V, 50Hz |
| Weight | 450kgs |
