Product Details:
Payment & Shipping Terms:
|
| Product Name: | Wrecker Recovery Rescue Flatbed Tow Truck | Truck Brand: | Sinotruk HOWO, Dongfeng, FAW, FOTON, JAC Etc |
|---|---|---|---|
| Drive Model: | 4x2, 6 Wheels, 6 Wheeler | Drive Type: | Right Hand Drive, Or Left Hand Drive. |
| Max. Loading Weight: | 6000KG, 8000KG, 6 TONS, 8 TONS, | Equipment: | Hydraulic Oil Pump, Oil Cylinder, Auxiliary Wheel |
| Main Parts: | Boom, Hoisting, Winches, Landing Leg | Wire Rope: | 25 Meters |
| Other: | With XCMG Brand Straight Arm Crane | ||
| High Light: | Dongfeng Tianjin Flatbed Tow Truck,Flatbed Tow Truck With XCMG Crane,4x2 Wrecker Tow Truck |
||
Dongfeng Tianjin 4x2 8Tons Road rescue vehicle Flatbed Towing Rescue Truck With XCMG crane
Product Description:
Application: Vehicle rescue and road clearance etc.
Chassis Brand: DFAC, HOWO, Foton or other high quality brand chassis
Equipments: Hydraulic winch, rear towing device, warning light, tow wheel etc.
Tilted angle flatbed and full sit-ground flatbed optional.
Towing Types: Boom type / Wheel-lift type / Integrated type of boom and wheel-lift / Flatbed / Lift flatbed are optionals. Please specify when inquiring or placing order.
Main Market: our wrecker tow trucks are widely sold in Africa, S. America, Middle East and Asian countries.

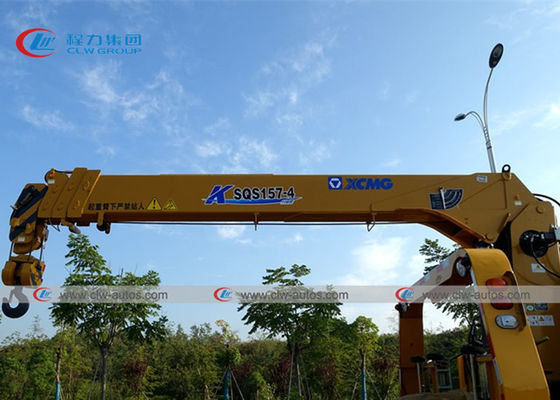

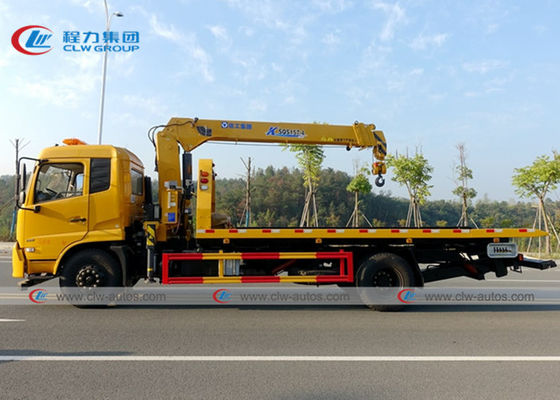

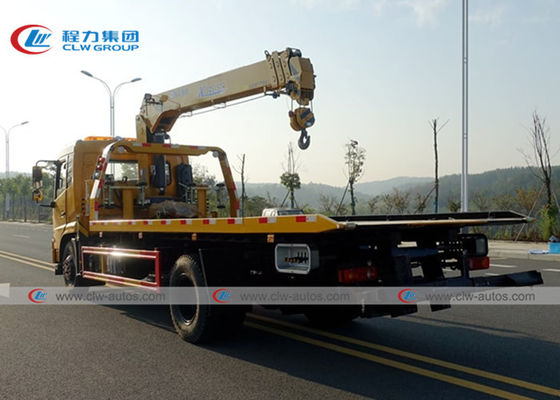

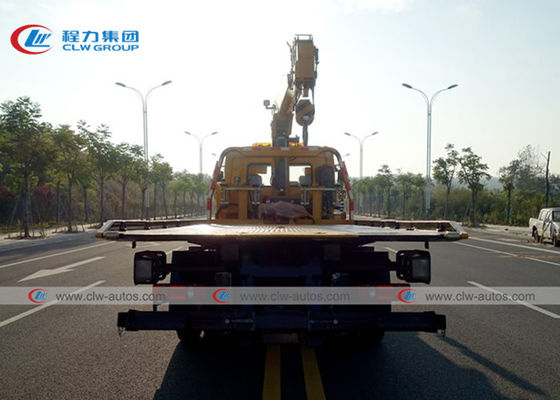

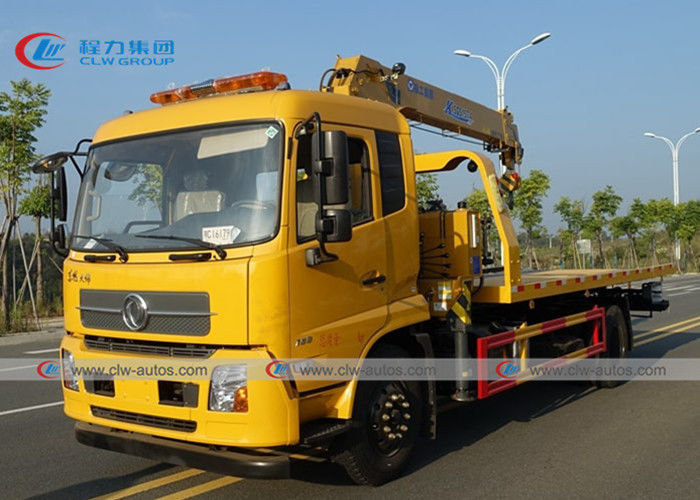

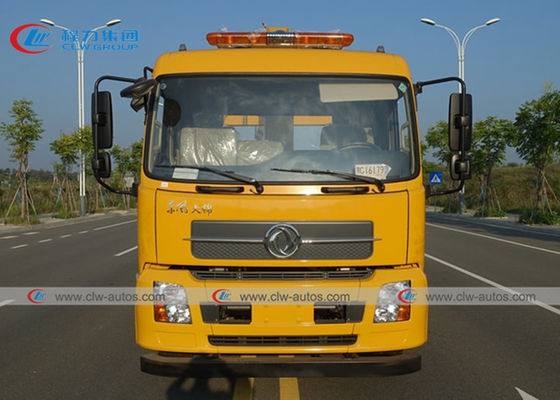

Below photo includes our tow trucks with different chassis and capacities.The spec is 8 ton model for reference.
Specification:
| 4 ton DONGFENG Wrecker Truck with Crane Parameter | ||
| Vehicle | DONGFENG wrecker truck with crane | |
| Overall dimension | mm | 8000×2350×3300 |
| Flatbed dimension | 5550×2300 | |
| Curb weight | kg | Appro×6600 |
| Flatbed loading weight | Appro×4000 | |
| Carriage arm loading weight | Appro×3000 | |
| Wheel base | mm | 4400 |
| Front/Rear overhang | 1180/2420 | |
| Approach/departure angle | ° | 25.5/11 |
| Standard configuration | 1) With 2-4 ton crane | |
| 2) 4 tons winch 1 set | ||
| 3) Auxiliary wheel 2pcs | ||
| 4) Rear towing arm assembly 1 set | ||
| 5) Steel wire rope 25m | ||
| 6) Bunding belt 4pcs | ||
| 7) Rear tail lights LED,both sides electronic lights. | ||
| 8) Tool box | ||
| Working Performance |
1. It can tow two cars. 2. Hydraulic control flatbed and carriage arm,with hydraulic operation lever. 3. Winch speed : 8m/min. 4. Flatbed working stroke: 2680mm 5. Flatbed minimum tilt angle: 10° 6. Carriage arm telescopic stroke: 1180mm 7. The max effective length of the carriage arm: 1300mm. 8. Crane max working radius 5.1m, max lifting height 6.8m. |
|
| Chassis Parameter | ||
| Cabin | Single row cabin,air conditioner, cabin roof warning light, 2 passangers | |
| Drive type | 4×2 | |
| Engine |
Brand : DONFGENG CHAOCHAI Model : CY4102-E3C, 120hp Type : diesel, 4 cylinder, turbocharged, intercooled. Displacement : 3856ml Emission standard : Euro III |
|
| Transmission | 5-speed, manual | |
| Tire model | 8.25R16 | |
| No.of tires | 6 pcs | |
CLW group, which was appointed by the Development and Reform Committee of China is a professional company who deal in
different kinds of special vehicles, trailers and construction machinery.
Sales Service
① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
