| Tank Material: | Q345r Or Q370r Carbon Steel For Pressure Vessel | Loading Capacity: | 5t 5ton 5 Tons 5mt LPG Gas Refilling Plant |
|---|---|---|---|
| Tank Size: | 10 M3, 10cbm, 10000 Liters, 10000L 10M3 | Design Pressure: | 1.71MPa 1.77MPa 17.1bar, 17.7bar |
| Hydraulic Test Pressure: | 2.21MPa 22.1bar | Filling Medium: | Propane, Butane, LPG, Cooking Gas |
| Level Gauge: | Magnetic Plate Level Gaue, Float-Ball Rochestor | Diameter: | 1600mm |
| Other Accessories: | LPG Pump & Motor, LPG Compressor, | Filling Parts: | LPG Filling Weight Scale, LPG Dispenser With One Or Double Nozzles |
| Production Name: | LPG Skid Station, Refilling Cylinder Filling | Pump Brand: | Corken, Blackmer, Chinese Brand |
| Others: | Gas Leakage Detector, Water Cooling System. Emergency Shut Off | ||
| High Light: | 5T LPG Gas Filling Station,10000L LPG Gas Filling Station,Mobile LPG Skid Station |
||
5Tons Mobile LPG Cylinder Filling Skid 10,000Liters LPG Gas tank station with 2 sets Pumps & Motors
Product Description
LPG refilling plant (also called gas refilling plant,cylinder refilling plant,lpg refilling plant,cylinder refilling station,lpg skid station,skid lpg station,propane skid station,propane bottling plant) is a completed mini lpg station composed with lpg tank,lpg pump and motor,cylinder weighting and filling machine,valves and pipeline.Propane refilling station is used to refill cylinders,suitable for limited land space.Usually 5tons and 10tons propane refilling station will be located next to a fuel refilling station and offer cylinder bottling service.
Feature
1. lpg refilling plant for cooking gas refilling in home use cylinder in different size.
2. One Propane refilling plant with 2 Function: Truck Discharging & Cylinder Refilling with 1 Pump
3. Digital Filling Scale with Auto Filling Cut-off, Thousans of Record Keeping, net & Gross Filling
4. Pump of Propane refilling plant is optional: Vane Pump & Coro-Flo Pump, Turbine Pump, Corken or Blackmer Brand.
5. Motor of Propane refilling plant: ABB or SIEMENS Brand, Static-free, 380V 3 Phase, 5.5KW to 10KW
6. Pipeline: 2" Steel pipe with safety return valve, strainer, one-way valve, cut-off valves.
7. Explosive Proof Central Control Panel for whole station system
8. Other Equipment: Sunshade for filling area, Leakage Detector,ex-plosive lamp
5-10Tons LPG Filling Skid 10,000-20,000Liters LP Gas tank station
is mainly used for cooking gas storage and LPG Cylinders refilling. our tank is designed for 30 years life. the skid plant is using China top quality pump, compressor, valves, meters and filling scales. The filling scales is digital. The filling speed is 1minite for 25kg cylinder. one scales can fill 100-200pcs cylinders. So one plant can use to refill 200-400cylinders every day. We sold hundreds of LPG Skid Plants to Nigeria, Kenya, Zimbabwe, Bangladesh, Cambodia etc every year.
Product Specification for 10000Liters 5 tons LPG skid station;
| Item No. | Parameters |
| Volume of Tank (cbm) | 10 |
| Tare Weight (kg) | 2950 kg |
| Filling Capacity (kg) | 5000 kg |
| Thickness of Shell (mm) | 10 |
| Thickness of Endplate (mm) | 10 |
| tank cylinder diameter (mm) | 1600 |
|
External Dimensions (mm) (length × width × height) |
5260*1620*2210 |
| Material of Tank and Main Pressure Parts | Carbon Steel Q345R |
| Filling Medium | Liquefied Petroleum Gas |
| Design Pressure | 1.77MPa ( 256.65 Psi) |
| Corrosion Allowance | 1 mm |
| Medium Density | 550kg/cm3 |
Main Specification for filling system:
| Item | Product | Description | |||||||
| 1 | Dispenser x 1 , Or LPG filling weighter x2 | one gun, with total print function, liter Unit or Gallon Unit | |||||||
| 2 | Pump for liquid output x1 ( pump out ) | Installing Vibration-proof pipe, filter net for pump in,ball valve for input and output, pressure gauge with valve x 1. Safety valve x1 Air gas valve x2, liquid gas valve x2, metal soft pipe 3.5 m x 2 Unit ( DN50, DN 25) |
|||||||
| 3 | Pump with one Compressor | ||||||||
| 4 | Urgent cutt off valve with ball valve x 1 | ||||||||
| 5 | liquid level gauge | with valve x 2 | |||||||
| 6 | Safety valve x1 | Between tank and dispenser | |||||||
| 7 | Valve for wasted and unusefull liquid x2 | ||||||||
| 8 | Urgent cutt off valve x 2 Unit | Tank liquid gas output point, | |||||||
| 9 | Temperaturer gauge x1,pressure gauge x1 | In stalling on tank | |||||||
| 10 | Safety electric system | Safety Switch x 3 set with safety electric box. | |||||||
| 11 | Alarm system | Around pipe, to checking whether leaking gas. | |||||||
Product 5 tons 10MT 10000Liters LPG skid station's pictures:

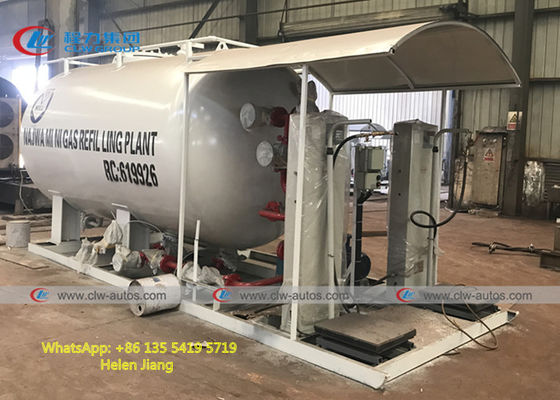

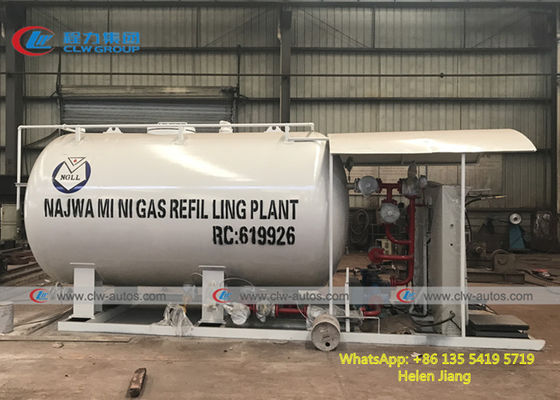

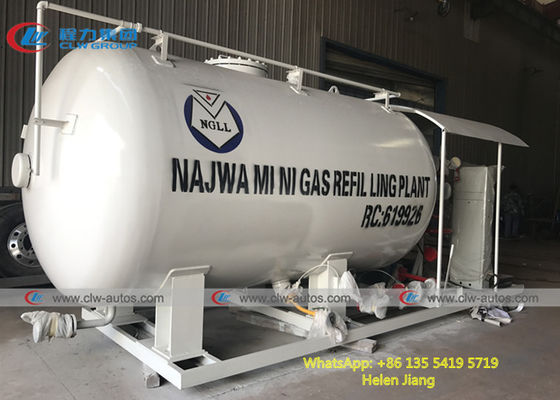

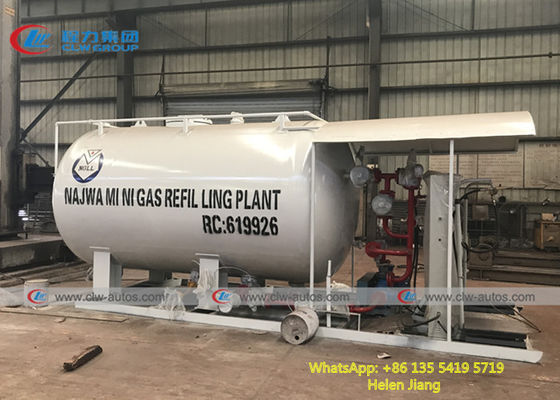

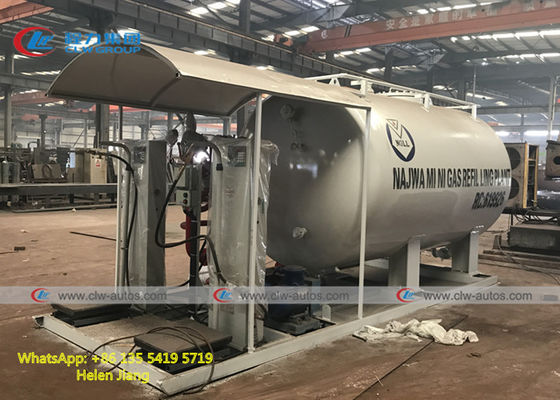

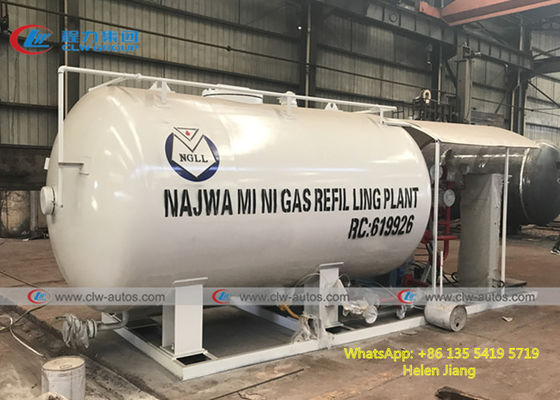

Pictures of LPG gas plant with the accessories:
Production Process for LPG storage tank:
-- The welding joints, welds, tank heads and geometric positions of each pressure element are strictly inspected by X-ray;
-- non-destructive testing and magnetic particle inspection test for each Underground LPG tank;
-- Design pressure of Underground LPG tank: 1.77Mpa;
-- hydraulic testing pressure:2.21 Mpa;
-- Corrosion allowance: 1mm;
-- Optional for tank accessories and lpg gas station equipments such as safety valve,globe valve,ball valve,pressure gauge,thermometer,magnetic level guage or rochester float-ball level gauge,lpg pump and motor,lpg compressor,lpg flow meter,cylinder filling scales,strainer,glass valve and so on.
