Product Details:
Payment & Shipping Terms:
|
| After-sales Service Provided: | Spare Parts Supply And Engineer Support | Tanker Volume: | 60CBM/60000Liters/30MT/30tons |
|---|---|---|---|
| Tank Material: | Q345R/SA516 | Loading Material: | Propane/Liquefied Petroleum Gas/LPG |
| Design Pressure: | 1.77MPa | Medium Density: | 420Kg/m³ 450Kg/m³ 460Kg/m³ 480Kg/m³ 500Kg/m³ 520Kg/m³ 540Kg/m³ |
| Mechanical Property Test: | Tensile, Strength, Impact Test | Thickness Of Shell And Endplate: | 14-16mm |
| Condition: | New Printed | Color: | Customers' |
| Use: | LPG,LPG/PROPANE | Warranty: | 1 Year |
| High Light: | 60m3 LPG Pressure Vessel,30MT LPG Pressure Vessel,ASME LPG Storage Tank |
||
60,000Liters 60m3 Chinese LPG Pressure Vessel 30MT 30 Ton China Factory LPG Storage Tank
Description:
60000 Liter Bulk LPG Propane Butane Storage Tank LPG Gas Tanks for Sale in Africa
The liquefied petroleum gas storage tank (LPG Tank) is a pressure vessel for storing liquefied petroleum gas, and is mainly used in lpg gas storage stations and chemical enterprises.
Specifications
| Technical Specification | ||||
| Item | Name | Unit | Parameter | |
| 1 | Product model | / | LPG storage tank | |
| 2 | Vessel type | / | On the ground | |
| 3 | Tank Volume | m3 | 60 | |
| 4 | Filling medium | / | LPG / propane gas | |
| 5 | Filling coefficient | Kg/ m³ | 420/560 | |
| 6 | Tanker material | / | Q345R | |
| 7 | Overall dimension | mm | 10962*2728*3318 | |
| 8 | Tank inner diameter | mm | 2700 | |
9 |
Thickness | End plates | mm | 16 |
| Shell body | mm | 14 | ||
| 10 | Curb weight | kg | 12750 | |
| 11 | Filling medium weight | kg | 23940 | |
| 12 | Corrosion allowance | mm | 1 | |
| 13 | design pressure | Mpa | 1.71 | |
| 14 | Hydrostatic test pressure | MPa | 2.22 | |
| 15 | Designing temperature | °C | -19~50 | |
| 16 | Produce Manufacturing standards | / | GB150-20 | |
| 17 | Certification | / | ISO 9001-2015 | |
| Production process control | 1. Steel Plate Cutting &Rolling | |||
| 2. Tanker Body Welding | ||||
| 3. X-ray Welding Seam Detection | ||||
| 4. Whole Tanker Heat Treatment | ||||
| 5. Rust, Sand Blasting, Puttying | ||||
| 6. Water Pressure Test | ||||
| 7. Painting: primer, finish, lacquer | ||||

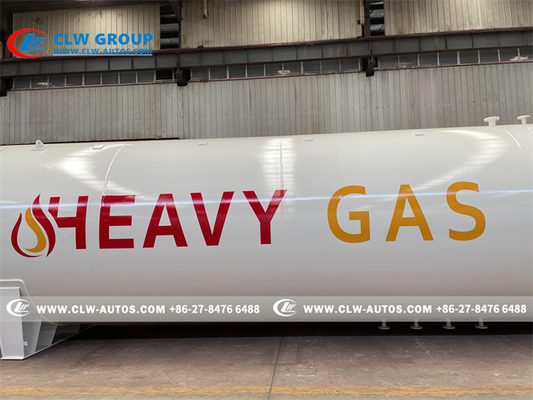

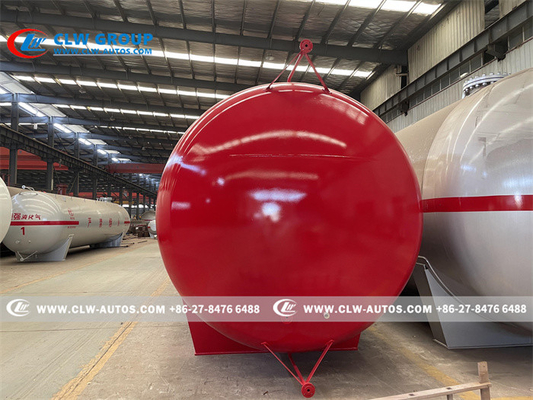

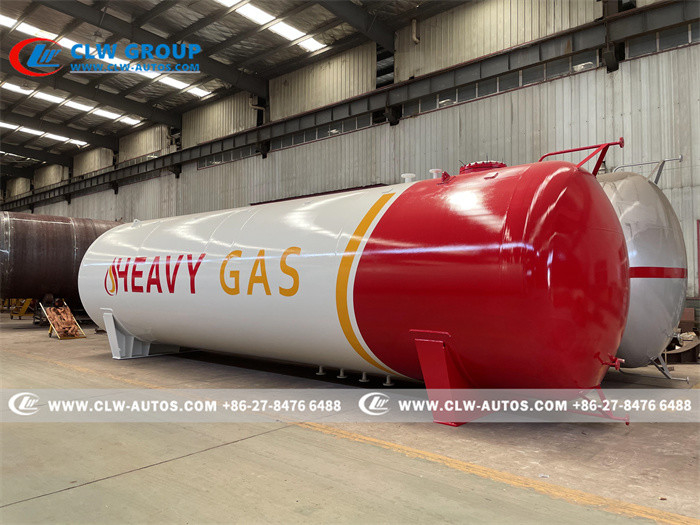

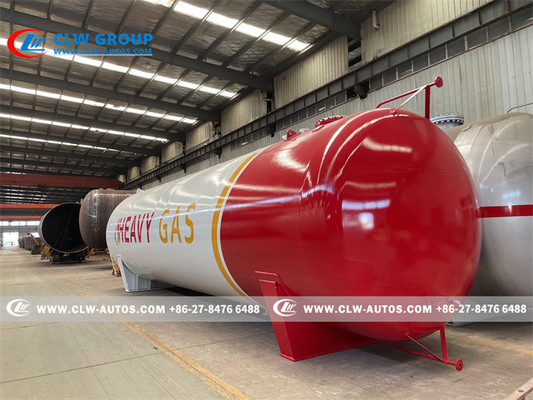

Reference photos
Tank diagram
Tank workshop
Other LPG tank/gas plant details
Sales Service
① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tanker, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Any interests you can feel to contact us for details. Many Thanks.
Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.
Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes. The biggest size tank we ever provided is 200m3 high pressure LPG storage tank
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
