SINOTRUK HOWO 4x2 Heavy Duty 8T Flatbed Wrecker Towing Truck

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

SINOTRUK HOWO 4x2 Heavy Duty 8T Flatbed Wrecker Towing Truck

SINOTRUK HOWO 4x2 Heavy Duty 8T Flatbed Wrecker Towing Truck
SINOTRUK HOWO 4x2 Heavy Duty 8T Flatbed Wrecker Towing Truck SINOTRUK HOWO 4x2 Heavy Duty 8T Flatbed Wrecker Towing Truck SINOTRUK HOWO 4x2 Heavy Duty 8T Flatbed Wrecker Towing Truck SINOTRUK HOWO 4x2 Heavy Duty 8T Flatbed Wrecker Towing Truck SINOTRUK HOWO 4x2 Heavy Duty 8T Flatbed Wrecker Towing Truck SINOTRUK HOWO 4x2 Heavy Duty 8T Flatbed Wrecker Towing Truck

Large Image :  SINOTRUK HOWO 4x2 Heavy Duty 8T Flatbed Wrecker Towing Truck

Product Details:

Place of Origin: SUIZHOU,CHINA
Brand Name: CLW
Certification: CCC SGS BV
Model Number: CLW5136

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: negotiable
Packaging Details: naked,waxed,bulk ship,ro-ro
Delivery Time: 30 days after receiving deposit at account
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 Units per month
Detailed Product Description
Chassis Brand: Foton, DONGFENG,ISUZU,FAW,HOWO,JAC,JMC Towing Capacity: 5ton,5tons,5t,8ton,8t,8tons
Color: White,yellow,Blue As Customized Steering: LHD,RHD,right Hand Drive,left Hand Drive
Engine: 245hp Wrecker Type: One-towing-two,one-towing-one
High Light:

8T Flatbed Wrecker Towing Truck

,

SINOTRUK HOWO Wrecker Towing Truck

,

SINOTRUK HOWO 4x2 Wrecker Tow Truck

SINOTRUK HOWO 4X2 heavy duty 8tons Flatbed Wrecker Towing Trucks emergency recovery trucks


Product Description

Wrecker truck, full name is road wrecker truck, is also called trailer truck or road rescue wrecker truck or towing truck.
It has multiple functions such as lifting, pulled and lift traction. Wrecker truck is mainly used in road, city of peccancy vehicles and rescue, etc.
Wrecker truck basically is refitted from the loading goods second class chassis, according to the wrecker truck's structure, it can be divided into tow, loading, lifting, rescue (single arm type and arms type) wrecker truck.

Customerized is acceptable ,pls kindly advise details as below:

1. According to the payload, there are light duty tow truck, middle duty tow truck and heavy duty tow truck to suit for different types of motor vehicle.

2. The heavy duty tow truck could rescue the construction trucks, city bus and other types of heavy duty vehicles.

3. The heavy duty tow truck has a rotate crane or boom, lifting capacity reaches 30tons.

4. The wheel lift organ on the heavy duty tow truck could be more than 20 tons and the total towing capacity is more than 40 tons.

5. We have different brands of truck chassis to make the wrecker tow truck.

6. The tow truck chassis are Foton, SINOTRUK HOWO, Dongfeng, FAW, ISUZU, JAC etc.



Product Specification



CHASSIS PARAMETER
Chassis model SINOTRUK HOWO
Specification Dimension LxWxH 8400x2480x3050 mm
GVW 18000kg
Engine brand and model Yuchai
Engine power 180kw/245HP
Emission standard Euro VI
Tyre 10.00R20
Max speed 95 km/h
Front/Rear Axles 7Tons + 13Tons
TOWING PARAMETER
Towing MaxTowing Capacity 8000 kg
Max Towing capacity under full extension 2000 kg
Max effecitve length of towing arm 1700 mm
Extension stroke 1340 mm
Flatbed Dimension of the platform 7200×2400 mm
Rating pulling force of winch 40 KN
Platform loading capacity 8000 kg
Min obliquity

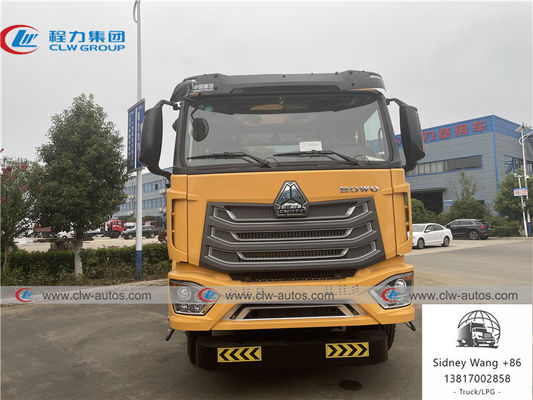

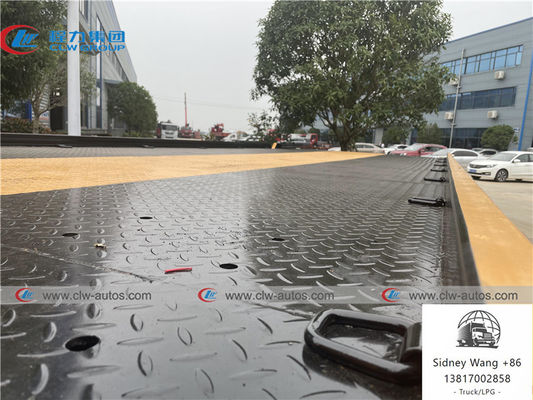

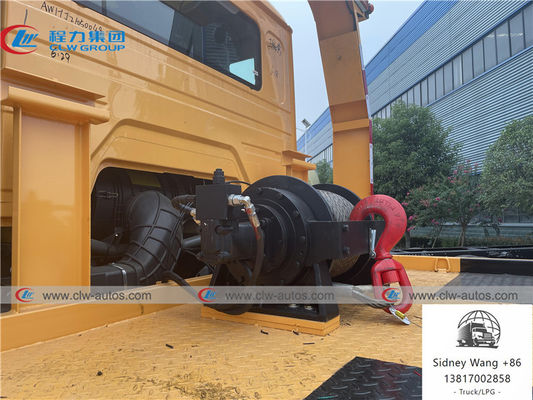

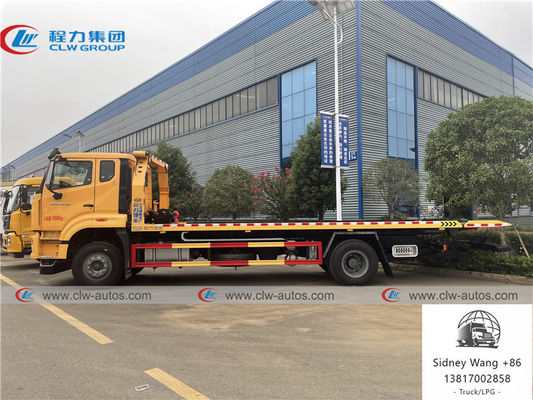

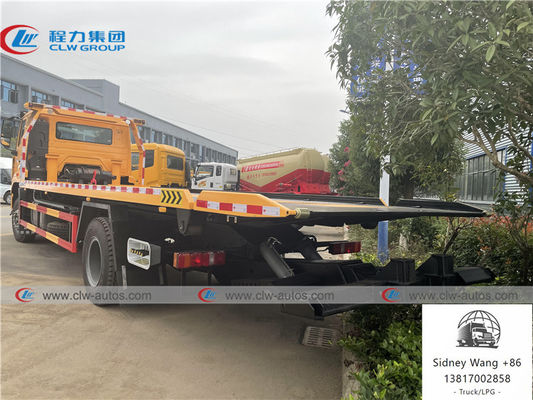

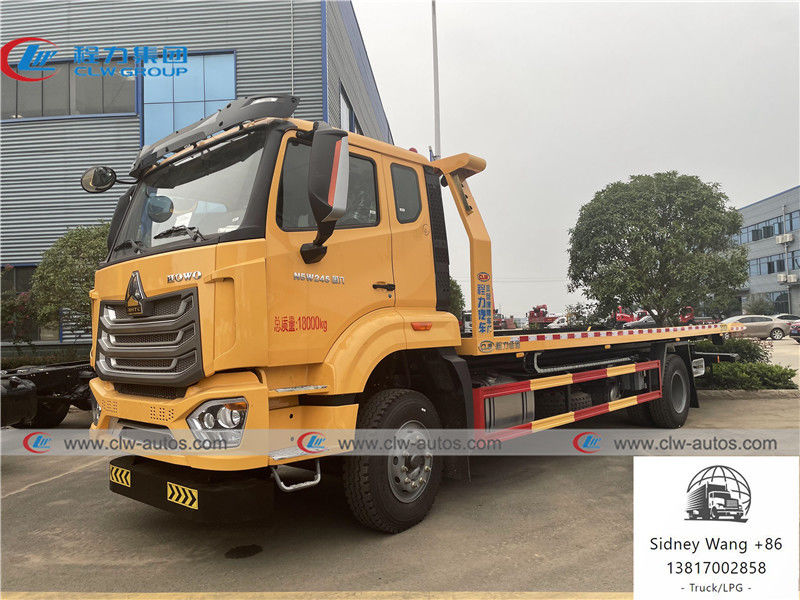

Reference photos
SINOTRUK HOWO 4x2 Heavy Duty 8T Flatbed Wrecker Towing Truck 0SINOTRUK HOWO 4x2 Heavy Duty 8T Flatbed Wrecker Towing Truck 1
SINOTRUK HOWO 4x2 Heavy Duty 8T Flatbed Wrecker Towing Truck 2SINOTRUK HOWO 4x2 Heavy Duty 8T Flatbed Wrecker Towing Truck 3

Parts diagram
SINOTRUK HOWO 4x2 Heavy Duty 8T Flatbed Wrecker Towing Truck 4

Item No. Name
1 chassis
2 Warning lamp
3 Single lamp(white-front clearance lamp;red-rear clearance lamp
4 Winch and steel rope
5 Loading plate
6 Side signal lamp
7 Chain hook
8 Wheel lift
9 “L” bracket
10 Operation and hydraulic system
11 Auxiliary wheel
12 Side guard rail
13 Tool box and accessories
14 PTO and oil pump
15 Witch and operation handle of PTO

SINOTRUK HOWO 4x2 Heavy Duty 8T Flatbed Wrecker Towing Truck 5
Factory overview
SINOTRUK HOWO 4x2 Heavy Duty 8T Flatbed Wrecker Towing Truck 6
SINOTRUK HOWO 4x2 Heavy Duty 8T Flatbed Wrecker Towing Truck 7

Our Service

  • Quick feedback to solve your questions

  • Professional engineering and production team

  • Related Accessories and spare parts offered,no future worries

  • Regular customer after-sale visiting

  • Free technical staff training and guidance

  • Reasonable price and good quality

  • Quick delivery and shipment



FAQ



Q1: What kinds of wrecker trucks I can order from your company?


A: There are various sizes of wrecker trucks with different functions and different capacity,you can contact us and tell your request.We will recommend you suitable product.



Q2: Have you supplied sweeper products to any overseas companies?


A: Yes,with need of towing services,we offered wrecker trucks and wrecker superstructurer to many African,south-east Asian and south-American countries.



Q3 What about warranty?


A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q5: Where is your factory? How far from Shanghai to your factory?


A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.





Warranty



1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.



Spare Parts



1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.



Shipment



Land transportation or Ship by bulk cargo ship, container, roro ship
