5000 Liters 2.5 Ton LPG Gas Station With Cylinder Refilling Scale

5000 Liters 2.5 Ton LPG Gas Station With Cylinder Refilling Scale
5000 Liters 2.5 Ton LPG Gas Station With Cylinder Refilling Scale 5000 Liters 2.5 Ton LPG Gas Station With Cylinder Refilling Scale 5000 Liters 2.5 Ton LPG Gas Station With Cylinder Refilling Scale 5000 Liters 2.5 Ton LPG Gas Station With Cylinder Refilling Scale 5000 Liters 2.5 Ton LPG Gas Station With Cylinder Refilling Scale 5000 Liters 2.5 Ton LPG Gas Station With Cylinder Refilling Scale

Large Image :  5000 Liters 2.5 Ton LPG Gas Station With Cylinder Refilling Scale

Product Details:

Place of Origin: China
Brand Name: CLW
Certification: CCC ISO ASME
Model Number: CLW5901

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: 8,890-13,850usd
Packaging Details: Naked package
Delivery Time: Within 30days after received advance payments
Payment Terms: L/C, T/T
Supply Ability: 200units/month
Detailed Product Description
After-sales Service Provided: Spare Parts Supply And Engineer Support Tanker Volume: 5CBM/5000Liters/2.5MT/2.5tons
Tank Material: Q345R/SA516 Loading Material: Propane/Liquefied Petroleum Gas/LPG
Design Pressure: 1.77MPa Medium Density: 420Kg/m³ 450Kg/m³ 460Kg/m³ 480Kg/m³ 500Kg/m³ 520Kg/m³ 540Kg/m³
Mechanical Property Test: Tensile, Strength, Impact Test Thickness Of Shell And Endplate: 10mm
Condition: New Printed Color: Customers'
Use: LPG,LPG/PROPANE Warranty: 1 Year
High Light:

2.5 Ton LPG Gas Station

,

5000 Liters LPG Gas Station

,

5000 Liters LPG Storage Tank

5000Liters 5 Cubic Meters Lpg gas Station 2.5 Metric Tons LPG Storage Tank with Cylinder Refilling Scale Accessories

Product Description

1. Skid station is used for refilling in home use cylinder in different size.
2. One Station with 2 Function: Truck Discharging & Cylinder Refilling with 1 Pump
3. Digital Filling Scale or automated filling dispenser(single nozzle or double nozzle) with Auto Filling Cut-off, Thousans of Record Keeping, net & Gross Filling
4. Pump of skid station is optional: Vane Pump & Coro-Flo Pump, Turbine Pump, Corken or Blackmer Brand.
5. Motor of skid station: ABB or SIEMENS Brand, Static-free, 380V 3 Phase, 5.5KW to 10KW
6. Pipeline of skid station: 2" Steel pipe with safety return valve, strainer, one-way valve, cut-off valves.
7. Explosive Proof Central Control Panel for whole station system
8. Other Equipment of skid station: Sunshade for filling area, Leakage Detector,ex-proof lamp,water sprinkler system

Technical Specifications

Specification of 2.5tons 5000L lpg tank
Volume of Tank 5CBM(5,000liters) 2.5ton
Filling weight(Kg) 2500
Thickness of Shell (mm) 10 mm
Thickness of Endplate (mm) 10 mm
Tank Diameter (mm) 1600 mm
Tank Dimensions (mm) (length x width x height) 3070X1620X2210mm
Material of Tank and Main Pressure Parts Carbon Steel Q345R
Filling Medium Liquefied Petroleum Gas ( Propane)
Design Pressure 1.71 MPa
Corrosion Allowance 1 mm
Medium Density 420-590 kg/ cbm
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China.
Specification of LPG Pump and Motor
Item Specification
Specification of the Motor
Model Chinese famous brand
Revolving speed 1470 r/min
Power 5.5 kw
Voltage 380 V
Protection grade Anti explosive
Specification of the hydrocarbon Pump
Model YQB15-5
Medium Liquid petroleum gas
Speed 15 m3/h
Input and Output Diameter 50 mm
Working pressure 2.0 Mpa
Working temperature -40ºC- 50ºC
Material carbon steel

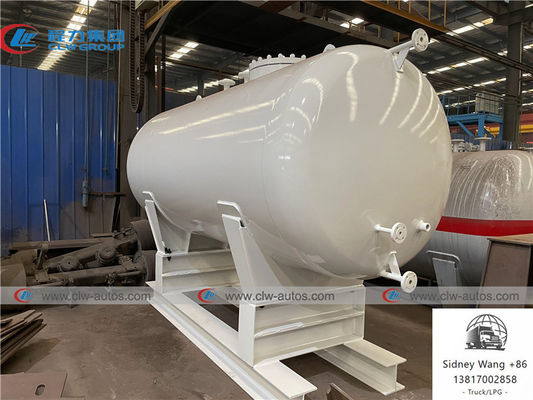

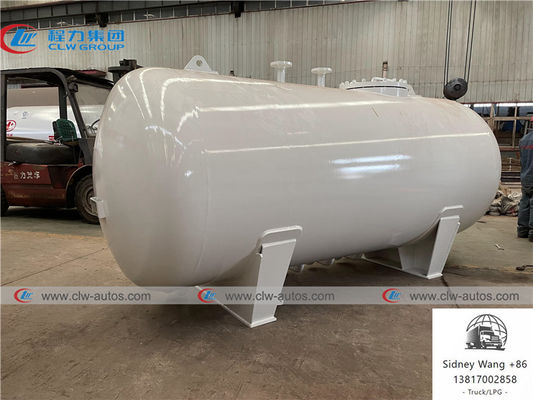

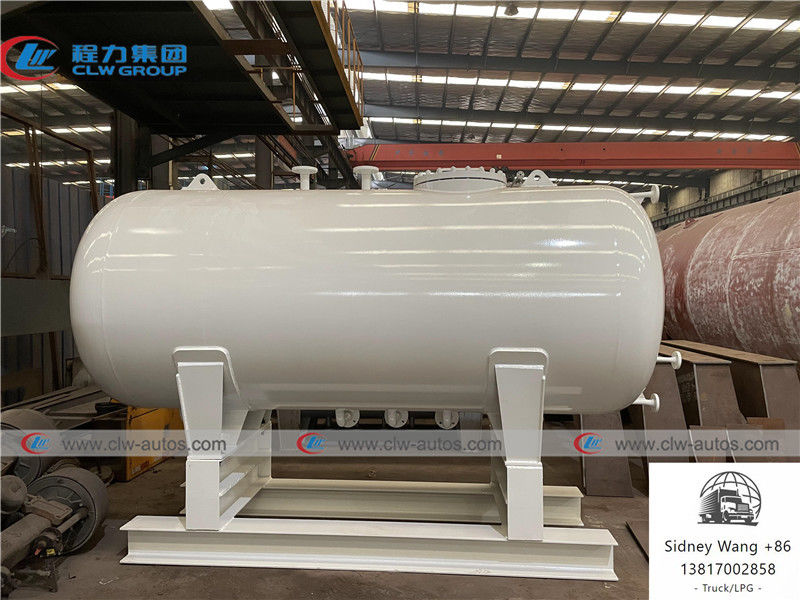

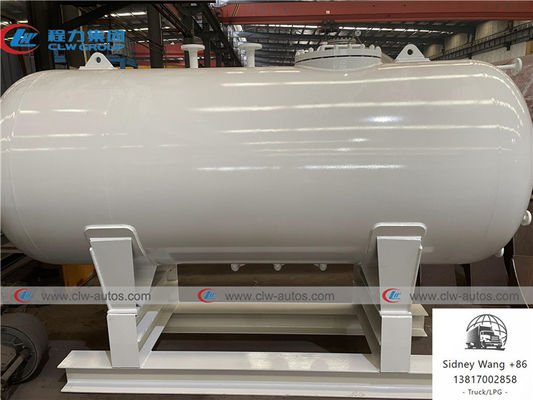

Reference photos

5000 Liters 2.5 Ton LPG Gas Station With Cylinder Refilling Scale 05000 Liters 2.5 Ton LPG Gas Station With Cylinder Refilling Scale 15000 Liters 2.5 Ton LPG Gas Station With Cylinder Refilling Scale 2

5000 Liters 2.5 Ton LPG Gas Station With Cylinder Refilling Scale 3


Tank diagram

5000 Liters 2.5 Ton LPG Gas Station With Cylinder Refilling Scale 4



Tank workshop

5000 Liters 2.5 Ton LPG Gas Station With Cylinder Refilling Scale 5

Other LPG tank/gas plant details



5000 Liters 2.5 Ton LPG Gas Station With Cylinder Refilling Scale 6



Factory overview

5000 Liters 2.5 Ton LPG Gas Station With Cylinder Refilling Scale 7

5000 Liters 2.5 Ton LPG Gas Station With Cylinder Refilling Scale 8

Sales Service



① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.



FAQ



Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tanker, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Any interests you can feel to contact us for details. Many Thanks.



Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.



Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes. The biggest size tank we ever provided is 200m3 high pressure LPG storage tank



Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!



Warranty



1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.



Spare Parts



1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.

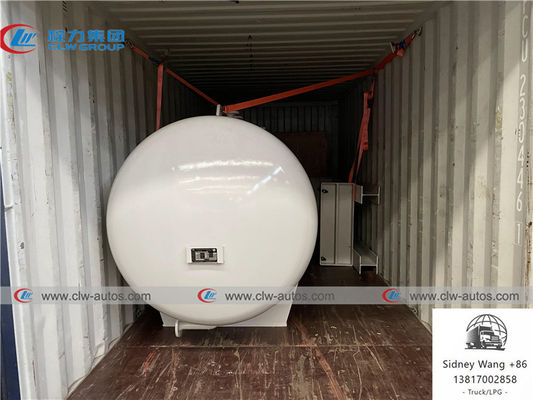

Shipment



Land transportation or Ship by bulk cargo ship, container, roro ship
