SINOTRUK HOHAN 4X2 10TONS Conjoint Towing wrecker truck Wheel Lift Tow Truck
Product Description
1. Purpose of 10ton wrecker towing trucks: wrecker/recovery truck/towing truck is used for towing broken cars, vehicle on road.
With increasing ownership of private cars,wreckers are now widly used by government organization or towing company.
2. Optional brand of 10ton wrecker towing truck: Howo,Hohan, Dongfeng, Isuzu, JAC, JMC, Foton, Shacman...
3. Spare parts of 10ton wrecker towing truck: Italy brand multi-way valve and balance valve; Gernamy Roxroth technology hydraulic cylinder and joint; imported sealing element; strengthed checked plate
4. Capacity range of wrecker towing trucks: 12ton, 15ton, 20ton, 25ton, 30ton, 40ton, 50ton
Product specifications
| Truck name | Hohan 4x2 10tons conjoint towing wrecker truck | |
| Truck Brand | CLW | |
| Cab | Sinotruk hohan, row and half cab, with power steering, with A/C | |
| Driving Type | Left hand drive | |
| Max Speed (km/h) | 95 | |
| Overall dimension(mm) | 9345*2500*3200 | |
| GVW( kg) | 18000 | |
| Wheelbase(mm) | 5800 | |
| F/R track base (mm) | 1503/1494 | |
| F/R overhang (mm) | 1040/1142 | |
| Approach/Departure Angel | 20/9 | |
| Tire | 10.00R20 | |
| Clutch | Single-plate dry diaphragm spring clutch | |
| Steering | Hydraulic steering with power assistance | |
| Gear box | 8-speed | |
| Bridge | Front axle | 7T |
| Rear axle | 13T | |
| Engine | Model | WD615.87 |
| Horse power | 290hp | |
| Displacement | 9726ml | |
| Braking system | Service Brake | Air brake |
| Park Brake | Spring energy | |
| Eletric system | 24v | |
| Towing capacity | 10,000kg | |
| Winch capacity | 5,000kg*2 | |
| Wire rope | 45m | |

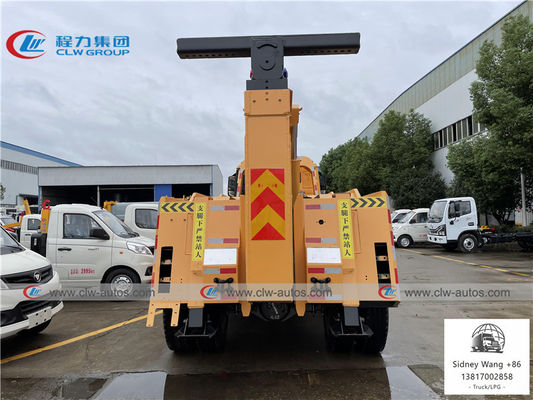

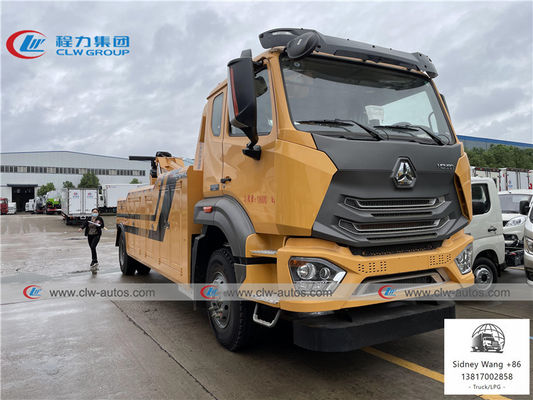

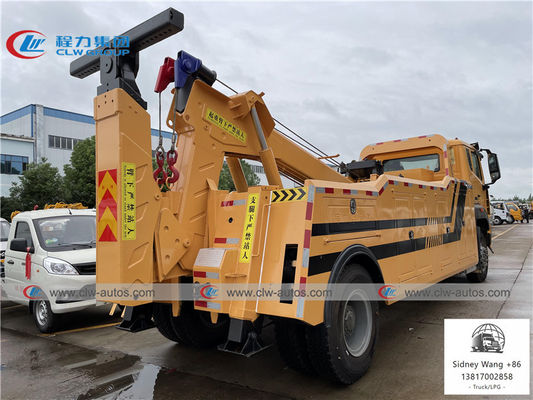

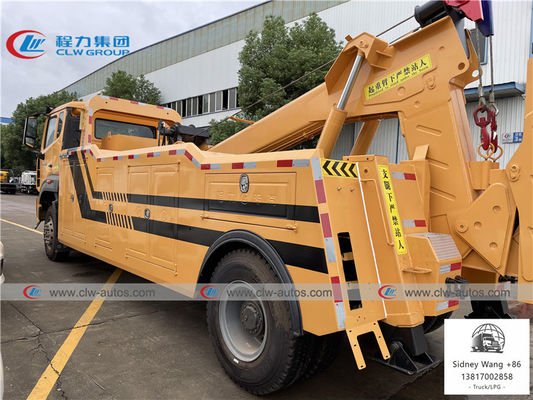

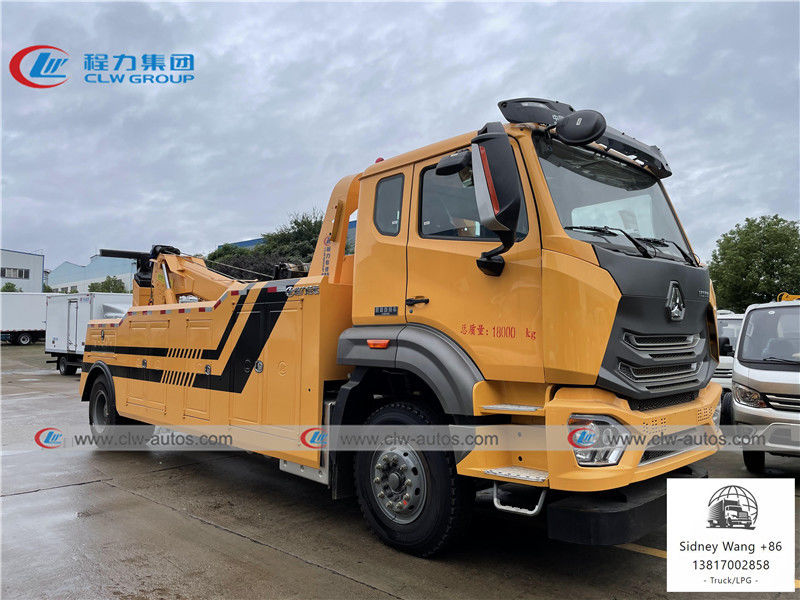

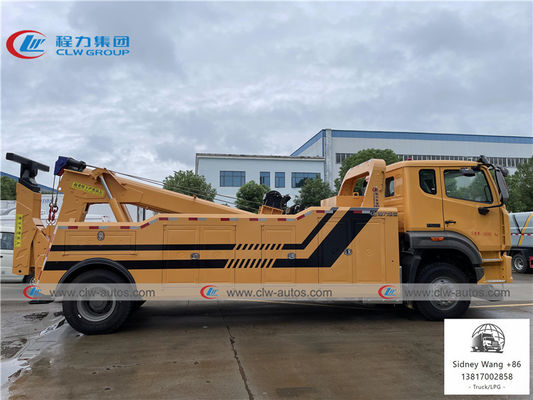

Reference Photos
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of intergrated tow truck I can order from your company?
A: There are various sizes of wheel-lift breakdown truck with different functions and different capacity,you can contact us and tell your request.We will recommend you suitable product.
Q2:: Have you supplied intergrated tow truck to any overseas companies?
A: Yes,with need of towing services,we offered wrecker trucks and wrecker superstructurer to many African,south-east Asian and south-American countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
