GB-150 Standard 30T Q345R SA516 LPG Bulk Storage Tank

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

GB-150 Standard 30T Q345R SA516 LPG Bulk Storage Tank

GB-150 Standard 30T Q345R SA516 LPG Bulk Storage Tank
GB-150 Standard 30T Q345R SA516 LPG Bulk Storage Tank GB-150 Standard 30T Q345R SA516 LPG Bulk Storage Tank GB-150 Standard 30T Q345R SA516 LPG Bulk Storage Tank GB-150 Standard 30T Q345R SA516 LPG Bulk Storage Tank GB-150 Standard 30T Q345R SA516 LPG Bulk Storage Tank

Large Image :  GB-150 Standard 30T Q345R SA516 LPG Bulk Storage Tank

Product Details:

Place of Origin: China
Brand Name: CLW
Certification: CCC ISO ASME
Model Number: CLW3656

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: 18,890-25,850usd
Packaging Details: Naked package
Delivery Time: Within 30days after received advance payments
Payment Terms: L/C, T/T
Supply Ability: 200units/month
Detailed Product Description
After-sales Service Provided: Spare Parts Supply And Engineer Support Tanker Volume: 60CBM/60000Liters/30MT/30tons
Tank Material: Q345R/SA516 Loading Material: Propane/Liquefied Petroleum Gas/LPG
Design Pressure: 1.77MPa Medium Density: 420Kg/m³ 450Kg/m³ 460Kg/m³ 480Kg/m³ 500Kg/m³ 520Kg/m³ 540Kg/m³
Mechanical Property Test: Tensile, Strength, Impact Test Thickness Of Shell And Endplate: 14-16mm
Condition: New Printed Color: Customers'
Use: LPG,LPG/PROPANE Warranty: 1 Year
High Light:

SA516 LPG Bulk Storage Tank

,

Q345R LPG Bulk Storage Tank

,

30T LPG Gas Filling Station

30tons LPG Bulk Storage Tank 60,000liters LPG Gas Filling Station LP Gas plant


Product Description

1. Storage medium of LPG Bulk Storage Tank : LPG, Liquid ammoina,Dimethyl ether,Iso-butane,Pentane and etc.

2. Available tank capacity of LPG Bulk Storage Tank: 5m³~200m³,2ton~100tons

3. Manufacturing standards of LPG Bulk Storage Tank: GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008

Product Specification



Product Description:



60000 Liter Bulk LPG Propane Butane Storage Tank LPG Gas Tanks for Sale in Africa

The liquefied petroleum gas storage tank (LPG Tank) is a pressure vessel for storing liquefied petroleum gas, and is mainly used in lpg gas storage stations and chemical enterprises.

  • Installation method: above ground and underground
  • Maximum allowable working pressure: 1.82MPa
  • Model specifications: 5m3 ~ 200m3
  • OEM AVAILABLE
  • Quality Assurance
  • Intelligent production mode
  • Leading the industry
  • Fast delivery
  • Every detail is strictly checked
1. LPG Tank Storage Content: LPG Gas, Propane, Butane, Liquid Ammonia, etc
2. Tank Design Standard: GB150-2013, ASME Standard with U STAMP.
3. Test: 100% Radiaographic Test, Magnetic Power Test, Water Pressure.


Product Specifications

Technical Specification
Item Name Unit Parameter
1 Product model / LPG storage tank
2 Vessel type / On the ground
3 Tank Volume m3 60
4 Filling medium / LPG / propane gas
5 Filling coefficient Kg/ m³ 420/560
6 Tanker material / Q345R
7 Overall dimension mm 10962*2728*3318
8 Tank inner diameter mm 2700

9
Thickness End plates mm 16
Shell body mm 14
10 Curb weight kg 12750
11 Filling medium weight kg 23940
12 Corrosion allowance mm 1
13 design pressure Mpa 1.71
14 Hydrostatic test pressure MPa 2.22
15 Designing temperature °C -19~50
16 Produce Manufacturing standards / GB150-20
17 Certification / ISO 9001-2015
Production process control 1. Steel Plate Cutting &Rolling
2. Tanker Body Welding
3. X-ray Welding Seam Detection
4. Whole Tanker Heat Treatment
5. Rust, Sand Blasting, Puttying
6. Water Pressure Test
7. Painting: primer, finish, lacquer

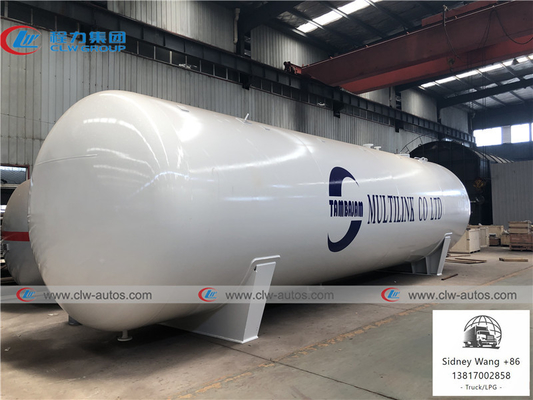

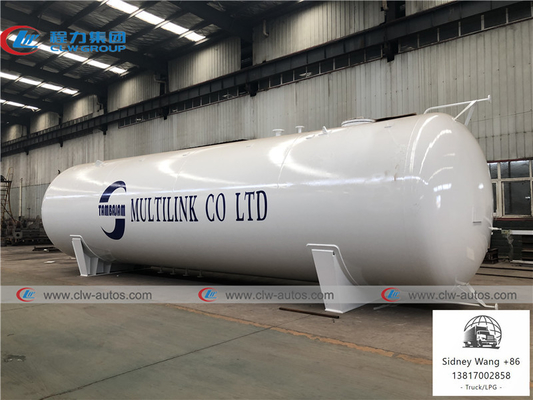

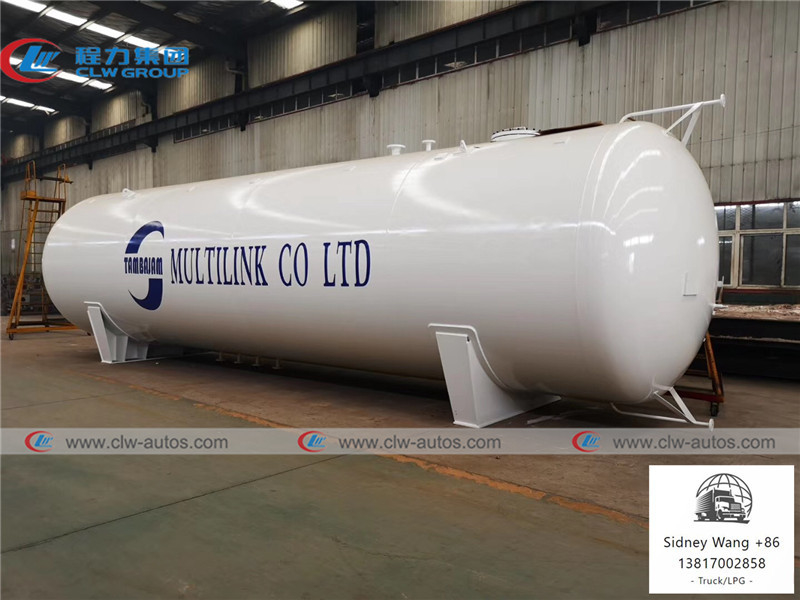

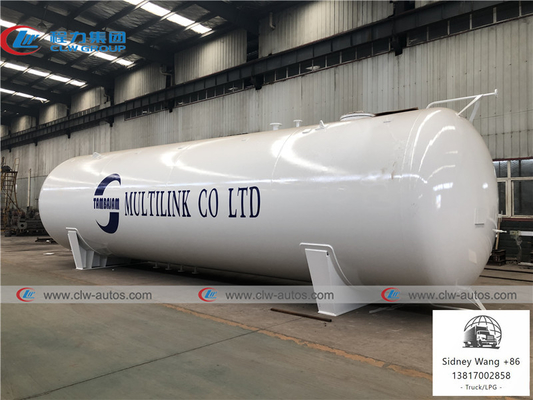

Reference photos

GB-150 Standard 30T Q345R SA516 LPG Bulk Storage Tank 0GB-150 Standard 30T Q345R SA516 LPG Bulk Storage Tank 1

GB-150 Standard 30T Q345R SA516 LPG Bulk Storage Tank 2



Tank diagram

GB-150 Standard 30T Q345R SA516 LPG Bulk Storage Tank 3



Tank workshop

GB-150 Standard 30T Q345R SA516 LPG Bulk Storage Tank 4

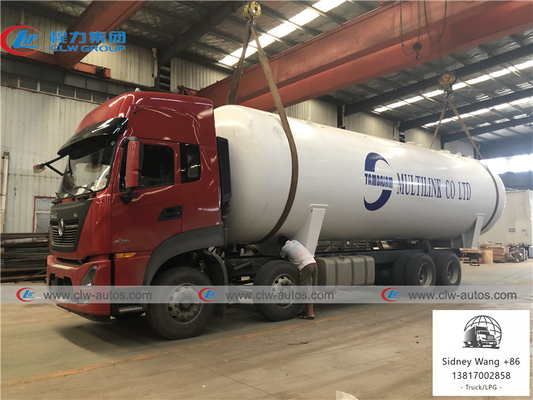

Other LPG tank/gas plant details



GB-150 Standard 30T Q345R SA516 LPG Bulk Storage Tank 5



Factory overview

GB-150 Standard 30T Q345R SA516 LPG Bulk Storage Tank 6

GB-150 Standard 30T Q345R SA516 LPG Bulk Storage Tank 7



Sales Service



① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.



FAQ



Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tanker, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Any interests you can feel to contact us for details. Many Thanks.



Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.



Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes. The biggest size tank we ever provided is 200m3 high pressure LPG storage tank



Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!



Warranty



1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.



Spare Parts



1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
