25000L 12.5MT Explosion Proof LPG Cylinder Refilling Plant

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

25000L 12.5MT Explosion Proof LPG Cylinder Refilling Plant

25000L 12.5MT Explosion Proof LPG Cylinder Refilling Plant
25000L 12.5MT Explosion Proof LPG Cylinder Refilling Plant 25000L 12.5MT Explosion Proof LPG Cylinder Refilling Plant 25000L 12.5MT Explosion Proof LPG Cylinder Refilling Plant 25000L 12.5MT Explosion Proof LPG Cylinder Refilling Plant 25000L 12.5MT Explosion Proof LPG Cylinder Refilling Plant 25000L 12.5MT Explosion Proof LPG Cylinder Refilling Plant

Large Image :  25000L 12.5MT Explosion Proof LPG Cylinder Refilling Plant

Product Details:

Place of Origin: SUIZHOU, HUBEI, CHINA
Brand Name: CLW
Certification: ISO9001, CCC, BV, SGS
Model Number: CLW20211012

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiated
Packaging Details: Naked or Waxed before delivery
Delivery Time: 40-45 days after receiving the deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 units per month
Detailed Product Description
Tank Material: Q345r Or Q370r Carbon Steel For Pressure Vessel Loading Capacity: 12.5t 12.5ton 12tons 12.5mt LPG Gas Refilling Plant Station
Tank Size: 25 M3, 25cbm, 25000 Liters, 25000L Design Pressure: 1.71MPa 1.77MPa 17.1bar, 17.7bar
Hydraulic Test Pressure: 2.21MPa 22.1bar Filling Medium: Propane, Butane, LPG, Cooking Gas
Level Gauge: Magnetic Plate Level Gaue, Float-Ball Diameter: 2000mm, 2100mm
Other Accessories: LPG Pump & Motor, LPG Compressor Filling Parts: LPG Filling Weight Scale, LPG Dispenser With One Or Double Nozzlers
Production Name: LPG Skid Station, Refilling Cylinder Filling Pump Brand: Corken, Blackmer, Chinese Brand
Capacity: 20m3,Customized After-sales Service Provided: Engineers Available To Service Machinery Overseas,Field Maintenance And Repair Service,Field Installation,Overseas Service Center Available
Use: LPG,LPG/PROPANE Product Name: Lpg Filling Tank,Favorable Price LPG Tank Compressed Gas Pressure Vessels For Lpg
High Light:

Explosion Proof LPG Cylinder Refilling Plant

,

12.5MT LPG Cylinder Refilling Plant

,

25000L LPG Gas Storage Tank

25000L 12.5MT Explosion Proof Mobile LPG Tank Skid Station LPG Cylinder Refilling Plant





ASME Explosion-Proof Moblie 20000L 10MT 10Tons LPG Cylinder Refilling Skid Station



Product Description



lpg refilling plant (also called gas refilling plant,cylinder refilling plant,lpg refilling plant,cylinder refilling station,lpg skid station,skid lpg station,propane skid station,propane bottling plant) is a completed mini lpg station composed with lpg tank,lpg pump and motor,cylinder weighting and filling machine,valves and pipeline.Propane refilling station is used to refill cylinders,suitable for limited land space.Usually 5tons and 10tons propane refilling station will be located next to a fuel refilling station and offer cylinder bottling service.

Feature

1. lpg refilling plant for cooking gas refilling in home use cylinder in different size.
2. One Propane refilling plant with 2 Function: Truck Discharging & Cylinder Refilling with 1 Pump
3. Digital Filling Scale with Auto Filling Cut-off, Thousans of Record Keeping, net & Gross Filling
4. Pump of Propane refilling plant is optional: Vane Pump & Coro-Flo Pump, Turbine Pump, Corken or Blackmer Brand.
5. Motor of Propane refilling plant: ABB or SIEMENS Brand, Static-free, 380V 3 Phase, 5.5KW to 10KW
6. Pipeline: 2" Steel pipe with safety return valve, strainer, one-way valve, cut-off valves.
7. Explosive Proof Central Control Panel for whole station system
8. Other Equipment: Sunshade for filling area, Leakage Detector,ex-plosive lamp







Product Specification;



Tank Technical parameter:

20CBM LPG TANK DIMENSIONS
Volume of Tank 25CBM
Filling Weight 12500 kg
Tank Weight 6120 kg
Thickness of Shell (mm) 10 mm
Thickness of Endplate (mm) 12 mm
Tank Diameter (mm) 1800 mm
External Dimensions (mm) (length x width x height) As designed
Overall Skid Size As designed
Material of Tank and Main Pressure Parts Carbon Steel Q345R
Filling Medium Liquefied Petroleum Gas ( Propane)
Design Pressure 1.77 MPa
Test Pressure 2.22 Mpa
Corrosion Allowance 1 mm
Medium Density 420-590 kg/ cbm
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China.
Main parts of LPG Tank
Item Specification/ mm Quantity
Discharge Pipe DN50-2" 1
Inflow Pipe DN50-2" 1
Outlet DN50-2" 1
Gas phase balance pipes DN50-2" 1
Manhole DN450 1
Drain Hole DN50-2" 1
Other accessories:Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge.



Skid Filling Room Technical parameter:



LPG Skid Part list
Item Model Number Quantity
LPG Tank LPG Storage Tank with tank accessories 1 piece
LPG Filling Pump 2" inlet& outlet, 5.5KW, 380V/50Hz, Ex-proof, 1 Piece
Cylinder Filling Scale/Dispenser Can fill 3kg to 150kg LPG cylinder 1 Piece
Leakage Detector Leakage warning detector 1 Unit
Pipes / 1 sets
Cut-off Valve J41N-40 DN50 5 Pieces
Ball Vavle DN50 8 Piece
Safety Valve A42F-25 DN50 1 Piece
Pipe Safety Valve A21F-25 DN15 1 Piece
Ball floating level gauge UQZ-2.5P 1 Piece
Discharging pipe L=4M DN50/DN25 1 Piece
Shock-absorbing Tube L=500mm DN50 2 Pieces
Flange 2.5MPaDN15 20 Pieces
Pressure Gauge 0 ~4Mpa

1 Piece

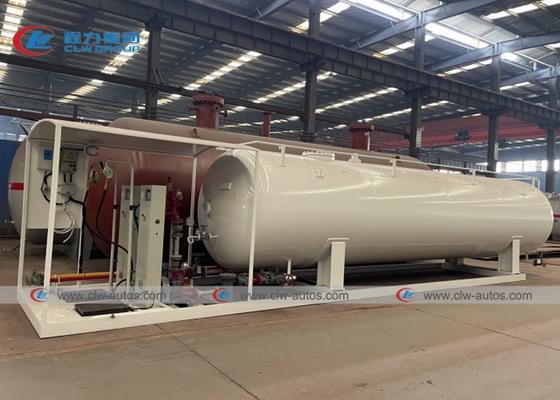

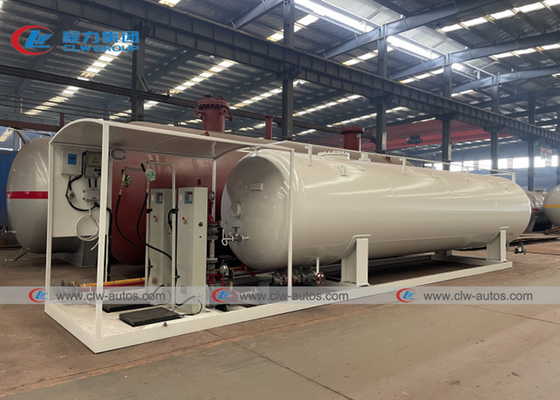

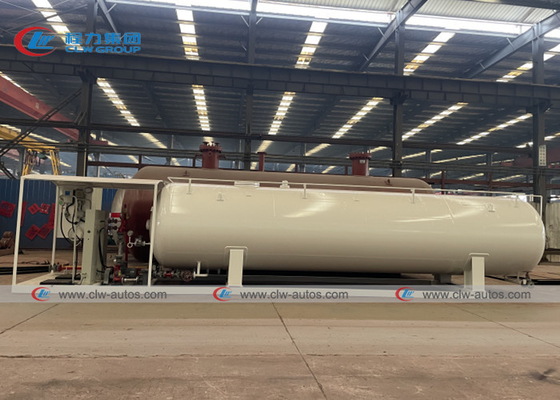

Product 20000Liters LPG skid station's pictures:

25000L 12.5MT Explosion Proof LPG Cylinder Refilling Plant 025000L 12.5MT Explosion Proof LPG Cylinder Refilling Plant 125000L 12.5MT Explosion Proof LPG Cylinder Refilling Plant 225000L 12.5MT Explosion Proof LPG Cylinder Refilling Plant 325000L 12.5MT Explosion Proof LPG Cylinder Refilling Plant 425000L 12.5MT Explosion Proof LPG Cylinder Refilling Plant 5

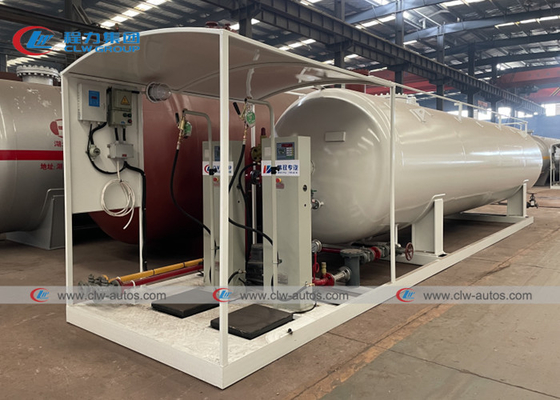

Pictures of LPG gas plant with the accessories:

25000L 12.5MT Explosion Proof LPG Cylinder Refilling Plant 6

Production Process for LPG storage tank:

25000L 12.5MT Explosion Proof LPG Cylinder Refilling Plant 7



Feature

-- The welding joints, welds, tank heads and geometric positions of each pressure element are strictly inspected by X-ray;

-- non-destructive testing and magnetic particle inspection test for each Underground LPG tank;

-- Design pressure of Underground LPG tank: 1.77Mpa;

-- hydraulic testing pressure:2.21 Mpa;

-- Corrosion allowance: 1mm;

-- Optional for tank accessories and lpg gas station equipments such as safety valve,globe valve,ball valve,pressure gauge,thermometer,magnetic level guage or rochester float-ball level gauge,lpg pump and motor,lpg compressor,lpg flow meter,cylinder filling scales,strainer,glass valve and so on.



Our Service

1) Quick feedback to solve your questions;
2) Professional engineering and production team;
3) Related Accessories and spare parts offered,no future worries;
4) Regular customer after-sale visiting;
5) Free technical staff training and guidance;
6) Reasonable price and good quality;
7) Quick delivery and shipment.
