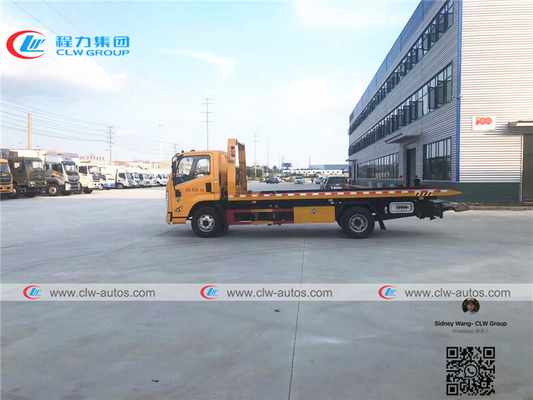

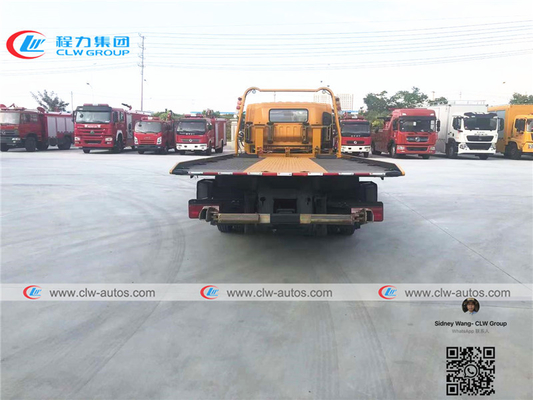

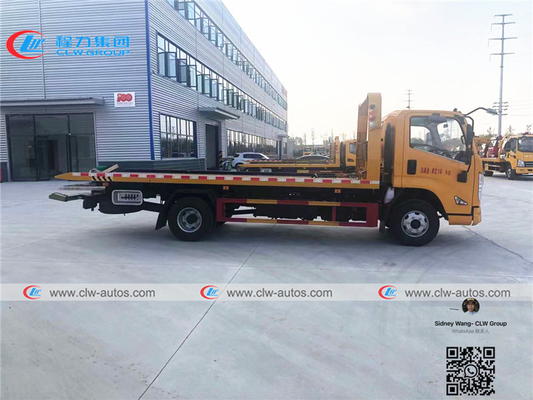

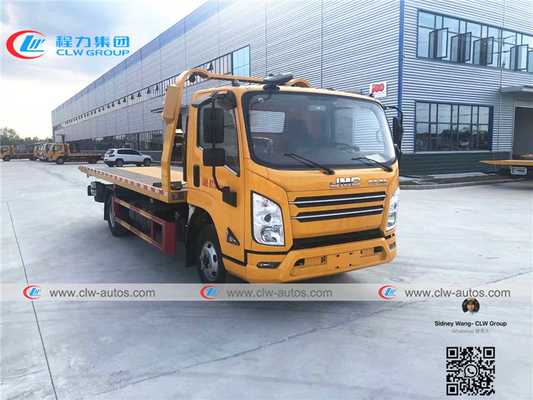

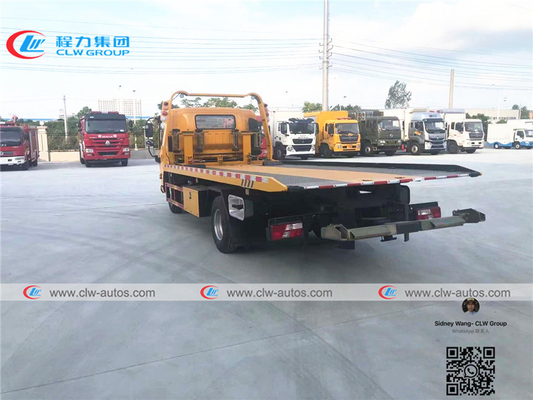

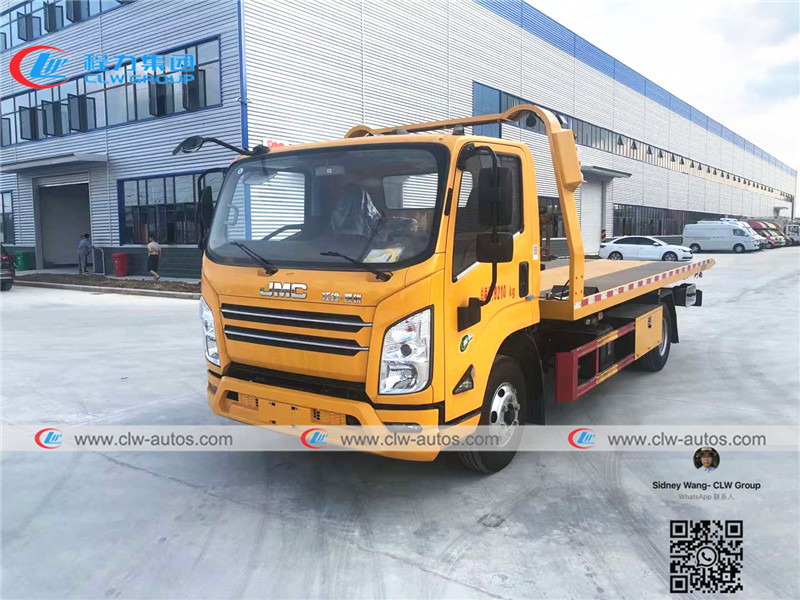

JMC/JAC/Dongfeng/Howo/Foton/FAW Customized Platform Wrecker Flatbed Tow Trucks Road recovery truck
Description
1. According to the payload, there are light duty tow truck, middle duty tow truck and heavy duty tow truck to suit for different types of motor vehicle.
2. The heavy duty tow truck could rescue the construction trucks, city bus and other types of heavy duty vehicles.
3. The heavy duty tow truck has a rotate crane or boom, lifting capacity reaches 30tons.
4. The wheel lift organ on the heavy duty tow truck could be more than 20 tons and the total towing capacity is more than 40 tons.
5. Hubei Huilong Special Vhielce is experienced in making different types of wrecker tow truck.
6. We have different brands of truck chassis to make the wrecker tow truck.
7. The tow truck chassis are SINOTRUK HOWO, Dongfeng, Faw, ISUZU, JAC, JMC etc.
Specification
| General Technical Specification | |||||
| Overall Dimension | 5997x2300x2220(mm) | ||||
| Gross Vehicle Weight | 4495 (Kg) | ||||
| Curb Weight | 3600(Kg) | ||||
| Chassis Specification | |||||
| Chassis Brand | JMC | ||||
| Drive model | 4*2 | ||||
| Cabin | Single, Left Hand Drive | ||||
| Engine | Model | 4-stroke direct injection, 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | |||
| Power | 120HP | ||||
| Emission standard | EURO 2 or 3 | ||||
| Displacement | 3707(ml) | ||||
| Fuel type | Diesel | ||||
| Gearbox | 5 Forwards & 1 Reverse, Power steering, hydraulic steering with power assistance | ||||
| Brake System | Pneumatic(Air break/exhaust brake) | ||||
| Wheel Base | 3308(mm) | ||||
| Front/Rear Axle Loading | 3000/3500(Kg) | ||||
| Approach/Departure Angle | 24/12(°) | ||||
| Tire | 7.00R16, 6pcs + 1 spare tire | ||||
| Max Driving Speed | 105(km/h) | ||||
| Superstructure Specification | |||||
| Platform | Dimension | 4200*2320(mm) | |||
| Rear manual flip board length | 1200(mm) | ||||
| Material | Q235 carbon steel | ||||
| Max Loading capacity | 5000(kg) | ||||
| Winch | Quantity | 1 | |||
| Winch rating towing capacity | 4000(kg) | ||||
| Length of steel rope | 25(m) | ||||
| Speed of winch | 3.23~8 (m/min) | ||||
| Other parts | Auxiliary wheels, alarm light, hooks, 4 bundling belt, automatic sliding plate, etc. | ||||
| Options | Caution light, air condition, inlet valve. | ||||
| Item No. | Name |
| 1 | chassis |
| 2 | Warning lamp |
| 3 | Single lamp(white-front clearance lamp;red-rear clearance lamp |
| 4 | Winch and steel rope |
| 5 | Loading plate |
| 6 | Side signal lamp |
| 7 | Chain hook |
| 8 | Wheel lift |
| 9 | “L” bracket |
| 10 | Operation and hydraulic system |
| 11 | Auxiliary wheel |
| 12 | Side guard rail |
| 13 | Tool box and accessories |
| 14 | PTO and oil pump |
| 15 | Witch and operation handle of PTO |
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of wrecker trucks I can order from your company?
A: There are various sizes of wrecker trucks with different functions and different capacity,you can contact us and tell your request.We will recommend you suitable product.
Q2: Have you supplied sweeper products to any overseas companies?
A: Yes,with need of towing services,we offered wrecker trucks and wrecker superstructurer to many African,south-east Asian and south-American countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
After Sales Service
Email & Phone call tracking for each truck on timely manners.
