HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Home ProductsWrecker Tow Truck

SINOTRUK HOWO 8x4 Conjoint Integrated Wrecker Tow Truck

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

SINOTRUK HOWO 8x4 Conjoint Integrated Wrecker Tow Truck

SINOTRUK HOWO 8x4 Conjoint Integrated Wrecker Tow Truck
SINOTRUK HOWO 8x4 Conjoint Integrated Wrecker Tow Truck SINOTRUK HOWO 8x4 Conjoint Integrated Wrecker Tow Truck SINOTRUK HOWO 8x4 Conjoint Integrated Wrecker Tow Truck SINOTRUK HOWO 8x4 Conjoint Integrated Wrecker Tow Truck SINOTRUK HOWO 8x4 Conjoint Integrated Wrecker Tow Truck SINOTRUK HOWO 8x4 Conjoint Integrated Wrecker Tow Truck

Large Image :  SINOTRUK HOWO 8x4 Conjoint Integrated Wrecker Tow Truck

Product Details:

Place of Origin: SUIZHOU,CHINA
Brand Name: CLW
Certification: CCC SGS BV
Model Number: CLW5702

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: negotiable
Packaging Details: naked,waxed,bulk ship,ro-ro
Delivery Time: 40 days after receiving deposit at account
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 Units per month
Detailed Product Description
Chassis Brand: DONGFENG,ISUZU,FAW,HOWO,JAC,JMC Towing Capacity: 30t,30tons,30tons,40t,40tons,40ton,50t,50tons,50ton
Color: White,yellow,Blue As Customized Steering: LHD And RHD
Engine: 290hp,336hp,371hp Wrecker Type: One-towing-two,one-towing-one
High Light:

Conjoint Integrated Wrecker Tow Truck

,

SINOTRUK HOWO 8x4 Wrecker Tow Truck

,

SINOTRUK HOWO 8x4 Wrecker Towing Truck

SINOTRUK HOWO 8x4 Heavy duty 30tons 50tons conjoint integrated towing and lifting wrecker truck road recovery rescue truck with wrecker equipment




Description


1. Purpose of Recovery Truck: wrecker/recovery truck/towing truck is used for towing break-down cars or vehicle or bus or trailers on road.With increasing ownership of private cars,wreckers are now widly used by government organization or towing company.
2. Optional brand of Recovery Truck :howo,Dongfeng,Isuzu,JAC,JMC,Foton,Shacman...
3. Spare parts of Recovery Truck : Italy brand multi-way valve and balance valve; Gernamy Roxroth technology hydraulic cylinder and joint; imported sealing element; strengthed checked plate
4. Capacity range of Recovery Truck:3ton, 4ton, 5ton, 6ton, 8ton, 12ton, 16ton, 20ton, 25ton, 31ton, 40ton, 50ton
5. Fifth wheel attachment is optional for towing trailers as follows



Specification

Cabin

Driving type 8x4



HW76 Cab, with A/C and one bed, 70°hydraulically tillable to the front as attached photo for ref.
Vehicle Main Dimensions Overall dimensions (L x W x H)mm 11200×2500×3600
Wheel base (mm) 1800+4600+1350
Wheel track (front/rear) (mm) 2022/1830
Weight in KGS Tare Weight(KGS) 15000
Front axles loading capacity(KGS) 2x7000
Rear axles loading capacity(KGS) 2x16000
Max. driving speed(km/h) 95
Engine Brand SINOTRUK
Model WD615.69
Type 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
Horse Power(HP) 336HP
Emission standard Euro 2
Gearbox HW19710,10-speed forward and 2 reverse gear
Steering ZF8098 power steering, hydraulic steering with power assistance
Clutch Reinforced diaphragm clutch, diameter 430mm
Fuel tank (L) 400
Tire 12R22.5 tubeless tyre 13 pcs including one spare tire
Specialized Device

Hoisting Organ Rated under-hoisting capacity(kg) 15000
Max under-pulling capacity(kg) 40000
Max Under-hoist length (mm) 1630
Under hoisting work angle -10~85°
Max lifting capacity(kg) 30000
Max lifting high(mm) 12000

Lifting organ



Lift-hoist telescope length(mm) 3000+3000
Winch Pulling capacity 15000kgs-25000kgs, 2pcs
Length of steel 50-60M
Landing leg Distance between front legs(mm) 6100
Distance between rear legs(mm) 4200

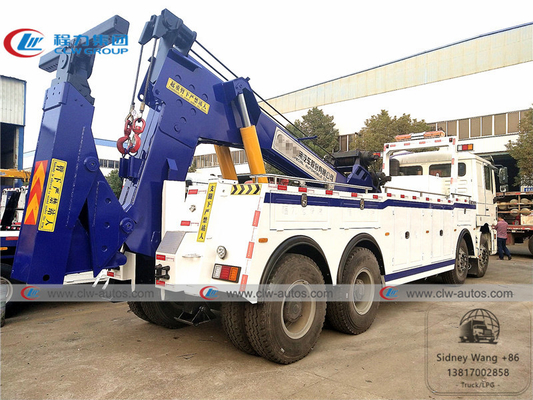

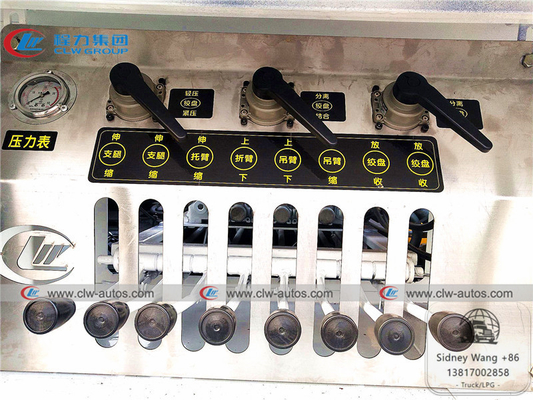

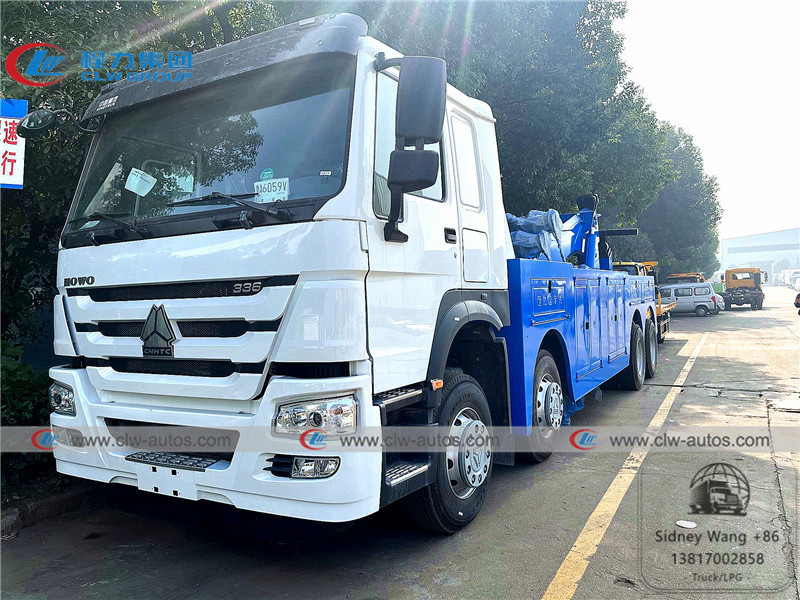

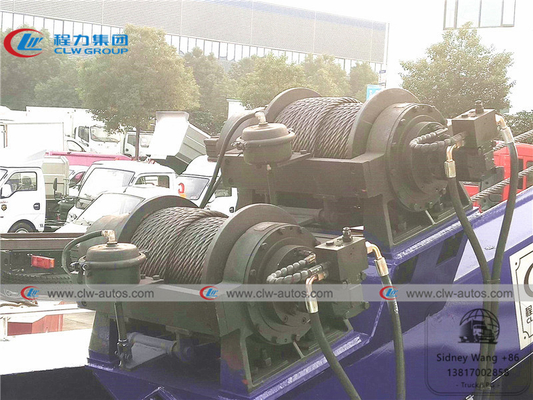

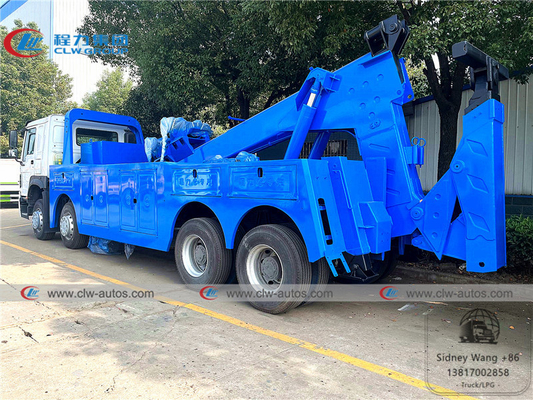

Reference photos
SINOTRUK HOWO 8x4 Conjoint Integrated Wrecker Tow Truck 0SINOTRUK HOWO 8x4 Conjoint Integrated Wrecker Tow Truck 1SINOTRUK HOWO 8x4 Conjoint Integrated Wrecker Tow Truck 2SINOTRUK HOWO 8x4 Conjoint Integrated Wrecker Tow Truck 3

Wrecker tow truck working show

SINOTRUK HOWO 8x4 Conjoint Integrated Wrecker Tow Truck 4
SINOTRUK HOWO 8x4 Conjoint Integrated Wrecker Tow Truck 5

Customer visiting
SINOTRUK HOWO 8x4 Conjoint Integrated Wrecker Tow Truck 6
Factory overview
SINOTRUK HOWO 8x4 Conjoint Integrated Wrecker Tow Truck 7
SINOTRUK HOWO 8x4 Conjoint Integrated Wrecker Tow Truck 8

Our Service

  • Quick feedback to solve your questions

  • Professional engineering and production team

  • Related Accessories and spare parts offered,no future worries

  • Regular customer after-sale visiting

  • Free technical staff training and guidance

  • Reasonable price and good quality

  • Quick delivery and shipment

FAQ



Q1: What kinds of wrecker trucks I can order from your company?


A: There are various sizes of wrecker trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.



Q2: Have you supplied sweeper products to any overseas companies?


A: Yes,with need of towing services,we offered wrecker trucks and wrecker superstructurer to many African,south-east Asian and south-American countries.



Q3 What about warranty?


A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q5: Where is your factory? How far from Shanghai to your factory?


A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.



Warranty



1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the

installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the

products arriving at destination safely.



Spare Parts



1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.



After Sales Service



Email & Phone call tracking for each truck on timely manners.



Shipment



Land transportation or Ship by bulk cargo ship, container, roro ship
