Dongfeng Tianjin Kingrun VR 4x2 210HP 10T Flatbed Wrecker Tow Truck

Dongfeng Tianjin Kingrun VR 4x2 210HP 10T Flatbed Wrecker Tow Truck
Dongfeng Tianjin Kingrun VR 4x2 210HP 10T Flatbed Wrecker Tow Truck Dongfeng Tianjin Kingrun VR 4x2 210HP 10T Flatbed Wrecker Tow Truck Dongfeng Tianjin Kingrun VR 4x2 210HP 10T Flatbed Wrecker Tow Truck Dongfeng Tianjin Kingrun VR 4x2 210HP 10T Flatbed Wrecker Tow Truck Dongfeng Tianjin Kingrun VR 4x2 210HP 10T Flatbed Wrecker Tow Truck Dongfeng Tianjin Kingrun VR 4x2 210HP 10T Flatbed Wrecker Tow Truck

Large Image :  Dongfeng Tianjin Kingrun VR 4x2 210HP 10T Flatbed Wrecker Tow Truck

Product Details:

Place of Origin: Suizhou, China
Brand Name: CLW
Certification: CCC,ISO,GCC,DOT
Model Number: CLW5707
Detailed Product Description
High Light:

Dongfeng Tianjin Kingrun VR Tow Truck

,

210HP Wrecker Tow Truck

,

10T Flatbed Tow Truck

Dongfeng Tianjin Kingrun VR 210HP 10tons Flatbed Wrecker tow Truck 4X2 road towing recovery truck





Product Description

1) 10Tons Wrecker Truck for Towing Broken Cars or Equipments.

2) Dongfeng Brand Chassis for Euro 3 / Euro 4 / Euro 5/ Euro 6 Emission

3) Spare parts of 10tons wrecker tow truck:

  • Italy brand multi-way valve and balance valve;
  • Gernamy Roxroth technology hydraulic cylinder and joint;
  • International Brand Sealing elements;
  • Strengthed Checked platform.

Specification

Classification Item Unit Parameter
Vehicle Vehicle model   Dongfeng Kingrun 10tons flatbed wrecker tow truck
Overall dimensions mm 10600×2550×2830
Tablet Size 7200×2480
GVW kg 18000
Curb weight 13280
Traction system   4×2
Transmission   6-speed with over drive
Max speed km/h 90
Chassis Chassis model   DFH1180EX8
Number of springs   8/9+7
Wheel base mm 5800
Tire specification   10.00R20
Number of tires   6+1 spare
F/R track base mm 1860/1860
Engine Engine model   B6.2NS6B210
Manufacturer   Dongfeng Commercial Vehicle CO.,LTD
Engine horse power hp 210
Displacement ml 6200
Emission standard   Euro 4-6
Lift function
Rated lift quality 10000 kg Corbel telescopic stroke 1200 mm
Max effective length 1300 mm Max tractor speed 40 km/h
Tablet Agency
Tablet Size(LxW) 7200×2480mm Min inclination angle 10°
working stroke 2700 mm Max load mass 10000 kg
Winch parameters
Number 1 Rated traction mass 7000 kg
Rope length 25 m Strand speed 8 m / min

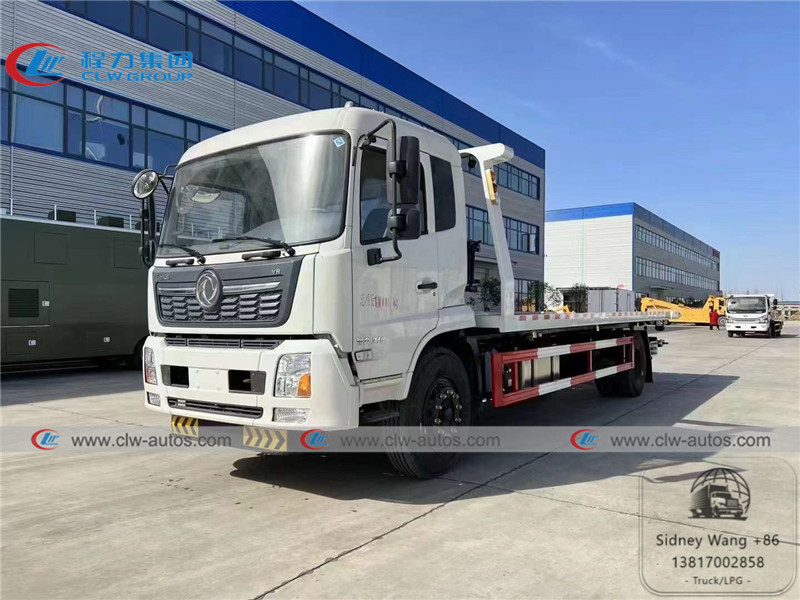

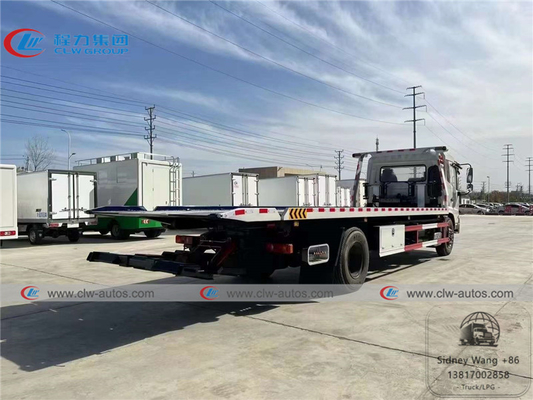

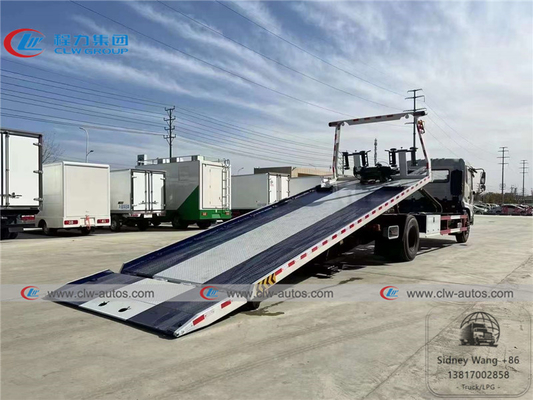

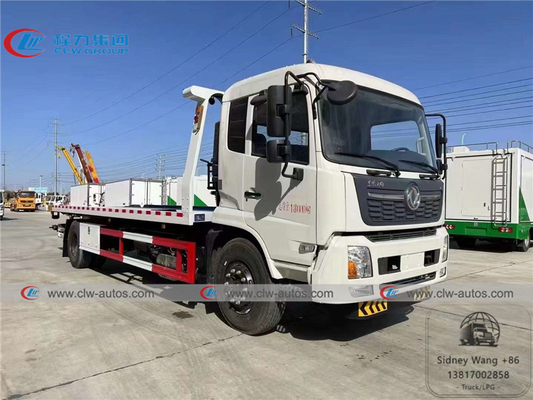

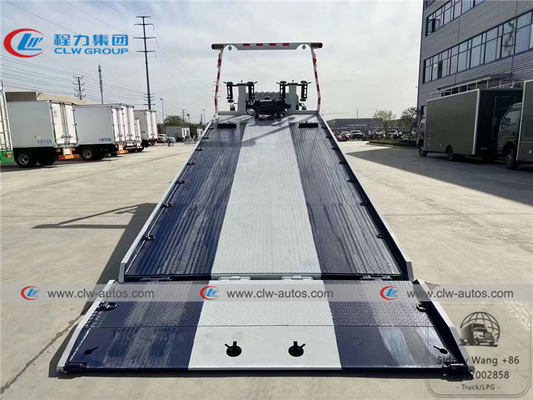

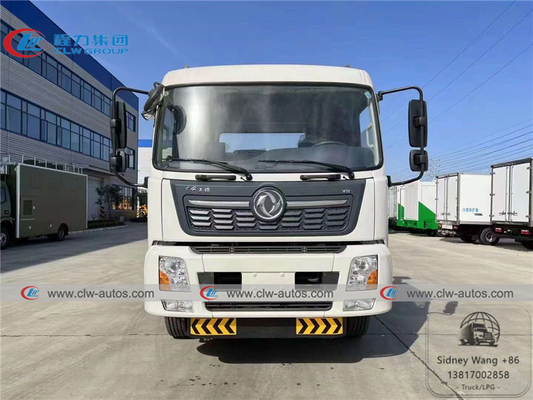

Reference photos

Dongfeng Tianjin Kingrun VR 4x2 210HP 10T Flatbed Wrecker Tow Truck 0Dongfeng Tianjin Kingrun VR 4x2 210HP 10T Flatbed Wrecker Tow Truck 1

Dongfeng Tianjin Kingrun VR 4x2 210HP 10T Flatbed Wrecker Tow Truck 2Dongfeng Tianjin Kingrun VR 4x2 210HP 10T Flatbed Wrecker Tow Truck 3

Structure drawing


Dongfeng Tianjin Kingrun VR 4x2 210HP 10T Flatbed Wrecker Tow Truck 4

Item No. Name
1 chassis
2 Warning lamp
3 Single lamp(white-front clearance lamp;red-rear clearance lamp
4 Winch and steel rope
5 Loading plate
6 Side signal lamp
7 Chain hook
8 Wheel lift
9 “L” bracket
10 Operation and hydraulic system
11 Auxiliary wheel
12 Side guard rail
13 Tool box and accessories
14 PTO and oil pump
15 Witch and operation handle of PTO

Dongfeng Tianjin Kingrun VR 4x2 210HP 10T Flatbed Wrecker Tow Truck 5

Dongfeng Tianjin Kingrun VR 4x2 210HP 10T Flatbed Wrecker Tow Truck 6

Factory overview

Dongfeng Tianjin Kingrun VR 4x2 210HP 10T Flatbed Wrecker Tow Truck 7

Dongfeng Tianjin Kingrun VR 4x2 210HP 10T Flatbed Wrecker Tow Truck 8

Our Service

  • Quick feedback to solve your questions

  • Professional engineering and production team

  • Related Accessories and spare parts offered,no future worries

  • Regular customer after-sale visiting

  • Free technical staff training and guidance

  • Reasonable price and good quality

  • Quick delivery and shipment



FAQ



Q1: What kinds of wrecker trucks I can order from your company?


A: There are various sizes of wrecker trucks with different functions and different capacity,you can contact us and tell your request.We will recommend you suitable product.



Q2:: Have you supplied sweeper products to any overseas companies?


A: Yes,with need of towing services,we offered wrecker trucks and wrecker superstructurer to many African,south-east Asian and south-American countries.



Q3 What about warranty?


A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q5: Where is your factory? How far from Shanghai to your factory?


A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.



Warranty



1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.



Spare Parts



1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.



Shipment



Land transportation or Ship by bulk cargo ship, container, roro ship



After Sales Service



Email & Phone call tracking for each truck on timely manners.
