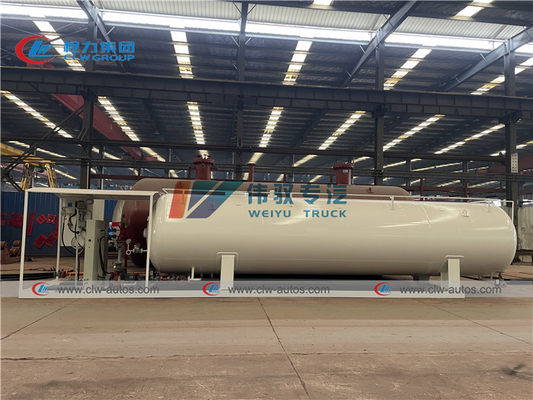

Skid Mounted 10T LPG Gas Cylinder Filling Station

Skid Mounted 10T LPG Gas Cylinder Filling Station
Skid Mounted 10T LPG Gas Cylinder Filling Station

Large Image :  Skid Mounted 10T LPG Gas Cylinder Filling Station

Product Details:

Place of Origin: Suizhou,China
Brand Name: CLW
Certification: CCC ISO ASME
Model Number: CLW96200vcx

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiable
Packaging Details: Naked package
Delivery Time: Within 30days after received advance payments
Payment Terms: L/C, T/T
Supply Ability: 200units/month
Detailed Product Description
Material: Q345R/Q370R/ASME Carbon Steel Condition: New Produced
Capacity: 20cbm,10tons, 10mt, 20,000Liters, 20m3 LPG Pump: 2 Units ,Chinese Brand
Filling Scale: 2 Unit, For Cylinder Refilling Volume: Customers' Request
Use: Cylinder Refilling, Retail Color: Customized LOGO
Warranty: 1 Year Service Time: 15 Years
High Light:

10T LPG Gas Cylinder Filling Station

,

Gas Cylinder Filling LPG Skid Station

,

10T LPG Skid Station

LPG Skid Station 10tons LPG Gas Cylinder Filling Station For Namibia





Product Description



1. Storage medium of LPG Gas Filling Plant : LPG, Liquid ammoina,Dimethyl ether,Iso-butane,Pentane and etc.

2. Available tank capacity of LPG Gas Filling Plant : 5000liters,10000liters,12000liters,20000liters,25000lliters,32000liters...

3. Manufacturing standards of LPG Gas Filling Plant : GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008

4. Optional parts of LPG Gas Filling Plant :corken or blackmer pump and abb motor,lpg dispenser,lpg cylinder filling scale,Rochester level gauge,volume flow meter...





Specification of 10tons LPG skid station



Parameter of 10tons LPG gas tank
ITEM PARAMETER ITEM PARAMETER
Volume 20cbm Thickness of Shell 12mm
Tank Material Q345R Thickness of End plate 12mm
Overall Size 6154*2124*2714 mm Tank Net Weight 5150 kg
Tank Diameter 1800mm Loading Capacity 9500 kg
Design Pressure 1.77Mpa Gas Density 420-550kg/M3
Hydraulic Test Pressure 2.22Mpa Corrosion Allowance 1mm
Design Temperature -20ºC~60ºC Heat Treatment Bulk
Vapor Outlet DN50 Gas Outlet DN50
Life time 20 years



Accessory list for 10tons LPG Skid Station

Item Model Unit Quantity
Pump YQB15 Unit 1 or 2
Electric Motor YB3-200L Unit 1 or 2
Float-operation
hydraulic level gauge
  Piece 1
Safety valve DN50 Piece 1
Safety reverse valve DN50 Piece 1
Check valve DN50 Piece 2
Stop Valve DN50 Piece 1
DN32 Piece 1
DN25 Piece 4
DN20 Piece 2
DN15 Piece 2
Flexible Hose L=4M DN50/25 Set 1
Shock-proof pipe L=500mm DN50 Piece 1
Filling Gun hose L=2M Set 3
Elbow Cap DN65 Piece 2
DN50 Piece 10
Flange 2.5MPaDN65 Piece 1
2.5MPaDN50 Piece 10
2.5MPaDN32 Piece 1
2.5MPaDN25 Piece 8
2.5MPaDN15 Piece 10
Metal gasket DN65 Piece 5
DN50 Piece 10
DN32 Piece 2
DN25 Piece 10
DN20 Piece 2
DN15 Piece 30
8.8 degree bolt 16*70 Set 100
12*55 Set 100
Dispenser or filling scale Single nozzle/double nozzle Unit 1 or 2
Base Plate   Set 1
Gas Leak Detector   Unit 1
Water Sprinkler System Manual Operation Set 1

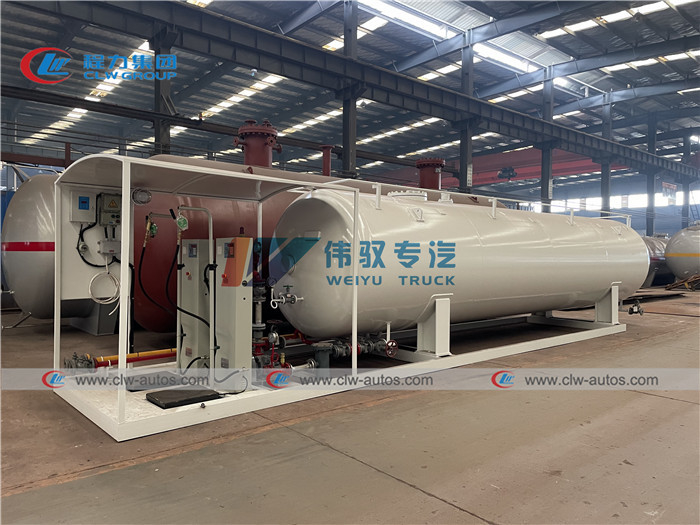

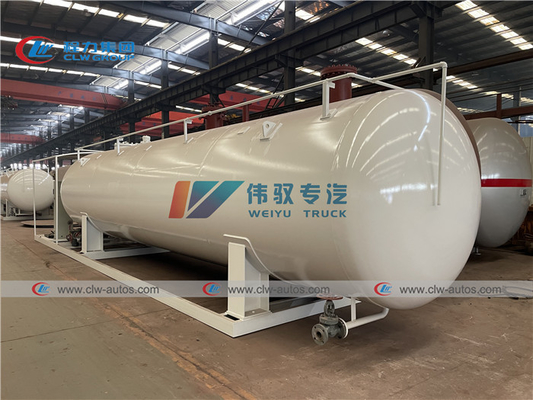

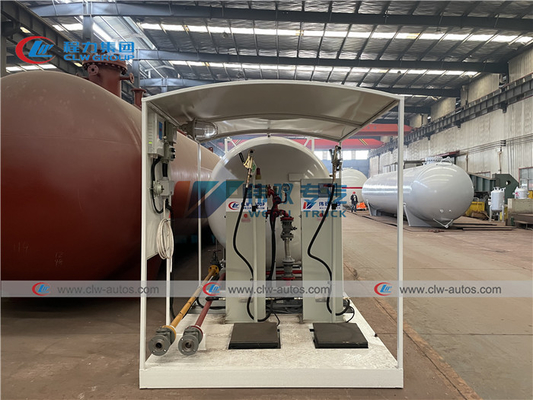

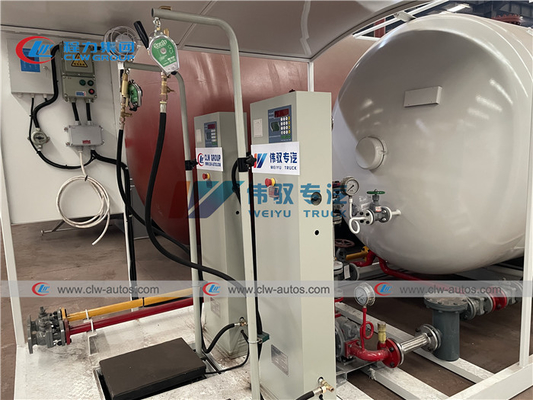

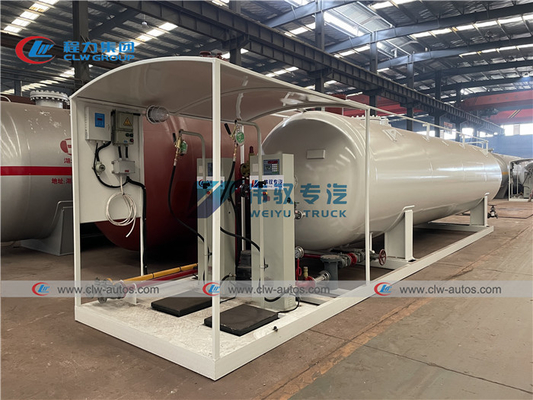

Detail Photos



Skid Mounted 10T LPG Gas Cylinder Filling Station 0Skid Mounted 10T LPG Gas Cylinder Filling Station 1

Skid Mounted 10T LPG Gas Cylinder Filling Station 2Skid Mounted 10T LPG Gas Cylinder Filling Station 3







Our Service

  • Quick feedback to solve your questions

  • Professional engineering and production team

  • Related Accessories and spare parts offered,no future worries

  • Regular customer after-sale visiting

  • Free technical staff training and guidance

  • Reasonable price and good quality

  • Quick delivery and shipment





FAQ



Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tanker, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Any interests you can feel to contact us for details. Many Thanks.



Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.



Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes. The biggest size tank we ever provided is 200m3 high pressure LPG storage tank



Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
