Payment & Shipping Terms:
|Chassis Brand:||DONGFENG,ISUZU,FAW,HOWO,JAC,JMC||Towing Capacity:||25t,30tons,30tons,40t,40tons,40ton,50t,50tons,50ton|
|Color:||White,yellow,Blue As Customized||Steering:||LHD And RHD|
|Winch Capacity:||20-30tons *2||Tool Box:||Equipped|
|Crane Boom:||3-4 Stages|
50T Wrecker Towing Truck,
Shacman 8x4 Wrecker Towing Truck,
Shacman 8x4 Heavy Duty Tow Truck

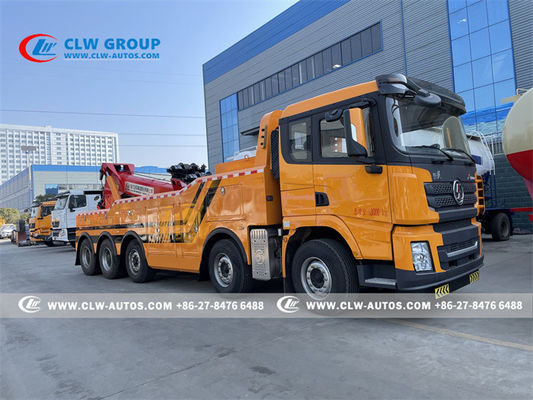

Shacman 8x4 Heavy Duty 25 30 40 50 60T Wrecker Towing Truck
1. Purpose of Recovery Truck: wrecker/recovery truck/towing truck is used for towing break-down cars or vehicle or bus or trailers on road. With increasing ownership of private cars,wreckers are now widly used by government organization or towing company.
2. Optional brand of Recovery Truck : Howo,Dongfeng,JAC,JMC,Foton,Shacman...
3. Spare parts of Recovery Truck: Italy brand multi-way valve and balance valve; Gernamy Roxroth technology hydraulic cylinder and joint; imported sealing element; strengthed checked plate
4. Capacity range of Recovery Truck: 3ton, 4ton, 5ton, 6ton, 8ton, 12ton, 16ton, 20ton, 25ton, 31ton, 40ton, 50ton, 60ton
Driving type 8x4
|Shacman X3000 Cab, with A/C and one bed, 70°hydraulically tillable to the front as attached photo for ref.|
|Vehicle Main Dimensions||Overall dimensions (L x W x H)mm||11500×2500×3600|
|Wheel base (mm)||1800+4600+1350|
|Wheel track (front/rear) (mm)||2022/1830|
|Weight in KGS||Tare Weight(KGS)||15000|
|Front axles loading capacity(KGS)||2x7000|
|Rear axles loading capacity(KGS)||2x16000|
|Max. driving speed(km/h)||95|
|Type||4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling|
|Emission standard||Euro 2|
|Gearbox||Manual,10-speed forward and 2 reverse gear|
|Steering||Power steering, hydraulic steering with power assistance|
|Clutch||Reinforced diaphragm clutch, diameter 430mm|
|Fuel tank (L)||400|
|Tire||12R22.5 tubeless tyre 13 pcs including one spare tire|
|Hoisting Organ||Rated under-hoisting capacity(kg)||25000|
|Max under-pulling capacity(kg)||50000|
|Max Under-hoist length (mm)||1630|
|Under hoisting work angle||-10~85°|
|Max lifting capacity(kg)||43000|
|Max lifting height(mm)||12000|
|Lift-hoist telescope length(mm)||3000+3000|
|Winch||Pulling capacity 25000kgs, 2pcs|
|Length of steel||25M|
|Landing leg||Distance between front legs(mm)||6100|
|Distance between rear legs(mm)||4200|
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
Q1: What kinds of wrecker trucks I can order from your company?
A: There are various sizes of wrecker trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2: Have you supplied sweeper products to any overseas companies?
A: Yes,with need of towing services,we offered wrecker trucks and wrecker superstructurer to many African,south-east Asian and south-American countries.
Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
Land transportation or Ship by bulk cargo ship, container, roro ship
