SHACMAN 8x4 10x4 380HP 50T Road Rescue Recovery Tow Truck

Large Image : SHACMAN 8x4 10x4 380HP 50T Road Rescue Recovery Tow Truck

Product Details:

Place of Origin:	SUIZHOU. HUBEI, CHINA.
Brand Name:	CLW
Certification:	CCC, ISO9001, BV, SGS
Model Number:	CLW20220208

Payment & Shipping Terms:

Minimum Order Quantity:	1 sets
Price:	Negotiated
Packaging Details:	Naked or Waxed before shipment
Delivery Time:	40 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	50 units per Month.

Contact Now

Detailed Product Description

Product Name:	SHACMAN Road Wrecker Recovery Towing Truck	Engine Horse Power:	336hp, 371hp. 420hp
Truck Brand:	Sinotruk HOWO, SHACMAN, FAW, FOTON, JAC Etc	Drive Model:	6x4, 10 Wheels, 8x4, 12 Wheels, 10x4 For Option
Drive Type:	Right Hand Drive, Or Left Hand Drive.	Wrecker Type:	360 Degree Rotation. 360 Degree Rotated. Or Not
Equipment:	Hydraulic Pump, Oil Cylinder	Main Parts:	Boom, Hoisting, Winches, Landing Leg
Loading Capacity:	30 Tons, 40 Tons, 50 Tons, 60 Tons, 70 Tons Etc	Product Name:	Car Towing Wrecker Truck,heavy Wrecker Tow Trucks
Other Name:	Popular Wrecker Towing Truck,25T Tow Truck Under Lift Wrecker Truck,tow Truck Wrecker Truck Pickup Truck	Type:	Rear Towing,wrecker Tow Trucks For Sale,Wrecker Truck
Name:	Recovery Truck Vehicle,road Rescue Recovery Vehicles/wrecker Tow Trucks,tow Trucks,Road Block Removal Truck	Usage:	Road Assistance Rescue
Highlight:	SHACMAN Recovery Tow Truck , 10x4 Recovery Tow Truck , 380HP Wrecker Tow Truck

SHACMAN 8X4 10x4 380HP 50T Road Rescue Recovery Wrecker Bus Towing Truck

Product Description:

1. Purpose of Recovery Truck: wrecker/recovery truck/towing truck is used for towing break-down cars or vehicle or bus or trailers on road.With increasing ownership of private cars,wreckers are now widly used by government organization or towing company.
2. Optional brand of Recovery Truck :howo,Dongfeng,Isuzu,JAC,JMC,Foton,Shacman...
3. Spare parts of Recovery Truck : Italy brand multi-way valve and balance valve; Gernamy Roxroth technology hydraulic cylinder and joint; imported sealing element; strengthed checked plate
4. Capacity range of Recovery Truck:3ton, 4ton, 5ton, 6ton, 8ton, 12ton, 16ton, 20ton, 25ton, 31ton, 40ton, 50ton
5. Fifth wheel attachment is optional for towing trailers as follows

Parameters for SHACMAN 8X4 10x4 380HP 50T Road Rescue Recovery Wrecker Bus Towing Truck:

Dimensions	Length (mm)	11829
	Width (mm)	2500
	Height (mm)	3695
	Track width(mm)	2036/1830
	Front/Rear overhang(mm)	1525/1775
	Wheel Base (mm)	1800+4575+1400
	Approach/Departure Angle (°)	20/18
Weight	Vehicle Curb Weight (kg)	27870
	GVW (legal)	31000
	GCW (legal)	25000
Performance	Max. Speed (km/h)	90
	Max. Grade Ability (%)	34
Core Equipment Specifications
Engine	Model	WEICHAI, WP10.340E22+PTO, EURO 2
	Rated Power (HP/r/min)	340/2200
	Max. Torque (Nm/r/min)	1250
	Type	Six cylinders in-line, water-cooled, super-charge inter-cool diesel engine
	Air Filter	Normal Air Filter
Clutch	Model	φ430
	Type	Single plate,diaphragm spring,mechanical pull type,self adjusting Air assisted clutch
Transmission	Model	FAST 10JSD180, 10 forwards & 2 reverse
	Type	Manual.
	Speed	10F & 2R
Front Axle	Type	MAN
	Ratio Load(kg)	7500x2
FR. Suspension	Type	Multi leaf spring
Rear Axle	Type	MAN
	Ratio Load(kg)	13000x2
	Ratio	5.92
RR. Suspension Type	Multi leaf spring
Steering	Model	ZF Technology, Left Hand Drive
	Type	Power steering
	Steering Wheel	4D adjustable
Brake System	Service	Dual-circuit air
	Parking	Spring
	Auxiliary Brake	Engine Exhaust
	Other	WEVB
Standard Equipment Specifications
Driver’s Cab.	Type	SHACMAN F3000 Flat roof cabin, one sleeper bed, Left hand drive
	Equipment	hydraulic suspension cab, TWO beds, A/C, MP3, 4-point hydraulic suspension,Hydraulic reversal cab,Rear window, mechanical sunshine roof,leather 4-spoke steering wheel
	Driver's Seat	hydraulic chair with seat belts
Wheel&Tire	Type & Size	12R22.5, 13 Pics including one spare
Fuel tank	Capacity (L)	400, aluminum alloy
Special Device For Wrecker System
Towing	Max Towing weight(kg)	Above 50000
Hoisting Organ	Max hoisting weight(kg)	31000
	Max Under-hoisting Capacity (kg)	20000
	Max Hoisting Weight under all extension(kg)	14000
	Max Under-hoist length (mm)	2365
	Extension Distance of oil Cylinder(mm)	1850
	Under hoisting work angle(°)	-10~85°
Lifting Organ	Max lifting capacity(kg)	20000
	Basic arm length(mm)	5000
	Total arm length(mm)	8300
	Telescope length(mm)	3300
	Max lifting high(mm)	4400
	Crane lifting angle	5°~ 23°
	Crane rotation angle	-
Winch	Quantity	2
	Max. Pulling power	10000kgs*2
	Winch rated hoisting force(KN)	100×2
	Steel rope	40M length,Φ18
Landing Leg	Distance between front legs(mm)	0
	Distance between rear legs(mm)	1450
Equipped	Four sets of steel fork, a set of tow-fork sleeve, a set of steel plate hanging lug fork, a set of ABS device. A long warning light. Auxiliary light set, auxiliary pipe assembly

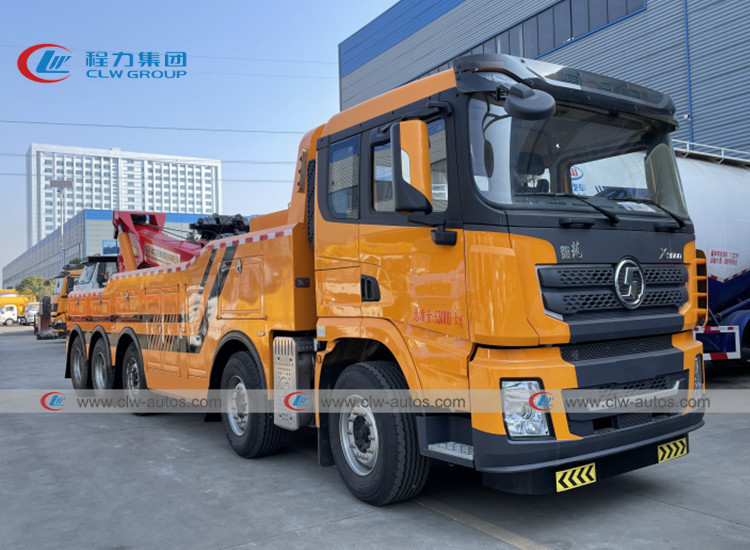

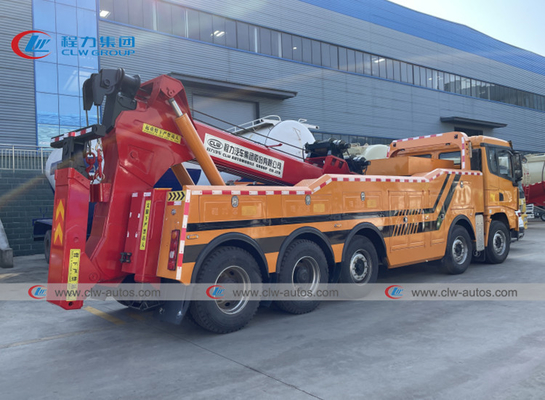

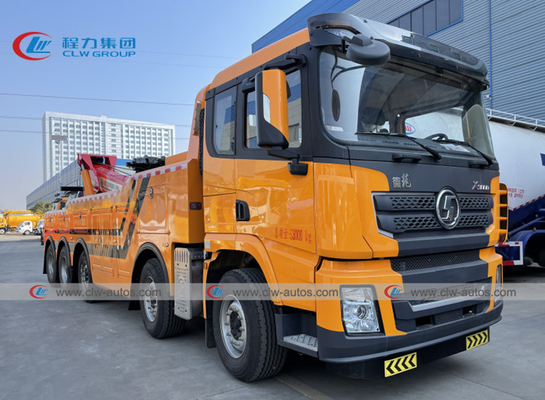

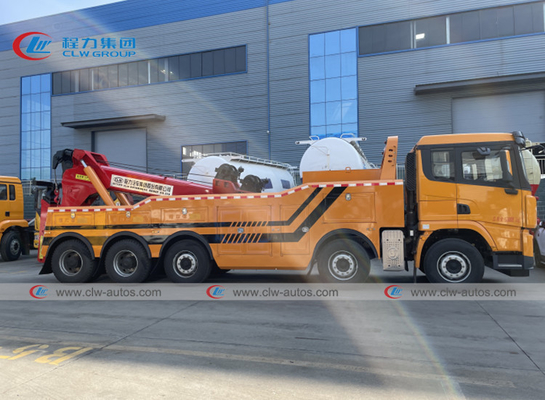

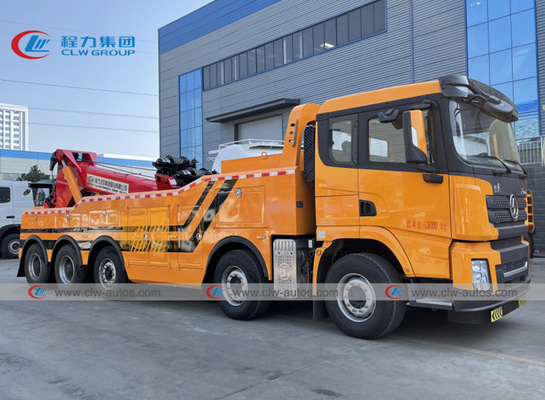

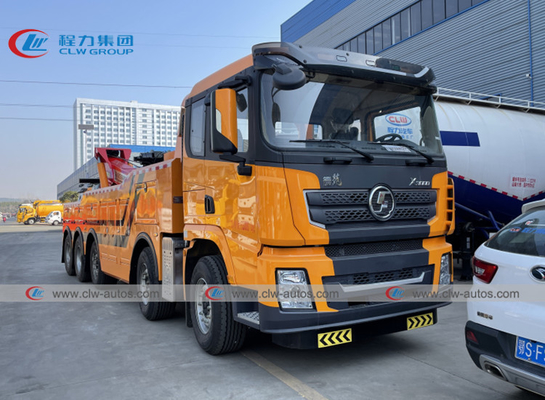

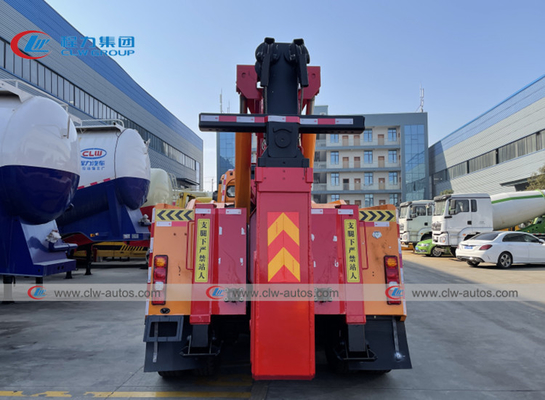

The more pictures for SHACMAN 8X4 10x4 380HP 50T Road Rescue Recovery Wrecker Bus Towing Truck:

SHACMAN 8x4 10x4 380HP 50T Road Rescue Recovery Tow Truck 0

SHACMAN 8x4 10x4 380HP 50T Road Rescue Recovery Tow Truck 1

SHACMAN 8x4 10x4 380HP 50T Road Rescue Recovery Tow Truck 2

SHACMAN 8x4 10x4 380HP 50T Road Rescue Recovery Tow Truck 3

SHACMAN 8x4 10x4 380HP 50T Road Rescue Recovery Tow Truck 4

Sales Service

① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
