Product Details:
Payment & Shipping Terms:
|
| Material: | Q345R/Q370R/ASME Carbon Steel | Condition: | New Produced |
|---|---|---|---|
| Capacity: | 20cbm,10tons, 10mt, 20,000Liters, 20m3,10 Tonnes | LPG Pump: | 2 Units ,Chinese Brand |
| Filling Scale: | 4 Unit, For Cylinder Gas Refilling | Volume: | Customers' Request |
| Use: | Cylinder Refilling, Retail | Color: | Customized LOGO |
| Warranty: | 1 Year | Service Time: | 15 Years |
| High Light: | 10tons Skid Mounted Gas Station,Q345R LPG Filling Station |
||
10tons Skid Mounted Gas Station LPG Filling Station
Product Description
1. Skid mounted gas tank size from 5,000 liter, 8,000 liter, 10,000 Liter, 12,000 Liter, 20,000 Liter, 30,000 liter, 40,000 Liter etc.
2. LPG pump: chinese brand pr US corken/blackmer.
3. Filling part: filling scale or LPG disensper
4. other configuration: lever gauge, pressure gauge, gas leakage detector, night working light, water sprinkler system, etc.
Specification of 10tons skid mounted gas station
| Parameter of 5tons LPG gas tank | ||||||
| ITEM | PARAMETER | ITEM | PARAMETER | |||
| Volume | 10cbm | Thickness of Shell | 10mm | |||
| Tank Material | Q345R | Thickness of End plate | 10mm | |||
| Overall Size | 6154*2124*2714 mm | Tank Net Weight | 2950 kg | |||
| Tank Diameter | 1600mm | Loading Capacity | 3990 kg | |||
| Design Pressure | 1.77Mpa | Gas Density | 420-550kg/M3 | |||
| Hydraulic Test Pressure | 2.22Mpa | Corrosion Allowance | 1mm | |||
| Design Temperature | -20ºC~60ºC | Heat Treatment | Bulk | |||
| Vapor Outlet | DN50 | Gas Outlet | DN50 | |||
| Life time | 20 years | |||||
Accessory list for 5tons LPG Skid Station
| Item | Model | Unit | Quantity |
| Pump | CLW15 | Unit | 1 or 2 |
| Electric Motor | YB3-200L | Unit | 1 or 2 |
| Float-operation hydraulic level gauge |
Piece | 1 | |
| Safety valve | DN50 | Piece | 1 |
| Safety reverse valve | DN50 | Piece | 1 |
| Check valve | DN50 | Piece | 2 |
| Stop Valve | DN50 | Piece | 1 |
| DN32 | Piece | 1 | |
| DN25 | Piece | 4 | |
| DN20 | Piece | 2 | |
| DN15 | Piece | 2 | |
| Flexible Hose | L=4M DN50/25 | Set | 1 |
| Shock-proof pipe | L=500mm DN50 | Piece | 1 |
| Filling Gun hose | L=2M | Set | 3 |
| Elbow Cap | DN65 | Piece | 2 |
| DN50 | Piece | 10 | |
| Flange | 2.5MPaDN65 | Piece | 1 |
| 2.5MPaDN50 | Piece | 10 | |
| 2.5MPaDN32 | Piece | 1 | |
| 2.5MPaDN25 | Piece | 8 | |
| 2.5MPaDN15 | Piece | 10 | |
| Metal gasket | DN65 | Piece | 5 |
| DN50 | Piece | 10 | |
| DN32 | Piece | 2 | |
| DN25 | Piece | 10 | |
| DN20 | Piece | 2 | |
| DN15 | Piece | 30 | |
| 8.8 degree bolt | 16*70 | Set | 100 |
| 12*55 | Set | 100 | |
| Dispenser or filling scale | Single nozzle/double nozzle | Unit | 1 or 2 or 4 |
| Base Plate | Set | 1 | |
| Gas Leak Detector | Unit | 1 | |
| Water Sprinkler System | Manual Operation | Set | 1 |

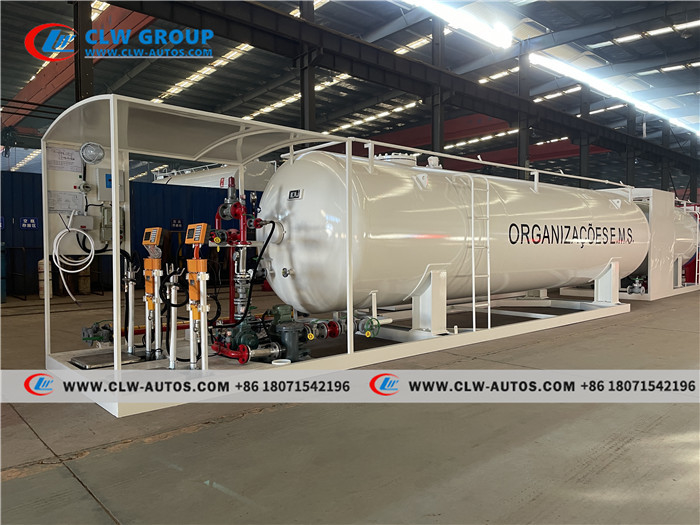

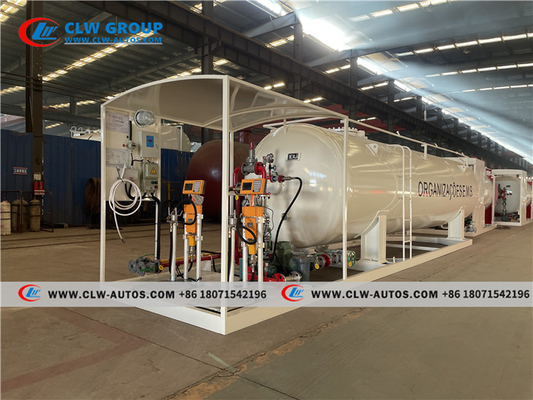

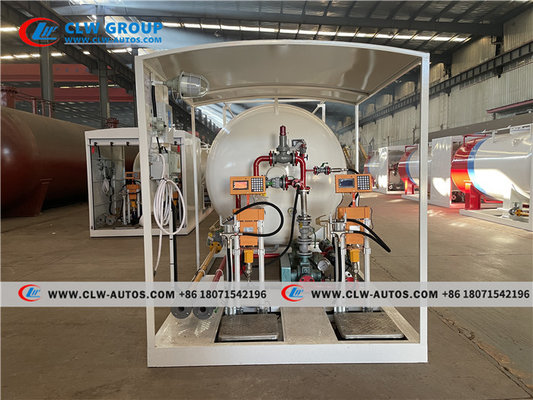

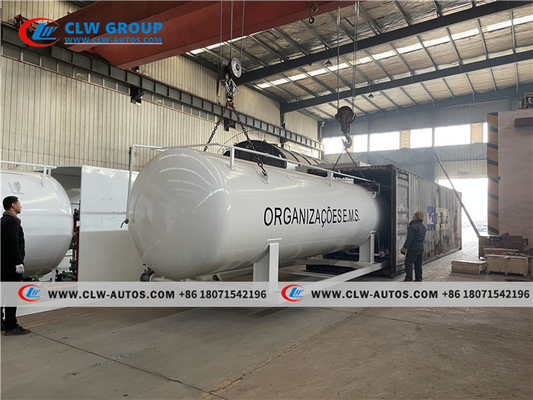

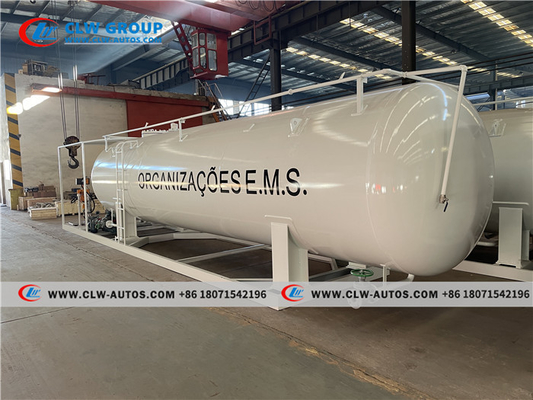

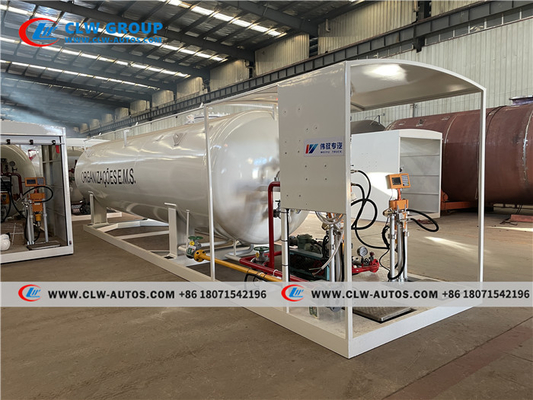

Skid Mounted Station Detail Photos
Our Service
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tanker, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Any interests you can feel to contact us for details. Many Thanks.
Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.
Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes. The biggest size tank we ever provided is 200m3 high pressure LPG storage tank
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
