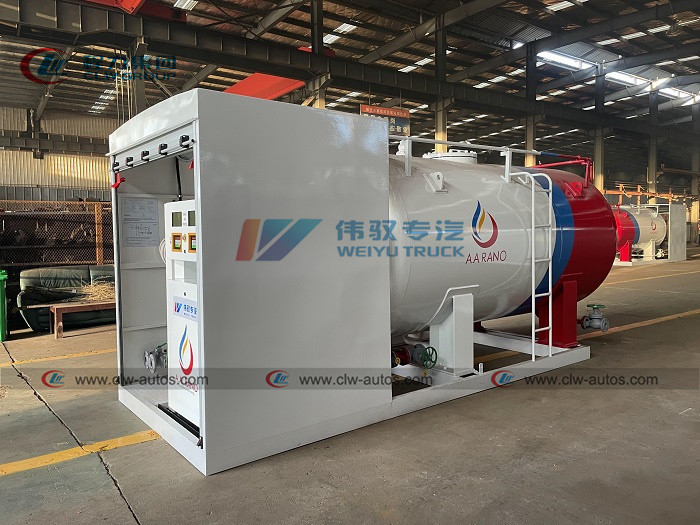

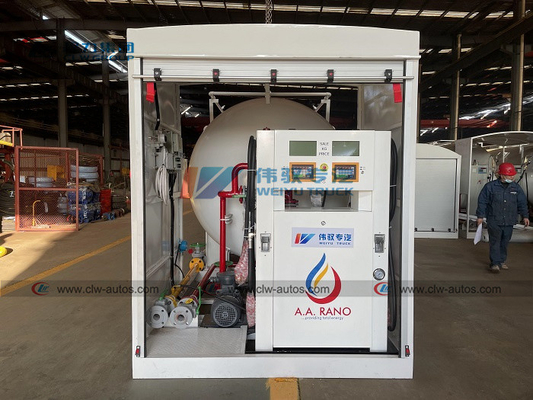

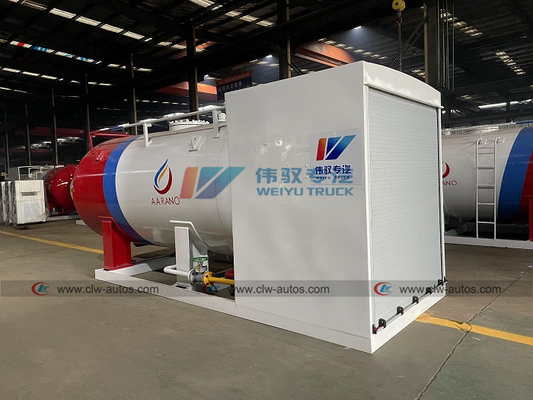

5MT 10000L LPG Skid Station With Cylinder Filling Dispenser In Nigeria

Large Image : 5MT 10000L LPG Skid Station With Cylinder Filling Dispenser In Nigeria

Product Details:

Place of Origin:	China
Brand Name:	CLW
Certification:	CCC ISO ASME
Model Number:	CLW1100WYYHQ

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	Negotiable
Packaging Details:	Naked package shipped by container
Delivery Time:	Within 30days after received advance payments
Payment Terms:	L/C, T/T, D/P, T/T, Western Union, MoneyGram, D/A
Supply Ability:	500 units/month

Contact Now

Detailed Product Description

Tanker Volume:	10CBM/10000Liters/10000L Or As Customized	Tank Material:	Q345R Q370R
Loading Material:	Propane/Liquefied Petroleum Gas/LPG/cooking Gas	Design Pressure:	1.77MPa
Thickness Of Shell And Endplate:	10mm Or 12mm	Loading Capcity:	5tons,5t,5mt
Condition:	New	Dimensions:	According To Drawing
After-sales Service Provided:	Engineers Available To Service Machinery Overseas, Field Maintenance And Repair Service	Function:	Cylinder Refilling,car Filling
Color:	Customized	Country:	Nigeria,Namibia,Niger,Botswana,Zimbabwe
Highlight:	10000L LPG Skid Station , 5MT LPG Skid Station With Cylinder

Hot Sale 5MT 10000L LPG Skid Station With Cylinder Filling Dispenser In Nigeria

Product Description:

Heat treatment
Explosive Proof Central Control Panel for whole station system
Optional pump of LPG Gas filling station
GB-150 or ASME standard
Design Pressure:1.71MPa

Technical parameter

20CBM LPG TANK DIMENSIONS
Volume of Tank		10CBM
Filling Weight		3990 kg
Tank Weight		2950 kg
Thickness of Shell (mm)		10 mm
Thickness of Endplate (mm)		10 mm
Tank Diameter (mm)		1600 mm
External Dimensions (mm) (length x width x height)		5260 x 1620 x 2210mm
Overall Skid Size		As designed
Material of Tank and Main Pressure Parts		Carbon Steel Q345R
Filling Medium		Liquefied Petroleum Gas ( Propane)
Design Pressure		1.77 MPa
Test Pressure		2.22 Mpa
Corrosion Allowance		1 mm
Medium Density		420-590 kg/ cbm
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China.
Main parts of LPG Tank
Item	Specification/ mm		Quantity
Discharge Pipe	DN50-2"		1
Inflow Pipe	DN50-2"		1
Outlet	DN50-2"		1
Gas phase balance pipes	DN50-2"		1
Manhole	DN450		1
Drain Hole	DN50-2"		1
Other accessories:Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge.

LPG Skid Part list
Item	Model Number	Quantity
LPG Tanker	LPG Storage Tank with tank accessories	1 piece
LPG Filling Pump	2" inlet& outlet, 5.5KW, 380V/50Hz, Ex-proof,	2 Piece
Cylinder Filling Scale	Can fill 3kg to 150kg LPG cylinder	2 Piece
Leakage Detector	Leakage warning detector	1 Unit
Pipes	/	1 sets
Cut-off Valve	J41N-40 DN50	5 Pieces
Ball Vavle	DN50	8 Piece
Safety Valve	A42F-25 DN50	1 Piece
Pipe Safety Valve	A21F-25 DN15	1 Piece
Ball floating level gauge	UQZ-2.5P	1 Piece
Discharging pipe	L=4M DN50/DN25	1 Piece
Shock-absorbing Tube	L=500mm DN50	2 Pieces
Flange	2.5MPaDN15	20 Pieces
Pressure Gauge	0 ~4Mpa	1 Piece
LPG Tank	LPG Storage Tank with tank accessories	1 piece
