Product Details:
Payment & Shipping Terms:
|
| Tank Material: | Q345R Q370R Q420R Carbon Steel For Pressure Vessel | Loading Capacity: | 2TONS, 5TON, 10 TONS, 20 TONS ETC. |
|---|---|---|---|
| Tank Size: | 5m3, 5cbm, 5000liters, 5000L | Design Pressure: | 1.71MPa 1.77MPa 17.1bar, 17.7bar |
| Hydraulic Test Pressure: | 2.21MPa 22.1bar | Filling Medium: | Propane, Butane, LPG, Cooking Gas |
| Level Gauge: | Magnetic Plate Level Gaue, Float-Ball, Rotor Level Gauge | Diameter: | 1600mm |
| TONS: | 5000L, 5cbm, 5000liters, 5m3 | Color: | Customized |
| High Light: | LPG Propane Butane Pressure Vessel,5m3 LPG Propane Butane Pressure Vessel |
||
Product Description
1. LPG Tank Storage Content: LPG Gas, Propane, Butane, Liquid Ammonia, etc
2. Tank Design Standard: GB150-2013, ASME Standard with U STAMP.
3. Test: 100% Radiaographic Test, Magnetic Power Test, Water Pressure.
4. LPG storage tank capacity: 5-200m3 (Customized)
5. LPG storage tank material: Q345R Q370R SA516 SA517
6. Corrosion Resistance Painting: 2 Times
7. Surface Painting: 1 Time (color is customized)

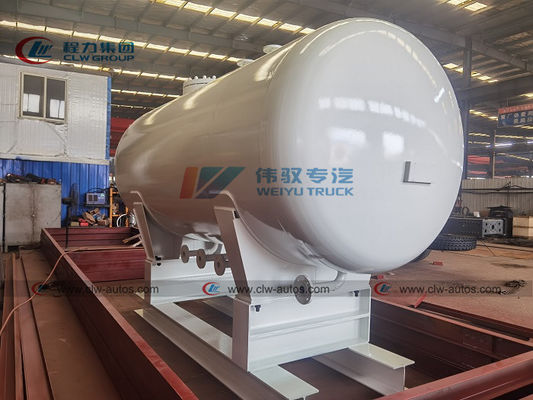

Technique Parameter for 5000 Liters 5m3 lpg storage tank
| Item No. | Parameters |
| Volume of Tank (cbm) | 5 |
| Tare Weight (kg) | 2030kg |
| Filling Capacity (kg) | 1995 kg |
| Thickness of Shell (mm) | 10 |
| Thickness of Endplate (mm) | 10 |
| tank cylinder diameter (mm) | 1600 |
| External Dimensions (mm) (length×width×height) |
3070*1620*2210 |
| Material of Tank and Main Pressure Parts | Carbon Steel Q345R |
| Filling Medium | Liquefied Petroleum Gas |
| Design Pressure | 1.77MPa ( 256.65 Psi) |
| Corrosion Allowance | 1 mm |
| Medium Density | 420 kg/ cbm |
Accessory list for 5,000l lpg storage tank
| Accessories List | |||||
| Parts No | Size | Parts Name | Model No. | Quantity | Unit |
| a | DN50 | Cut-off Valve for Drain Outlet | J41N-2.5-50 | 1 | set |
| b | DN80 | Cut-off Valve for Liquid Phase Outlet | J41N-2.5-80 | 1 | set |
| c1 | DN50 | Cut-off Valve for Gas Phase Balance Outlet | J41N-2.5-50 | 1 | set |
| c2 | DN50 | Cut-off Valve for Gas Phase Balance Outlet | J41N-2.5-50 | 1 | set |
| d | DN80 | Cut-off Valve for Liquid Inlet | J41N-2.5-80 | 1 | set |
| i | DN50 | Cut-off Valve for Air Drain Outlet | J41N-2.5-50 | 1 | set |
| h | DN80 | Cut-off Valve for Safety Valve | J41N-2.5-80 | 1 | set |
| f1 | DN25 | Cut-off Valve for Magnetic Level Gauge | J41N-2.5-25 | 1 | set |
| f2 | DN25 | Cut-off Valve for Magnetic Level Gauge | J41N-2.5-25 | 1 | set |
| e | M33*2 | Thermometer | WTQ-280 | 1 | set |
| g | M20*1.5 | Pressure Gauge | Y-100T | 1 | set |
| / | / | Magnetic Level Gauge | HG21584-95 | 1 | set |
| / | DN80 | Safety Valve | A42F-25 | 1 | set |
| M20×1.5 | Needle Valve | J24W-320-DN6 | 1 | set | |
| Total Quantity | 14 | ||||
Pictures of LPG gas plant with the accessories:
Production Process for LPG storage tank:
Our Service
1) Quick feedback to solve your questions;
2) Professional engineering and production team;
3) Related Accessories and spare parts offered,no future worries;
4) Regular customer after-sale visiting;
5) Free technical staff training and guidance;
6) Reasonable price and good quality;
7) Quick delivery and shipment.
