| Tank Material: | Q345r Or Q370r Carbon Steel For Pressure Vessel | Loading Capacity: | 5t 5ton 5tons 5mt LPG Refilling Plant |
|---|---|---|---|
| Tank Size: | 10 M3, 10cbm, 10000 Liters, 10000L | Design Pressure: | 1.71MPa 1.77MPa 17.1bar, 17.7bar |
| Hydraulic Test Pressure: | 2.21MPa 22.1bar | Filling Medium: | Propane, Butane, LPG, Cooking Gas |
| Level Gauge: | Magnetic Plate Level Gaue, Float-Ball | Diameter: | 1600mm |
| Other Accessories: | LPG Pump & Motor, LPG Compressor | Filling Parts: | LPG Filling Weight Scale, LPG Dispenser With One Or Double Nozzlers |
| Production Name: | LPG Skid Station, Refilling Cylinder Filling | Pump Brand: | Corken, Blackmer, Chinese Brand |
| Color: | Customized | ||
| High Light: | 10000liters LPG Cylinder Filling Station,Q345r LPG Cylinder Filling Station |
||
10,000liters/5 metric tonnes LPG Cylinder filling station In Nigeria Market sale
we are not proud that our skid station is the cheapest, but the safest, most durable and functional.
Product Description
Strainer valve before pump inlet to avoid impurity into pump and lengthen pump lifetime
Product Specification;
| Specification of 5tons 10000L lpg refilling plant | |
| Volume of Tank | 10CBM |
| Filling weight(Kg) | 3990 |
| Thickness of Shell (mm) | 10 mm |
| Thickness of Endplate (mm) | 10 mm |
| Tank Diameter (mm) | 1600 mm |
| Tank Dimensions (mm) (length x width x height) | 5260X1620X2210mm |
| Material of Tank and Main Pressure Parts | Carbon Steel Q345R |
| Filling Medium | Liquefied Petroleum Gas ( Propane) |
| Design Pressure | 1.71 MPa |
| Corrosion Allowance | 1 mm |
| Medium Density | 500-590 kg/ cbm |
| Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | |
| Specification of LPG Pump and Motor | |
| Item | Specification |
| Specification of the Motor | |
| Model | Chinese famous brand |
| Revolving speed | 1470 r/min |
| Power | 5.5 kw |
| Voltage | 380 V |
| Protection grade | Anti explosive |
| Specification of the hydrocarbon Pump | |
| Model | YQB15-5 |
| Medium | Liquid petroleum gas |
| Speed | 15 m3/h |
| Input and Output Diameter | 50 mm |
| Working pressure | 2.0 Mpa |
| Working temperature | -40ºC- 50ºC |
| Material | carbon steel |

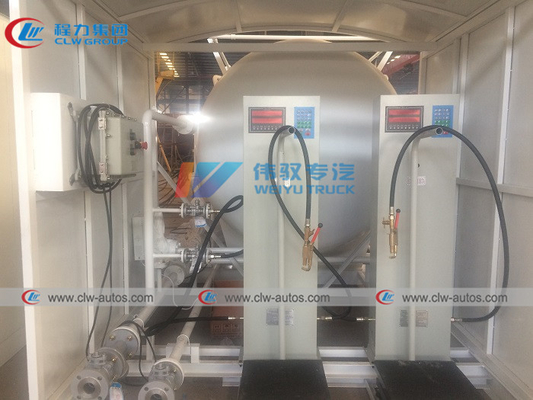

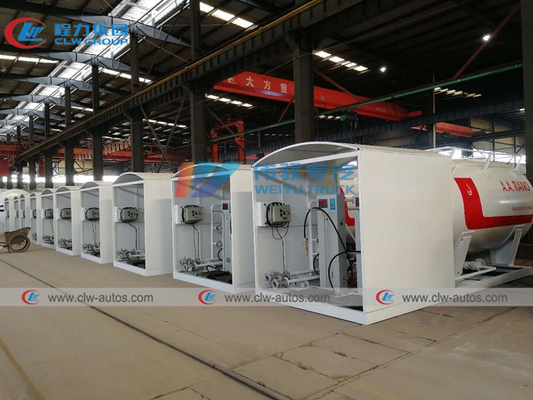

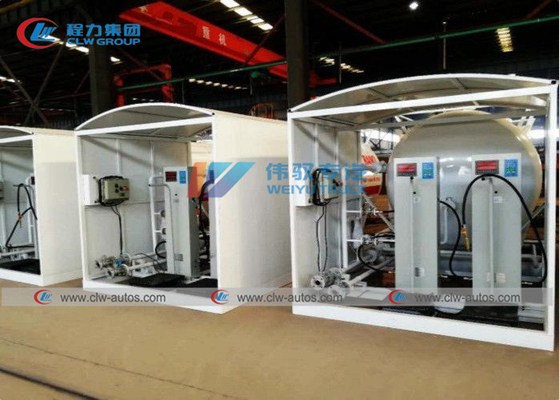

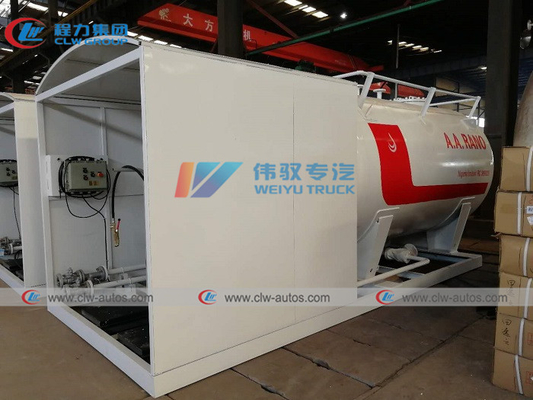

Pictures of LPG gas plant with the accessories:
Production Process for LPG storage tank:
