Product Details:
Payment & Shipping Terms:
|
| Tanker Volume: | 10CBM/10000Liters/10000L Or As Customized | Loading Material: | Propane/Liquefied Petroleum Gas/LPG/cooking Gas |
|---|---|---|---|
| Design Pressure: | 1.77MPa | Thickness Of Shell And Endplate: | 10mm Or 12mm |
| Loading Capcity: | 10tons,10t,10mt | Condition: | New |
| Dimensions: | According To Drawing | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Field Maintenance And Repair Service |
| Function: | Cylinder Refilling,car Filling | Color: | Optional, Customers', Silvery Grey, White / Green / Red, White Or Customer's Requirements |
| Country: | Nigeria,Namibia,Niger,Botswana,Zimbabwe | Trademark: | CLW |
| Material: | Steel, HP295, Q345R, Carbon Steel Q345R, Q345R/Q370R Carbon Steel | Gas Density: | 420-590 Kg/ Cbm |
| High Light: | 10000L LPG Gas Storage Tanker,NNPC LPG Gas Storage Tanker |
||
| 10CBM LPG TANK DIMENSIONS | |||
| Volume of Tank | 10CBM | ||
| Filling Weight | 3990 kg | ||
| Tank Weight | 2950 kg | ||
| Thickness of Shell (mm) | 10 mm | ||
| Thickness of Endplate (mm) | 10 mm | ||
| Tank Diameter (mm) | 1600 mm | ||
| External Dimensions (mm) (length x width x height) | 5260 x 1620 x 2210mm | ||
| Overall Skid Size | As designed | ||
| Material of Tank and Main Pressure Parts | Carbon Steel Q345R | ||
| Filling Medium | Liquefied Petroleum Gas ( Propane) | ||
| Design Pressure | 1.77 MPa | ||
| Test Pressure | 2.22 Mpa | ||
| Corrosion Allowance | 1 mm | ||
| Medium Density | 420-590 kg/ cbm | ||
| Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | |||
| Main parts of LPG Tank | |||
| Item | Specification/ mm | Quantity | |
| Discharge Pipe | DN50-2" | 1 | |
| Inflow Pipe | DN50-2" | 1 | |
| Outlet | DN50-2" | 1 | |
| Gas phase balance pipes | DN50-2" | 1 | |
| Manhole | DN450 | 1 | |
| Drain Hole | DN50-2" | 1 | |
| Other accessories:Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge. | |||

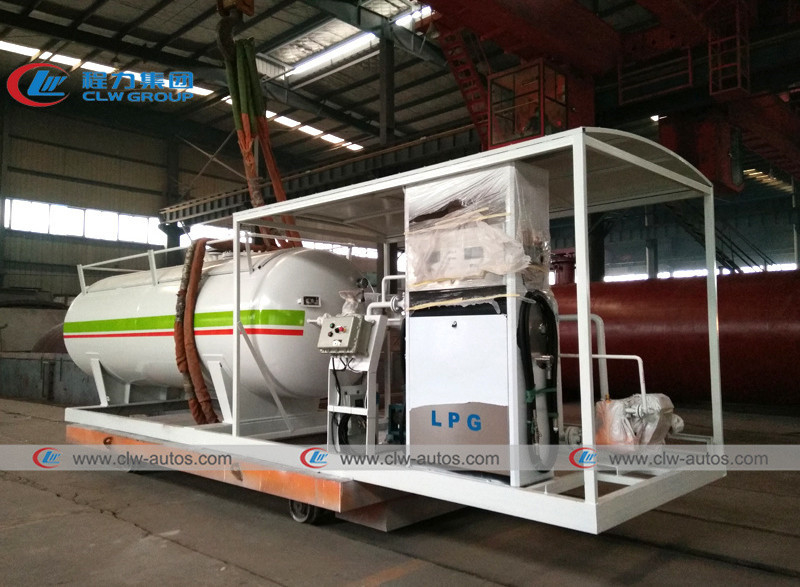

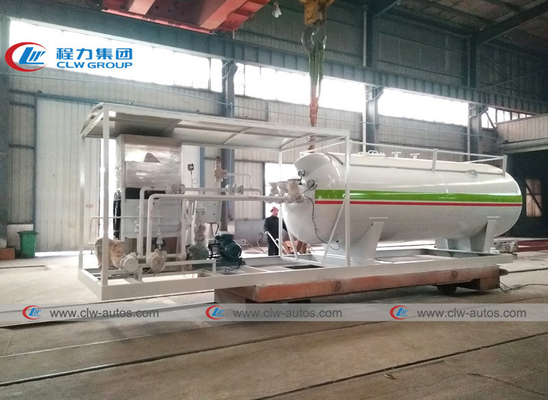

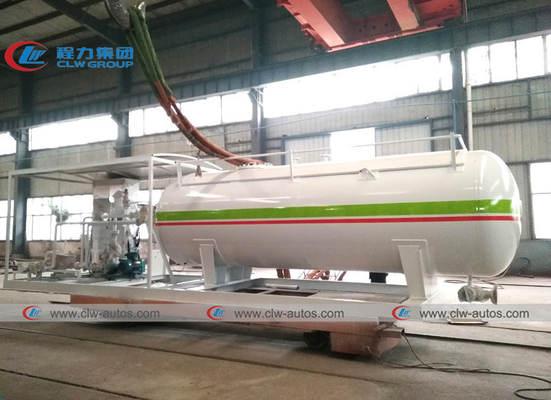

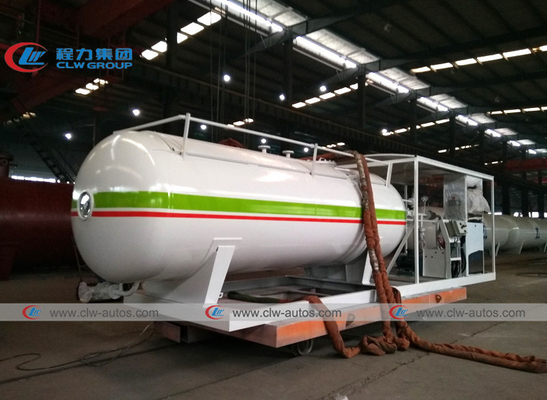

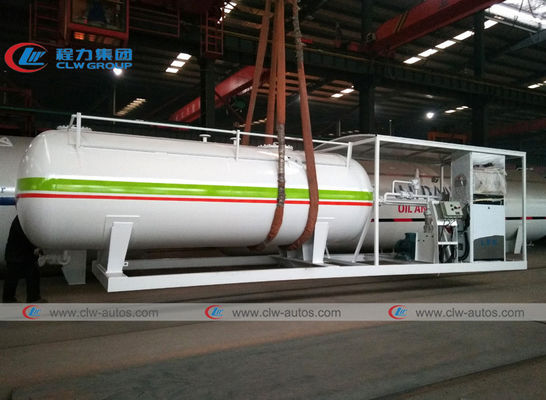

| LPG Skid Part list | ||
| Item | Model Number | Quantity |
| LPG Tanker | LPG Storage Tank with tank accessories | 1 piece |
| LPG Filling Pump | 2" inlet& outlet, 5.5KW, 380V/50Hz, Ex-proof, | 2 Piece |
| Cylinder Filling Scale | Can fill 3kg to 150kg LPG cylinder | 2 Piece |
| Leakage Detector | Leakage warning detector | 1 Unit |
| Pipes | / | 1 sets |
| Cut-off Valve | J41N-40 DN50 | 5 Pieces |
| Ball Vavle | DN50 | 8 Piece |
| Safety Valve | A42F-25 DN50 | 1 Piece |
| Pipe Safety Valve | A21F-25 DN15 | 1 Piece |
| Ball floating level gauge | UQZ-2.5P | 1 Piece |
| Discharging pipe | L=4M DN50/DN25 | 1 Piece |
| Shock-absorbing Tube | L=500mm DN50 | 2 Pieces |
| Flange | 2.5MPaDN15 | 20 Pieces |
| Pressure Gauge | 0 ~4Mpa | 1 Piece |
| LPG Tank | LPG Storage Tank with tank accessories | 1 piece |
Gas dispenser
Our Service
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tanker, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Any interests you can feel to contact us for details. Many Thanks.
Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.
Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes. The biggest size tank we ever provided is 200m3 high pressure LPG storage tank
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
