Q345R Carbon Steel 8,000 Liters LPG Gas Tanker For Storage Lpg

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

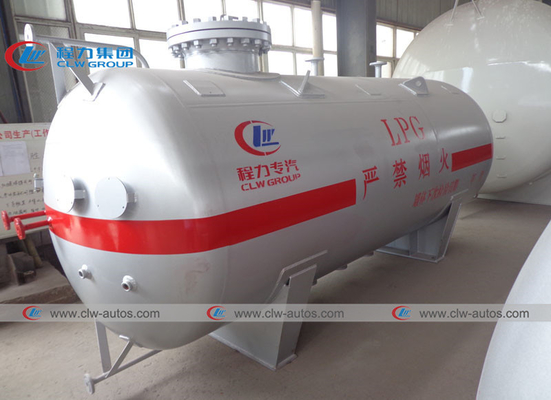

Q345R Carbon Steel 8,000 Liters LPG Gas Tanker For Storage Lpg

Q345R Carbon Steel 8,000 Liters LPG Gas Tanker For Storage Lpg
Q345R Carbon Steel 8,000 Liters LPG Gas Tanker For Storage Lpg Q345R Carbon Steel 8,000 Liters LPG Gas Tanker For Storage Lpg Q345R Carbon Steel 8,000 Liters LPG Gas Tanker For Storage Lpg Q345R Carbon Steel 8,000 Liters LPG Gas Tanker For Storage Lpg Q345R Carbon Steel 8,000 Liters LPG Gas Tanker For Storage Lpg

Large Image :  Q345R Carbon Steel 8,000 Liters LPG Gas Tanker For Storage Lpg

Product Details:

Place of Origin: Suizhou, China
Brand Name: CLW
Certification: CLW9520
Model Number: ASME,CCC,SGS,BV

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: negotiable
Packaging Details: Naked Package,Bulk Ship,Roll-Roll
Delivery Time: 20~30 days after receiving deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 Units/Month
Detailed Product Description
Size Option: 40m3,50m3,60m3,70m3,80m3,100m3,120m3 Materail: Carbon Steel Q345R
Filling Medium: Propane,butane Tank Diameter: DN2400mm
Design Pressure:: 1.77Mpa Level Gauge: China Brand Megnatic Type Or US Brand Rocheseter
Tank Valves: Cut-off Valve, Needle Valve, Safety Valve, Return Valve Etc.. LOGO: As Per Request
Service Time: 15 Years Capacity: 8m3, Customized, Requirment
Use: Storage LPG ,propane, Butane, Isobutane ,etc
High Light:

8000 Liters LPG Gas Tanker

,

Q345R Carbon Steel LPG Gas Tanker

Q345R Carbon Steel 8,000 Liters LPG Gas Tanker for Storage lpg For Nigera

Product Description

1. Storage medium of propane Storage Tank :

  • LPG, Liquid ammoina,Dimethyl ether,Iso-butane,Pentane and etc.

2. Available tank capacity of propane Storage Tank:

  • 5m³~200m³,2ton~100tons

3. Manufacturing standards of propane Storage Tank :

  • GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008

4. Optional for lpg gas plant equipments

  • lpg pump and motor,lpg compressor,volume flow meter,filling scales and lpg dispenser,ball valves,check valves,non-return valves,glass valve,strainer,by-pass valve.

6.Maintenance-free operation with simple calibration and proof testing.


7.20 years guarantee against manufacturing defects.


 40,000Liters LPG Storage Tank Dimension
Volume of Tank  8,000Liters
Filling Weight 3192 kg
Tank Weight 2540kg
Thickness of Shell (mm) 10 mm
Thickness of End plate (mm) 10 mm
Tank Diameter (mm) 1600 mm
External Dimensions (mm) (length x width x height) 4270 x 1620 x 2210 mm
Material of Tank and Main Pressure Parts Carbon Steel Q345R
Filling Medium Liquefied Petroleum Gas ( Propane)
Design Pressure 1.77 MPa / 17.7Bar
Corrosion Allowance 1 mm
Medium Density 420 kg/ cbm
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China.
Main parts of LPG Tank
Item Specification Quantity
Discharge Pipe DN80 1
Inflow Pipe DN80 1
Gas phase balance pipes DN50 2
Drain Hole DN50 1
Manhole DN450 1
Air-out Pipe DN50 1
Safety Valve Pipe DN80 2

Safety Accessories (Included in the quotation):
Cut-off Valve, Needle Valve, Safety Valve, Magnetic Liquid level meter, Pressure gauge, Temperature Gauge.


Working sence

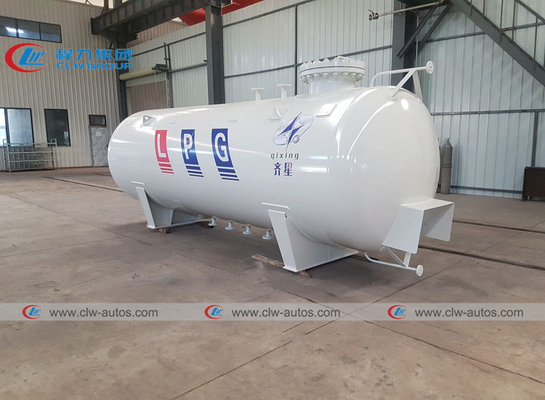

Q345R Carbon Steel 8,000 Liters LPG Gas Tanker For Storage Lpg 0Q345R Carbon Steel 8,000 Liters LPG Gas Tanker For Storage Lpg 1

Filling house for cylinders

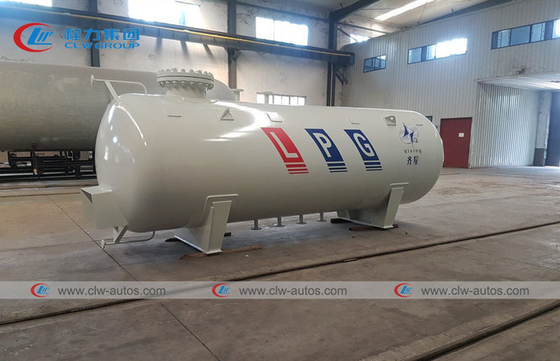

Q345R Carbon Steel 8,000 Liters LPG Gas Tanker For Storage Lpg 2

Loading for shipment

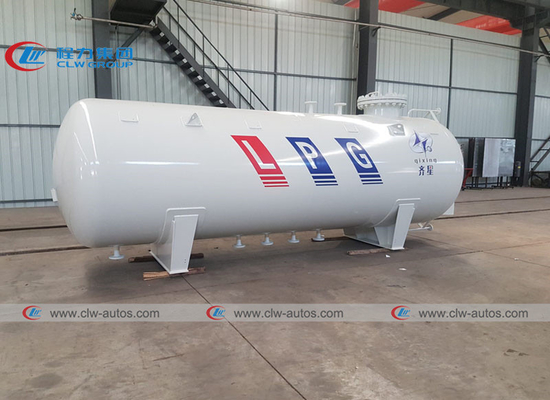

Q345R Carbon Steel 8,000 Liters LPG Gas Tanker For Storage Lpg 3

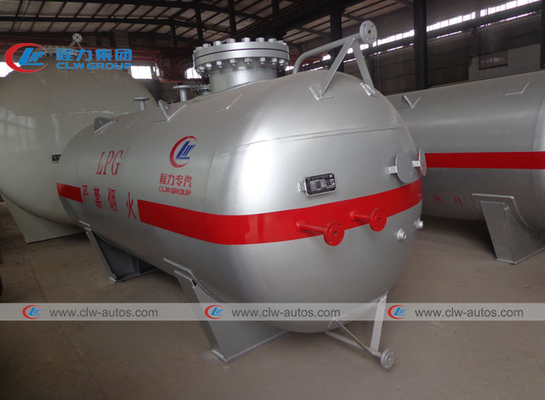

Q345R Carbon Steel 8,000 Liters LPG Gas Tanker For Storage Lpg 4
