Product Details:
Payment & Shipping Terms:
|
| Product Name: | HOWO Car Carrier Truck, Car Hauler Truck | Truck Brand: | ISUZU, HOWO, SHACMAN, FAW, FOTON, JAC Etc |
|---|---|---|---|
| Drive Model: | 4x2, 6 Wheels, 6 Wheeler | Drive Type: | Right Hand Drive, Or Left Hand Drive. |
| Max. Loading Weight: | 6000KG, 7000KG,6 TONS, 7 TONS, | Equipment: | Hydraulic Pump, Oil Cylinder. 10 Pieces Oil Cylinders |
| Car Capacity: | 3-4 Units, 5-6 Units | Usage: | Road Assistance Rescue |
| Wheelbase: | 4500mm | Functions: | For Car SUV Carrier, Transport, Hauling Road Rescue, |
| High Light: | LHD Car Hauler Truck,Sinotruk HOWO 4x2 Car Hauler Truck,SGS 4 Units SUV Car Carrier |
||
Product Description:
1. A car hauler truck, also called car carrier truck is a commercial truck that is equipped to tow a specialized car-hauling trailer.
2. Some car haulers are high mount, meaning they use a traditional 5th wheel that connects to the trailer above the rear axles of the truck.
3. Other car haulers are stingers, with a 5th wheel that connects to the trailer low to the ground.
4. Stinger configurations are quite common in car hauling because they can accommodate more cars per load, with their combined trailer and tractor head.
5. We can design and produce different capacity car carrier/car hauler trucks & trailers from 2 units to 8-10 units cars carrier to meet customer's demands.

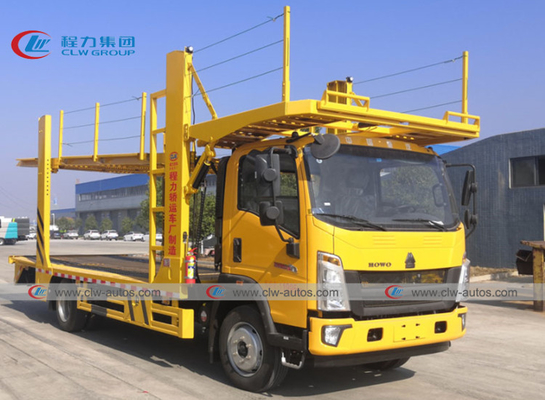

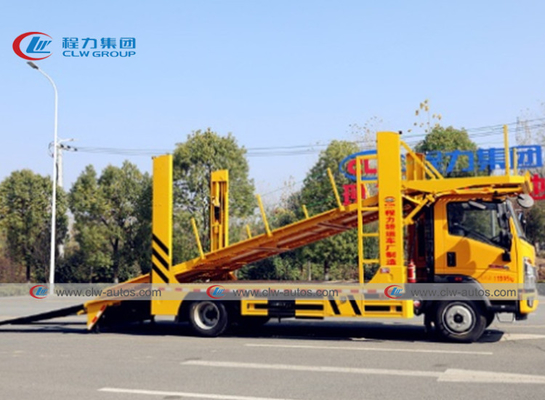

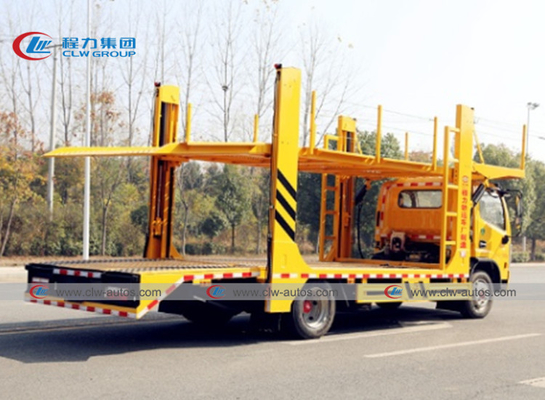

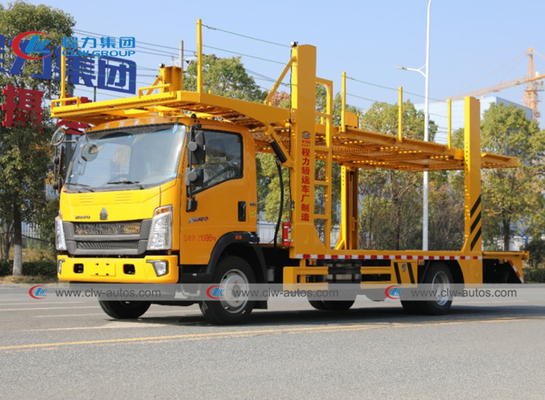

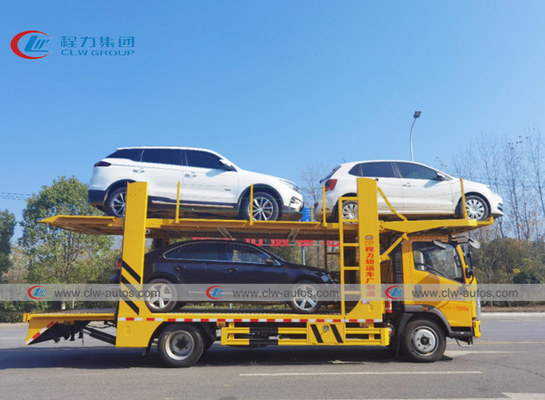

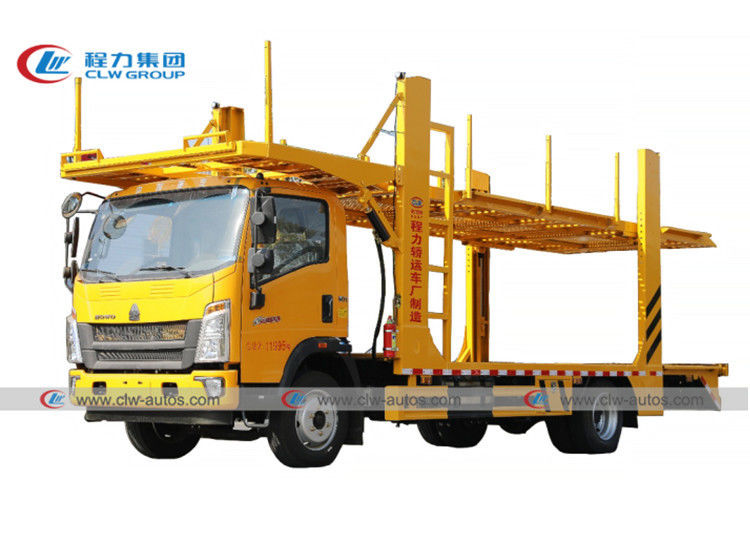

Specification for Sinotruk HOWO 4x2 LHD 3-4 Units SUV Car Carrier Car Hauler Truck:
| Truck Parameters | |
| Overall Dimension | 8530x2500x3550 mm |
| Driving Model | Left hand drive |
| Gross Vehicle Weight | 12000 kg |
| Curb Weight | 6870kg |
| Payload | 5130 kg |
| Wheel Base | 4500 mm |
| Front Axle capacity | 3200kg |
| Rear Axle capacity | 8000kg |
| Engine | Yuchai engine,YC4E160-33, Diesel engine |
| Engine horsepower | 160 HP/118KW, EUROIII |
| Displacement | 4260mL (Diesel) |
| Gearbox | DC6J65TC, 6 forward& 1 reverse |
| Cabin | HOWO 2080 type cabin, one row and a half with A/C |
| Tire | 8.25R20 (6 pc with 1 spare) |
| Upper Equipment | |
| Car Carrier: | 3-4 units Cars |
| Material: | Low alloy high strength structural steel |
| Upper main board: | Length: 8400mm, Extendable: 300mm; Total: 8700mm; Width: 2240mm; |
| Lower main board:: | Length: 6480mm; Width: 2490mm; |
| Upper and lower board adjustment: | 1850/1950mm(Adjusted with hydraulic valves) |
| Lower board Ground clearance | 1000mm |
| Upper platform on the top of cabin | Independent hydraulic lifting |
| Rear Side | Hydraulic telescopic folding ladder |
| Hydraulic System | Imported Brand. Total 10 units Hydraulic Oil cylinder |
