| After-sales Service Provided: | Spare Parts Supply And Engineer Support | Tanker Volume: | 20CBM/20000Liters/10MT/10tons |
|---|---|---|---|
| Tank Material: | Q345R/SA516 | Loading Material: | Propane/Liquefied Petroleum Gas/LPG |
| Design Pressure: | 1.77MPa | Medium Density: | 420Kg/m³ 450Kg/m³ 460Kg/m³ 480Kg/m³ 500Kg/m³ 520Kg/m³ 540Kg/m³ |
| Mechanical Property Test: | Tensile, Strength, Impact Test | Thickness Of Shell And Endplate: | 12mm |
| Condition: | New Printed | Color: | Customers' |
| Warranty: | 1 Year | Filling Medium: | LPG, Liquid Petroleum Gas (propane), LPG(propane), Propane |
| Corrosion Allowance: | 1 Mm | ||
| High Light: | 10tons LPG Cylinder Filling Station,20000L LPG Cylinder Filling Station |
||
Brand: sell to people who understand it
Good product: always meet the right person
Good project: there will always be someone who knows how to do it
Good service: there will always be people who appreciate it
Product description:

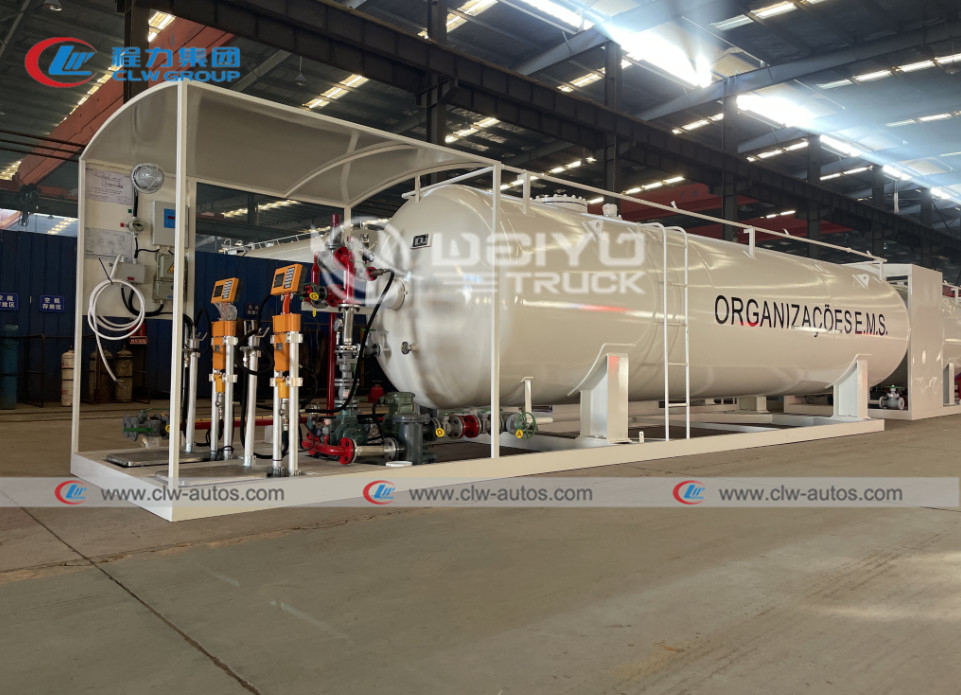

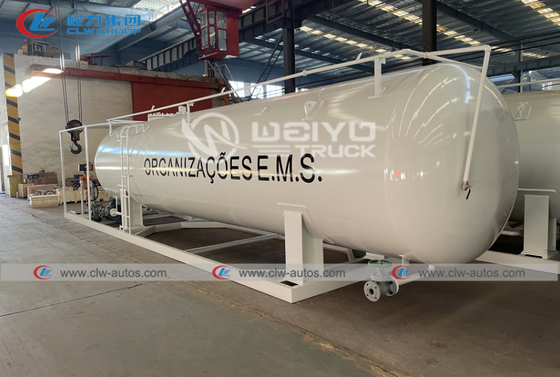

Tank volume: 20 m3, 20 cbm, 20000 L, 20000 liters or 10tonnes,10t,10tonns,10mt
Tank diameter: 1800mm, 2100mm, 2000 mm, 2200 mm
Tank material: Q345R, Q370R
Designing pressure:1.77 Mpa
Designing temperature: -20 °C to 54 °C.
Filling Medium: Liquefied Petroleum Gas(propane, butane, liquid ammonia etc )
| Volume of Tank | 20CBM(20,000liters) 10tons |
| Filling Weight | 10000 kg |
| Tank Weight | 5050 kg |
| Thickness of Shell (mm) | 12 mm |
| Thickness of Endplate (mm) | 12 mm |
| Tank Diameter (mm) | 2100 mm |
| External Dimensions (mm) (length x width x height) | 6154*2124*2714mm |
| Material of Tank and Main Pressure Parts | Carbon Steel Q345R |
| Filling Medium | Liquefied Petroleum Gas ( Propane) |
| Design Pressure | 1.77 MPa |
| Corrosion Allowance | 1 mm |
| Medium Density | 420kg/cbm |
| Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | |

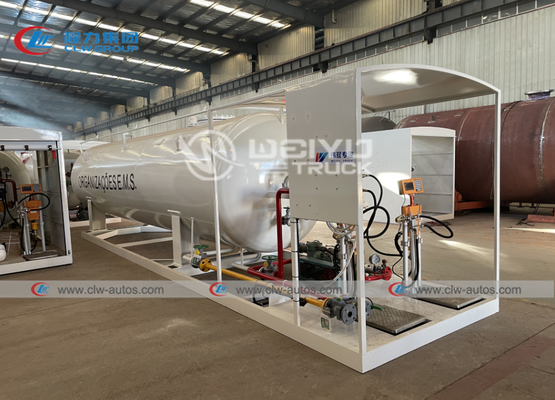

Accessory list for lpg storage tank Filling Station
| Item | Model | Unit | Quantity |
| Pump | YQB15 | Unit | 1 or 2 |
| Electric Motor | YB3-200L | Unit | 1 or 2 |
| Float-operation hydraulic level gauge |
Piece | 1 | |
| Safety valve | DN50 | Piece | 1 |
| Safety reverse valve | DN50 | Piece | 1 |
| Check valve | DN50 | Piece | 2 |
| Stop Valve | DN50 | Piece | 1 |
| DN32 | Piece | 1 | |
| DN25 | Piece | 4 | |
| DN20 | Piece | 2 | |
| DN15 | Piece | 2 | |
| Flexible Hose | L=4M DN50/25 | Set | 1 |
| Shock-proof pipe | L=500mm DN50 | Piece | 1 |
| Filling Gun hose | L=2M | Set | 3 |
| Elbow Cap | DN65 | Piece | 2 |
| DN50 | Piece | 10 | |
| Flange | 2.5MPaDN65 | Piece | 1 |
| 2.5MPaDN50 | Piece | 10 | |
| 2.5MPaDN32 | Piece | 1 | |
| 2.5MPaDN25 | Piece | 8 | |
| 2.5MPaDN15 | Piece | 10 | |
| Metal gasket | DN65 | Piece | 5 |
| DN50 | Piece | 10 | |
| DN32 | Piece | 2 | |
| DN25 | Piece | 10 | |
| DN20 | Piece | 2 | |
| DN15 | Piece | 30 | |
| 8.8 degree bolt | 16*70 | Set | 100 |
| 12*55 | Set | 100 | |

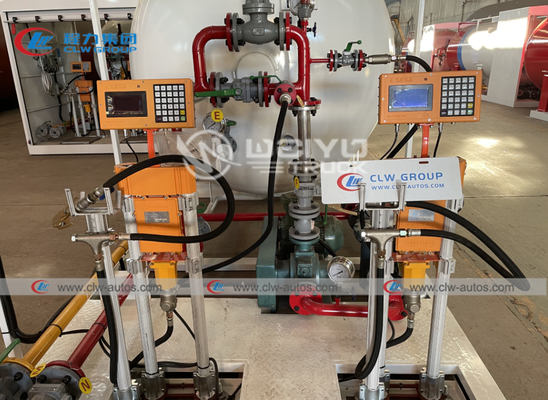

| Dispenser or filling scale | Single nozzle/double nozzle | Unit | 1 or 2 |
| Base Plate | Set | 1 | |
| Gas Leak Detector | Unit | 1 | |
| Water Sprinkler System | Manual Operation | Set | 1 |
Our advantages:
1. Fixed-point procurement of raw material manufacturer
2. Strictly inspection for incoming material
3. Vigorous production process
4. Nondestructive examination / 100% X-ray testing
5. Water pressure and air tightness testing
6. Asme certification: We are qualified to provide asme standard pressure vessel products, if customer needs.
Accessories: LPG dispenser , LPG pump, LPG cylinder filling scales, Safety valve, magnetic flap liquid level gauge, pressure gauge, thermometer, cut-off valves, Gas leak detector, Explosion-proof lights,other pipes etc.
LPG cylinder filling station producing:
cutting--planing--shearing--bending--rolling--walding--sanding--X ray testing--heat treating--sand blasting--painting--hydraulic test
Sales Service
① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tanker, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Any interests you can feel to contact us for details. Many Thanks.
Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.
Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes. The biggest size tank we ever provided is 200m3 high pressure LPG storage tank
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
