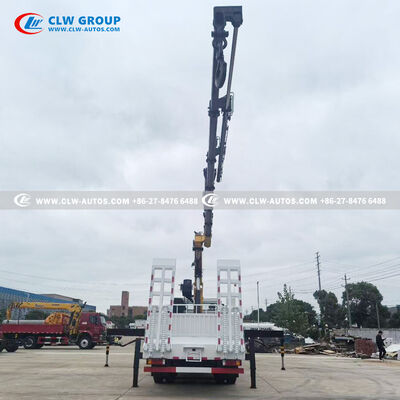

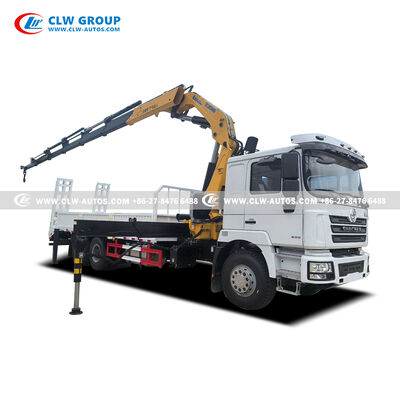

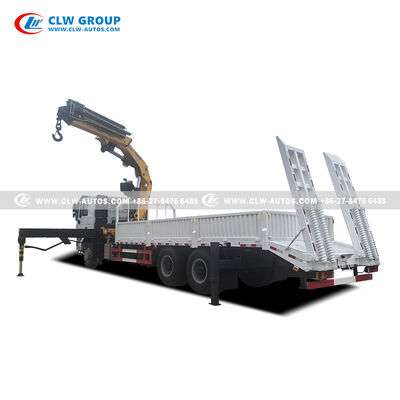

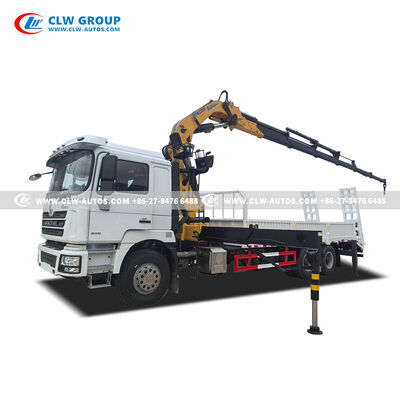

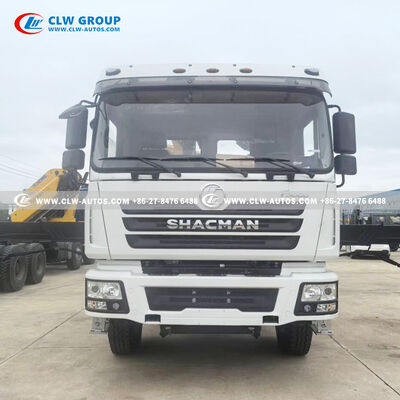

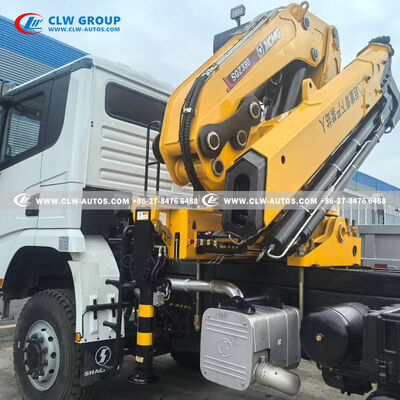

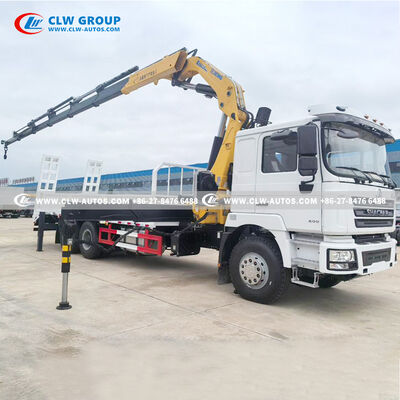

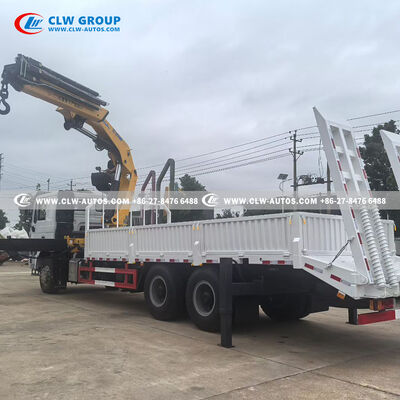

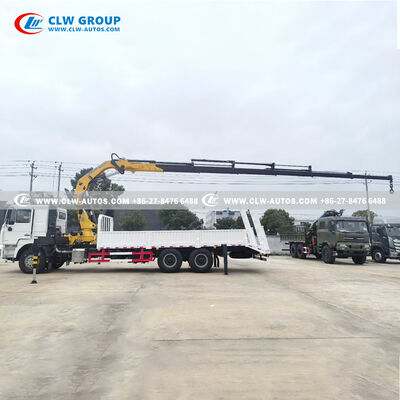

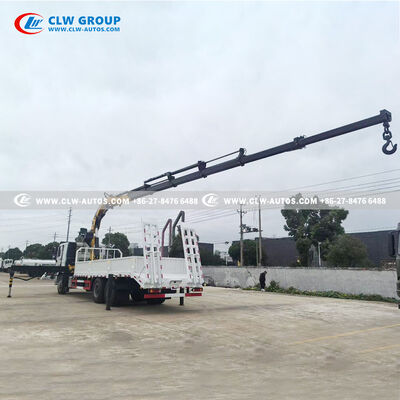

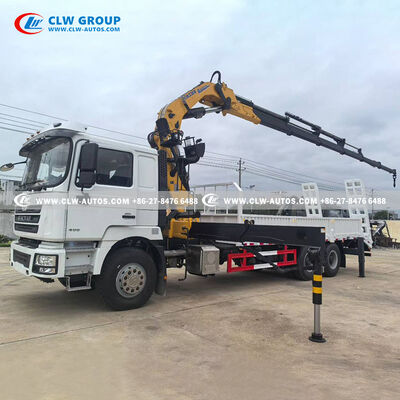

16-Ton Knuckle Boom Truck Mounted Crane with 360° Continuous Rotation and Lightweight High-Strength Structure

The 16-Ton Knuckle Boom Truck Mounted Crane is a professional-grade articulating crane designed for businesses requiring reliable heavy lifting capability on their commercial vehicles. Developed using advanced analysis and design techniques, this crane features a lightweight high-strength structure that enables efficient load movement while maintaining durability for demanding work sites.

The square-shaped legs provide solid support and protect the hydraulic cylinder during lifting operations. The link rod system and optimized boom elevation angle significantly enhance lifting capacity, exceeding 6.3 tons for practical daily operations. The rack cylinder design allows efficient use of installation space, reducing the truck's center of gravity for easier, more stable operation.

The symmetrical central design provides better resistance against bending, ensuring structural integrity under maximum loads. With 360° continuous rotation, operators can position loads precisely without constant repositioning. The hydraulic system delivers 63 L/min flow at 30 MPa pressure, powered by a recommended 37kW source, with a 240L oil tank for extended operation.

• 16,000kg Max Lifting Capacity: 40 ton*m lifting moment for stable heavy load handling
• 360° Continuous Rotation: Full operational coverage around the vehicle
• Lightweight High-Strength Structure: Efficient load movement with reduced dead weight
• Square-Shaped Outrigger Legs: Solid support and hydraulic cylinder protection
• Link Rod System & Optimized Boom Elevation: Enhanced lifting capacity exceeds 6.3 tons
• Rack Cylinder Design: Efficient space use, lower center of gravity, easier operation
• Symmetrical Central Design: Better bending resistance for reliable performance
• Hydraulic System: 63 L/min flow, 30 MPa pressure, 240L oil tank, 37kW recommended power
• Installation Space: 1,500 mm
• Self-Weight: 5,000 kg

• Construction material handling and equipment positioning
• Logistics and warehouse loading/unloading
• Industrial facility maintenance and equipment installation
• Heavy equipment transport and positioning
• Scrap yard and recycling material handling
• Utility and infrastructure projects
