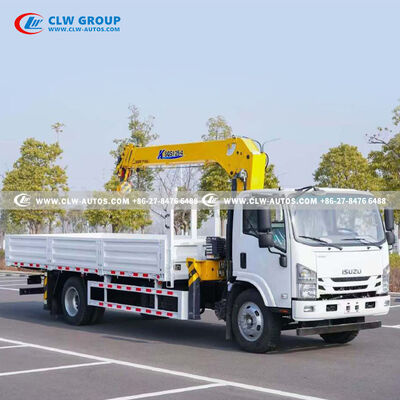

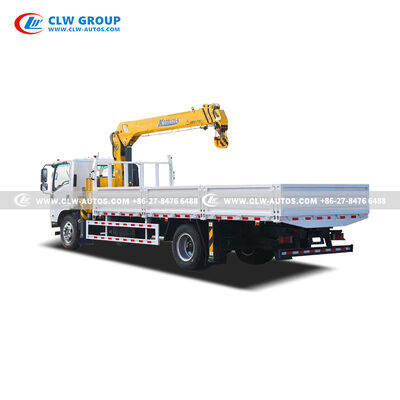

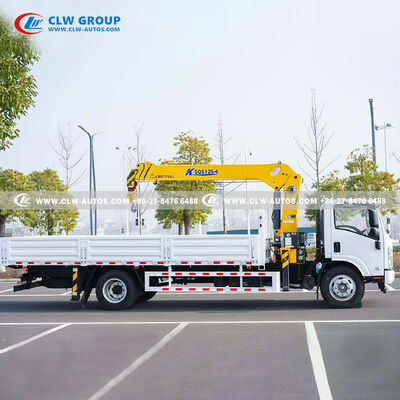

ISUZU 4x2 5-Ton Crane Truck with XCMG 4-Section Boom and 360° Rotation for Construction & Logistics

Name: ISUZU 4x2 5-Ton Crane Truck with XCMG 4-Section Boom and 360° Rotation for Construction & Logistics
Brand: HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Price: 54,740.00 USD
Availability: InStock

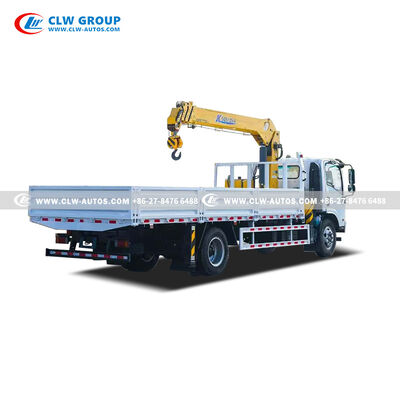

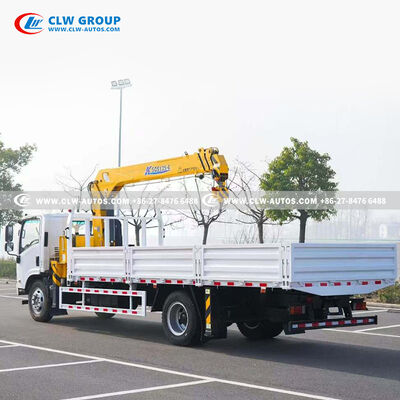

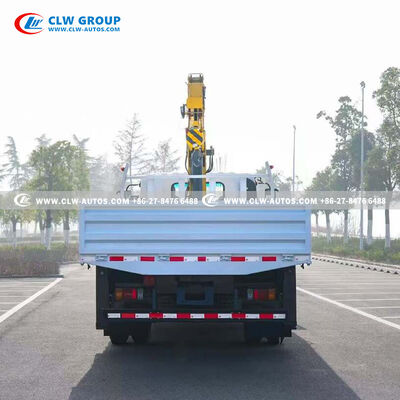

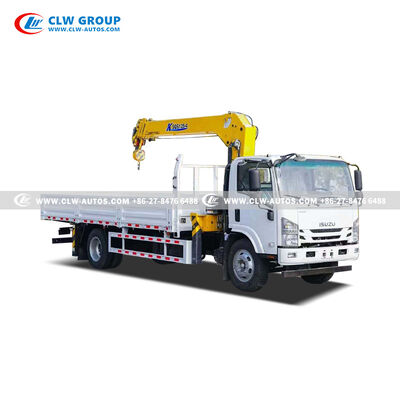

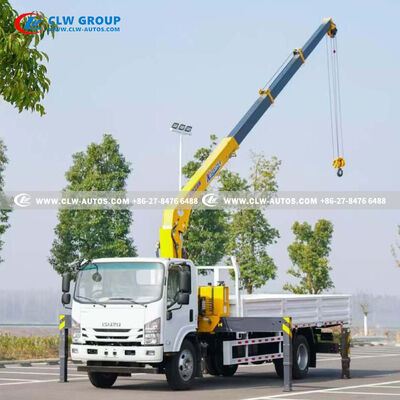

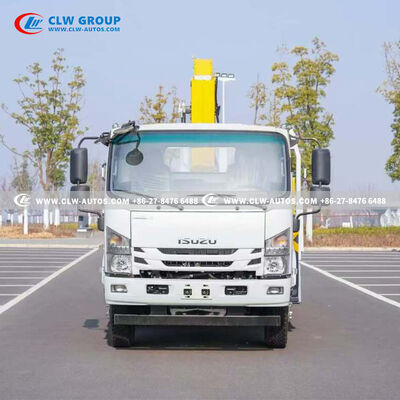

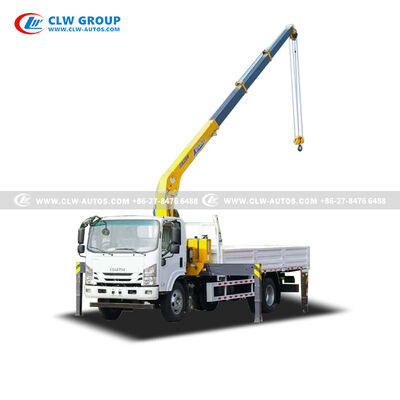

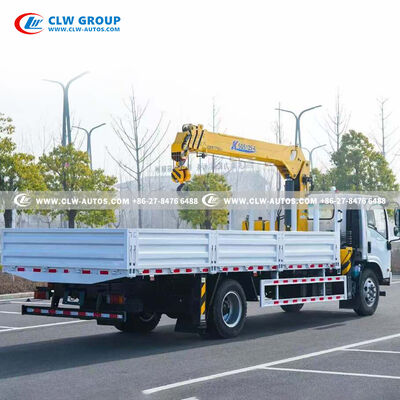

Large Image : ISUZU 4x2 5-Ton Crane Truck with XCMG 4-Section Boom and 360° Rotation for Construction & Logistics

Product Details:

Contact Now

Detailed Product Description

Engine Power:	190HP	Engine Type:	ISUZU 4HK1-TCG61, Euro VI
Transmission:	MLD 6-speed Manual (6F+1R)	Max Lifting Capacity:	5,000 Kg
Max Lifting Height:	12 - 14.2 M	Max Working Radius:	11 - 12.4 M
Rotation:	360° Continuous	Outrigger Span:	Up To 5,500 Mm
Cargo Body Dimensions:	5,000 × 2,300 × 550 Mm	Tire Configuration:	235/75R17.5 / 11.00R20 (6+1)

ISUZU 4x2 5-Ton Crane Truck – XCMG 4-Section Boom Lifting & Transport for Construction & Logistics

Product Overview

The ISUZU 5-Ton Crane Truck is a versatile integrated lifting and transport vehicle designed for construction sites, logistics operations, municipal engineering, and emergency rescue. Built on the reliable ISUZU 4x2 heavy-duty chassis with left-hand drive, this vehicle combines powerful performance with exceptional lifting capabilities.

Key Features

ISUZU 4x2 Chassis: GIGA/NPR/ELF series, LHD, 4,175-4,475mm wheelbase, GVW 11,000-18,000kg
ISUZU 190HP Euro VI Engine: 4HK1-TCG61, 190HP, 5,193ml, 6-cylinder, Euro VI compliant
XCMG SQS125-4 5-Ton Crane: 4-section telescopic straight boom, 5,000kg capacity, 12.5 t*m moment
4 Hydraulic Outriggers: 5,500mm span for stable lifting operations
Cargo Body: 5,000×2,300×550mm, Q235 steel construction with removable tailgate
Optional Wireless Remote Control: Enhanced operational safety from distance

Applications

Construction material handling and equipment positioning
Logistics and warehouse cargo loading/unloading
Municipal engineering and utility maintenance
Emergency rescue and recovery operations
Industrial plant maintenance and installation

Technical Specifications

Chassis	ISUZU GIGA / NPR / ELF 4x2 LHD
Wheelbase	4,175 - 4,475 mm
GVW	11,000 - 18,000 kg
Engine	ISUZU 4HK1-TCG61, 190 HP, 5,193 ml, Euro VI
Transmission	MLD 6-speed manual (6F+1R)
Tires	235/75R17.5 / 11.00R20 (6+1)
Crane	XCMG SQS125-4 (5-ton, 4-section)
Max Lifting Capacity	5,000 kg
Max Lifting Height	12 - 14.2 m
Max Working Radius	11 - 12.4 m
Rotation	360° continuous
Outrigger Span	Up to 5,500 mm
Cargo Body	5,000 × 2,300 × 550 mm
Optional	Wireless remote control
