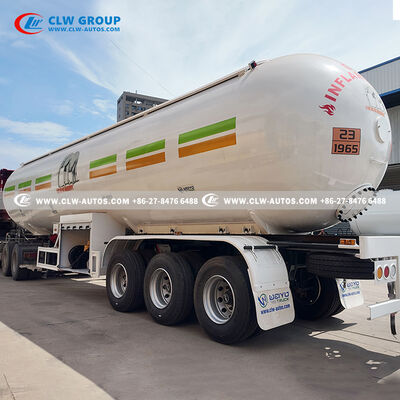

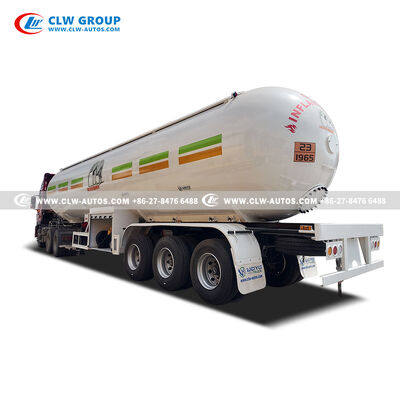

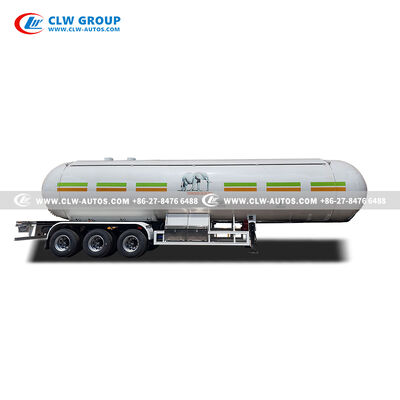

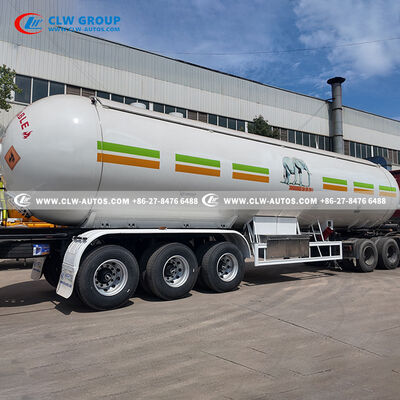

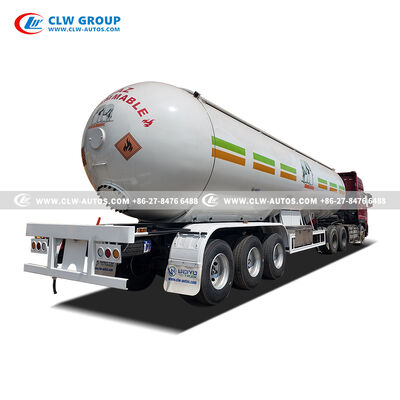

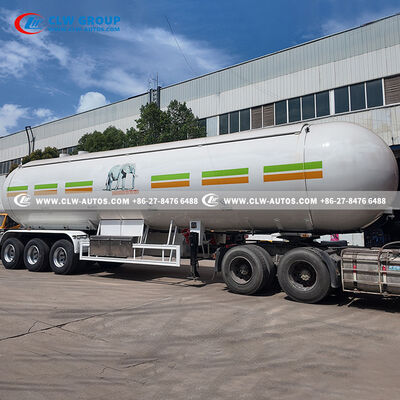

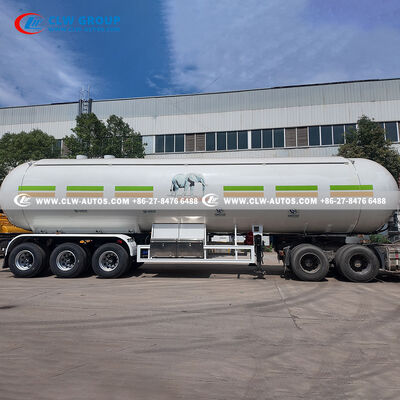

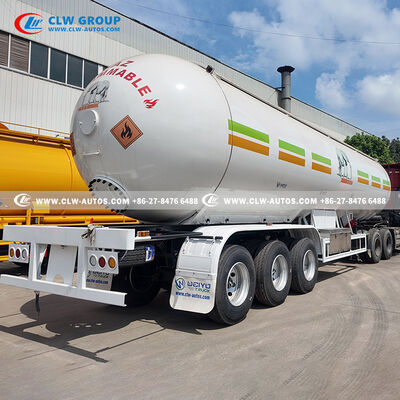

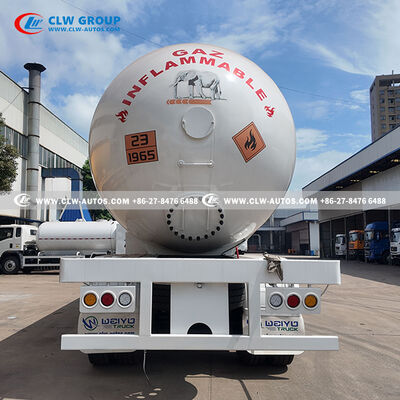

Tri-Axle 60m³ LPG Tanker Trailer with Q345R Steel Tank and USA CORKEN Pump for Bulk Gas Distribution

The Tri-Axle 60m³ LPG Tanker Trailer is engineered for robust performance in demanding African conditions, providing safe, efficient, and high-volume transportation of Liquefied Petroleum Gas (Propane). Built to stringent international standards with premium components, this 60CBM (30mt) semi-trailer ensures durability, safety, and operational excellence.

The tank is constructed from high-strength Q345R steel with 12mm body and 14mm elliptical heads, featuring a 1mm corrosion allowance and undergoing full furnace heat treatment (600-640°C). Designed for -19°C to +50°C and 1.61 MPa working pressure, it features comprehensive safety systems including 2 safety valves, emergency shut-off handle, and truck emergency brake button.

• 60m³ Q345R Steel Tank: 13,350×2,550×3,995mm, 30mt capacity with 12mm body and 14mm elliptical heads
• Design Pressure & Temperature: 1.61 MPa working pressure, 2.12 MPa hydraulic test, -19°C to +50°C design temperature

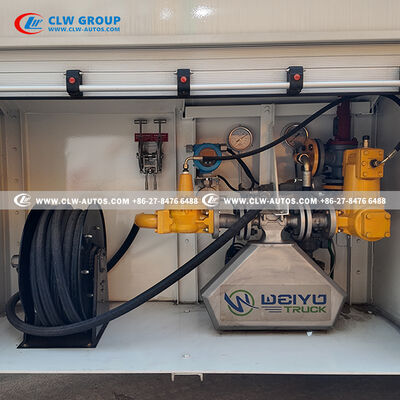

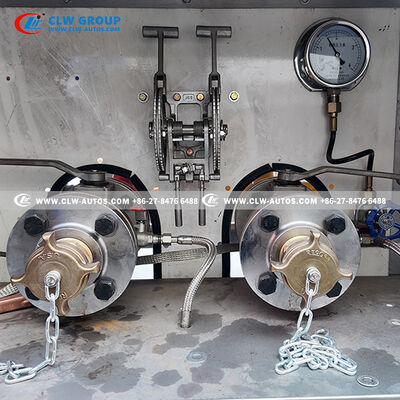

• USA CORKEN LPG Pump & Coriolis Meter: High-performance vane pump with precise Coriolis mass flow meter
• 15m Hose with Rego Gun: 15-meter rubber hose with Rego brand filling gun and vapor/liquid phase connectors
• 3 × 13-ton FUWA Axles: Mechanical leaf spring suspension with 12R22.5 tubeless tires (12 + 1 spare)
• WABCO Braking System: RE 6 relay valve, spring brake chamber, and 45L air tanks
• Safety Equipment: 2 safety valves, emergency shut-off handle, emergency brake button, fire extinguisher holders, and grounding cable
• Monitoring & Accessories: Rochester floating ball level gauge, pressure gauge, thermometer, sun shelter, and DN450 manhole
• Testing: 100% X-ray welding seam detection, hydraulic test, and air leakage test
• Customization: Two coats primer + one coat surface paint with custom color and logo options

• Bulk LPG distribution to gas stations and industrial users
• Propane transport from terminals to storage facilities
• Cooking gas delivery to retail distributors
• Industrial gas supply for factories and processing plants
• Cross-border LPG transportation in African markets
