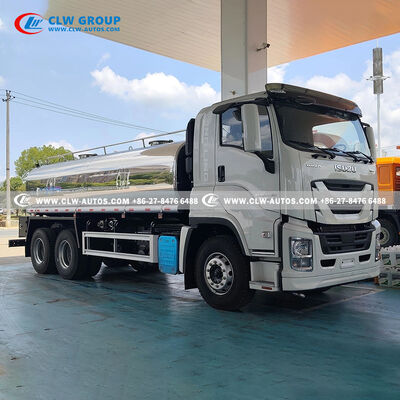

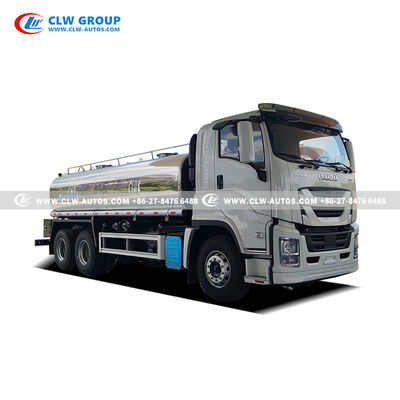

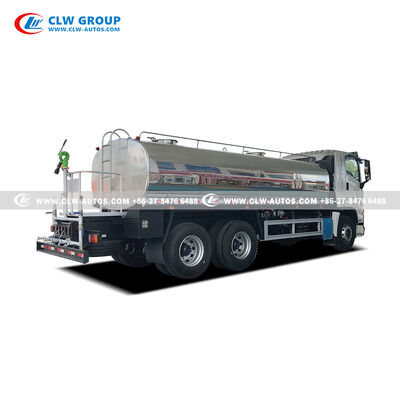

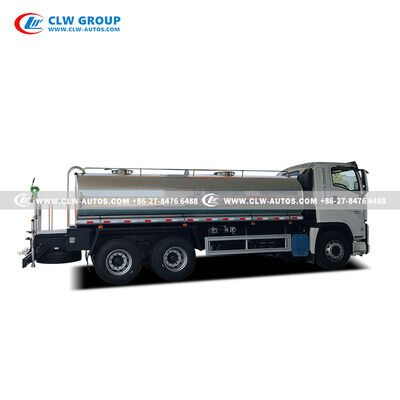

ISUZU 6×4 Stainless Steel Water Tanker Truck with Food-Grade Tank and Dual-Use Sprinkler Functionality

Large Image : ISUZU 6×4 Stainless Steel Water Tanker Truck with Food-Grade Tank and Dual-Use Sprinkler Functionality

Product Details:

Place of Origin:	CHINA
Brand Name:	CLW Group
Model Number:	1suzu

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	30DAYS
Supply Ability:	10pcs/month

Contact Now

Detailed Product Description

Drive Type:	6×4, LHD (RHD Optional)	Overall Dimensions:	9,850 × 2,500 × 2,980 Mm
Gross Vehicle Weight:	35,000 Kg	Curb Weight:	12,200 Kg
Payload Weight:	Approx. 22,800 Kg	Engine Power:	350 HP (257 KW)
Tank Capacity:	20,000 L (20 M³)	Tank Material:	304-2B Food-grade Stainless Steel
Flow Rate:	60 M³/h	Lift / Head:	110 M
Highlight:	Food-grade stainless steel Water Tanker Truck , 6×4 ISUZU chassis Potable Water Truck , Dual-use functionality Sprinkler Truck

ISUZU Stainless Steel Water Tanker Truck Potable Water Transport & Multi Purpose Sprinkler

Product Overview

Built on a robust ISUZU 6*4 heavy-duty chassis, this premium stainless steel water truck is engineered for dual operation: safe, hygienic transportation of drinking/potable water and professional road sprinkling, dust suppression, and site watering. The mirror-finish stainless-steel tank ensures corrosion resistance, easy cleaning, and full compliance with potable-water hygiene standards.

Key Features

Food-grade stainless steel tank — polished interior/exterior for clean, rust-free water storage and drinking-water delivery
6*4 ISUZU chassis — strong load capacity, stable 3-axle configuration, ideal for urban and off-road conditions
Dual-use functionality — rear sprinkler/spray bar, side/curtain spray, and high-level water gun for street cleaning, dust control, and greenery irrigation; dedicated valves and piping also support potable water unloading

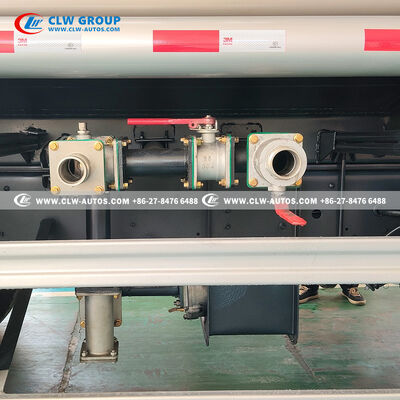

Heavy-duty pump, valves & manifolds — visible brass/stainless fittings, multiple inlet/outlet ports, and reliable flow control for fast filling and discharging
Platform, access ladder & top walkway — safe roof access with safety rails, manhole covers, and air/vapor vents

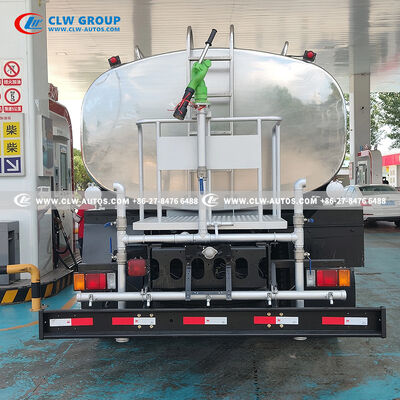

Rear spray system & lighting — equipped with rear sprinkler bar, reflectors, and work lights for low-visibility operation
Durable under-frame protection — reinforced rear bumper with 3M reflective markings, tool/storage compartments, and neatly routed pipelines

Chassis / Vehicle Parameters

Parameter	Specification
Drive Type	6*4, LHD (RHD optional)
*Overall Dimensions (LWH)*	9,850 * 2,500 * 2,980 mm
Gross Vehicle Weight (GVW)	35,000 kg
Curb Weight	12,200 kg
Payload / Loading Weight	Approx. 22,800 kg
Wheelbase	4,350 + 1,370 mm
Axle Load	7,000 / 18,000 kg (dual rear)
Max. Speed	90 km/h
Engine Model	ISUZU 6UZ1-TCG51 (Qingling)
Engine Power	350 HP (257 kW)
Displacement	9,839 ml
Max. Torque	1,422 N*m
Fuel Type	Diesel
Emission Standard	Euro 5 / Euro 6 (market dependent)
Transmission	Manual, 12 forward + 2 reverse
Front Axle	7 Ton
Rear Axle	26 Ton
Suspension	Semi-elliptic leaf spring, 7 / 10
Cabin	GIGA luxury single cabin, 3 seats + sleeper, A/C
Brake System	Air brake, ABS
Tires	10 + 1 (spare), 12R22.5
Steering	Power-assisted, LHD / RHD

Upper Structure / Tank & Sprinkler Parameters

Parameter	Specification
Tank Capacity	20,000 L (20 m³)
Tank Shape	Elliptical (oval) horizontal cylinder
Tank Material	304-2B food-grade stainless steel
Wall Thickness	4-5 mm
Internal Treatment	Anti-corrosion, polished (no toxic coating)
Wave Baffles	Yes, anti-slosh partitions
Manhole	1 * DN460 mm stainless steel (lockable)
Compartments	2 (optional), independently sealable
Water Pump	Stainless steel self-priming centrifugal pump
Flow Rate	60 m³/h
Lift / Head	110 m
Self-Priming Height	6.5 m
Pump Drive	PTO from gearbox
Piping	Full stainless steel, DN150 inlet, drain valves
Rear Spray Nozzles	2 pcs, manual / auto controlled
Side Spray Nozzles	2 pcs
Front / High-Pressure Gun	1 pc, adjustable
Functions	Road sprinkling, dust suppression, greenery irrigation, emergency firefighting, potable water delivery
Rear Platform & Ladder	Stainless steel, with safety handrails
Water Level Indicator	Yes
Fire Hydrant Joint	Yes
Reflective Markings	3M red-white tape on tank & frame
Tool / Equipment Box	Yes, lockable

Product Gallery

Applications

Potable water delivery to communities/sites, municipal road sprinkling, dust suppression, construction-site watering, landscape/greenery irrigation, and emergency water supply.
